Circuit Identification

For circuit identification, see Fig 1 - Fig 2.

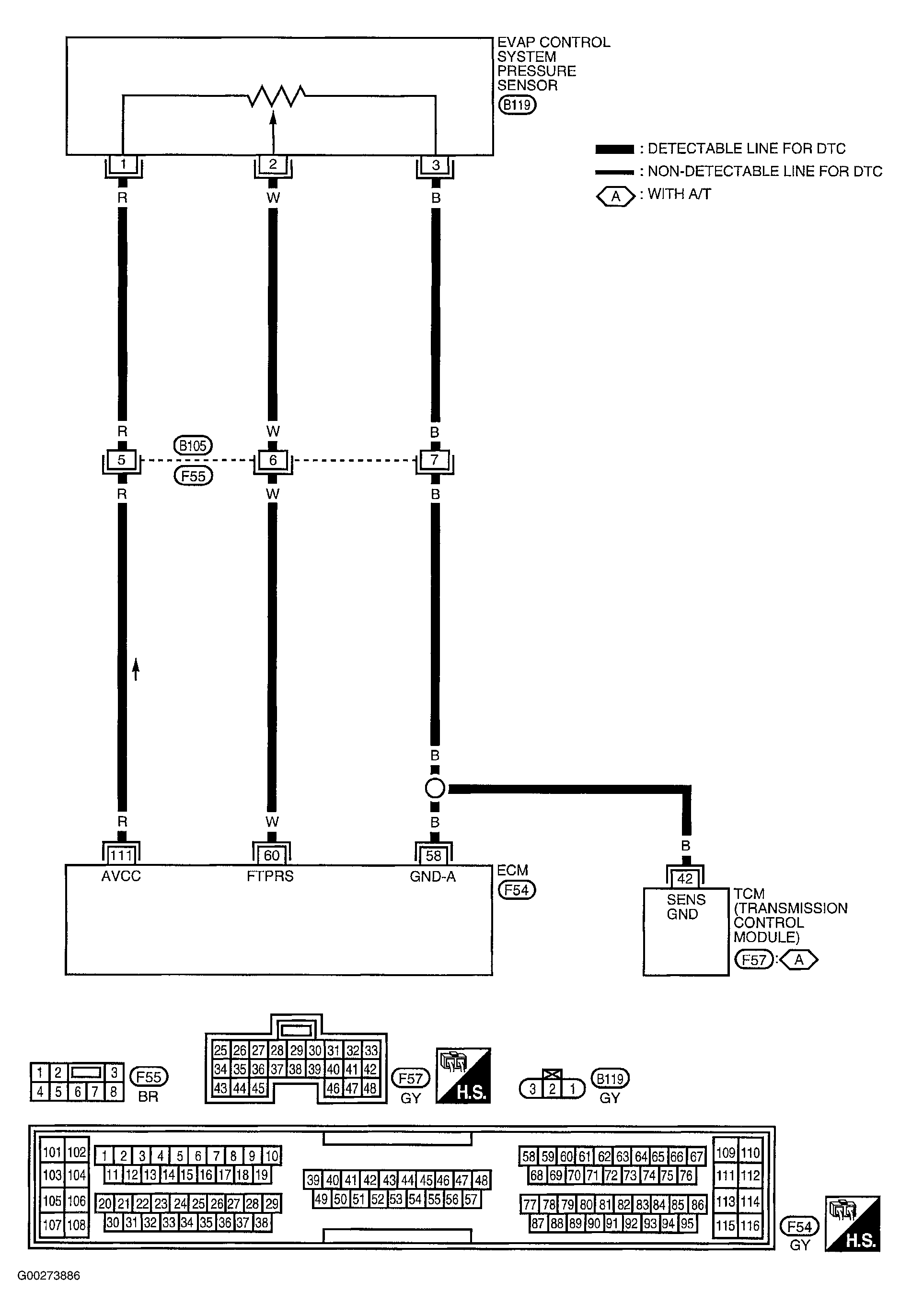

Fig 1: Circuit Identification For EVAP Control System Pressure Sensor (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

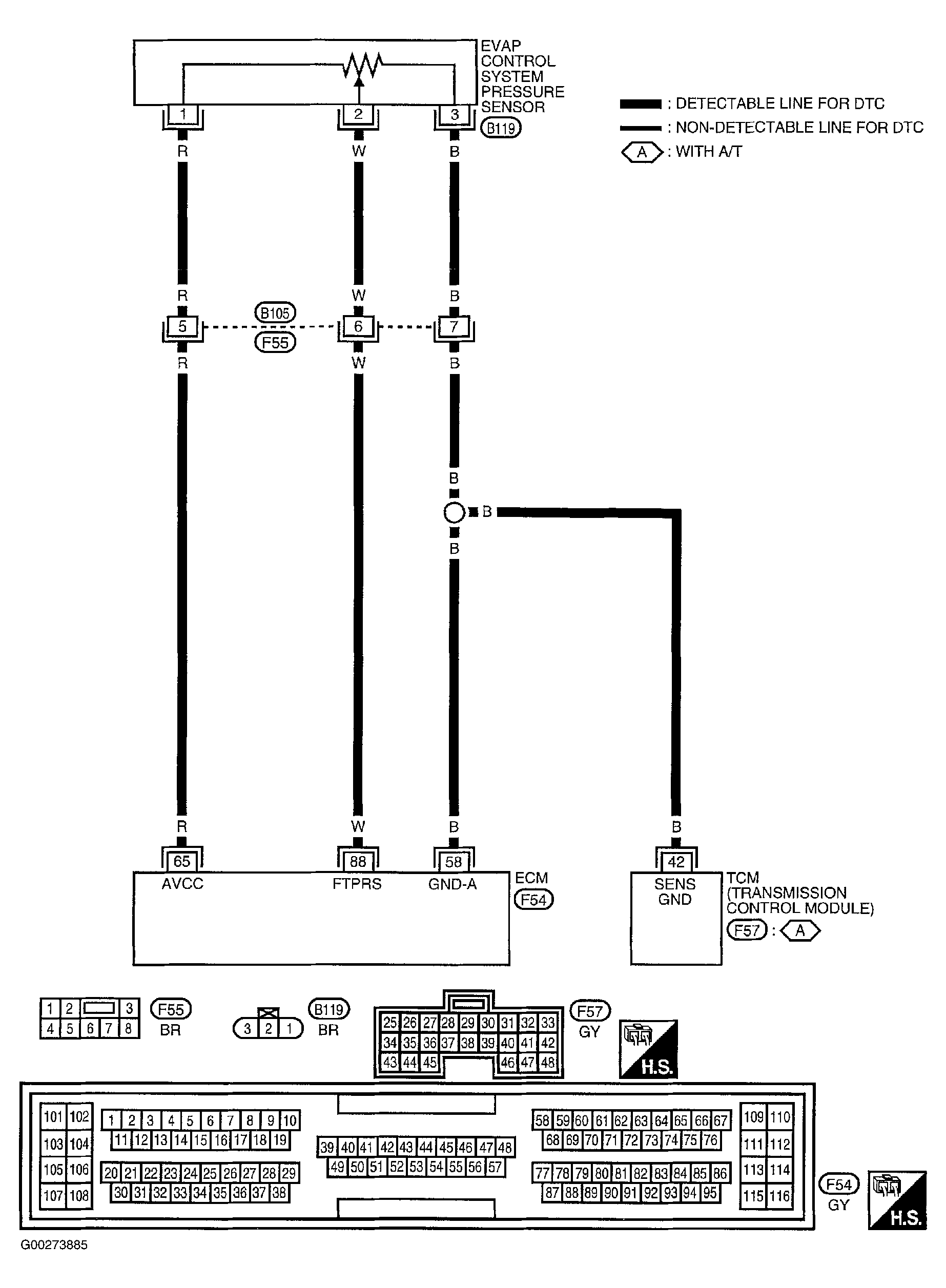

Fig 2: Circuit Identification For EVAP Control System Pressure Sensor (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
