Overall Function Check

NOTE: Use this procedure to check the overall function of the fuel level sensor. During this check, a 1st trip DTC might not be confirmed.

NOTE: For fuel pressure release, see FUEL PRESSURE RELEASE in BASIC DIAGNOSTIC PROCEDURES article and for DTC P0460 component inspection, see COMPONENT INSPECTION under DTC P0460: FUEL LEVEL SENSOR.

For overall function check, see Fig 1.

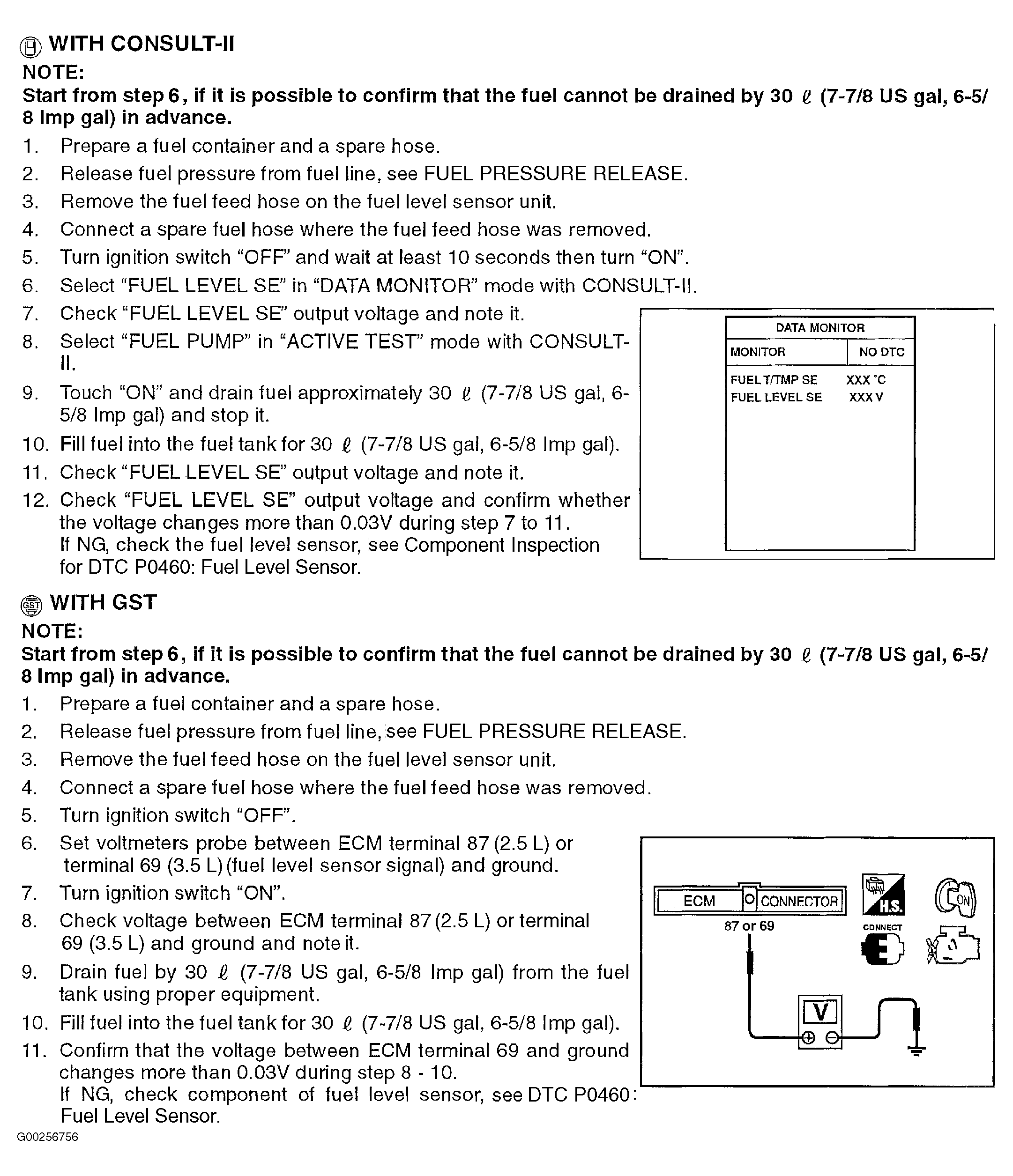

Fig 1: Identifying Overall Function Check For DTC P0461: Fuel Level Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
