DTC Confirmation Test

NOTE: For diagnostic procedure, see DIAGNOSTIC PROCEDURE and for basic inspection, see BASIC INSPECTION in ON-VEHICLE ADJUSTMENTS article.

For DTC confirmation test, see Fig 1.

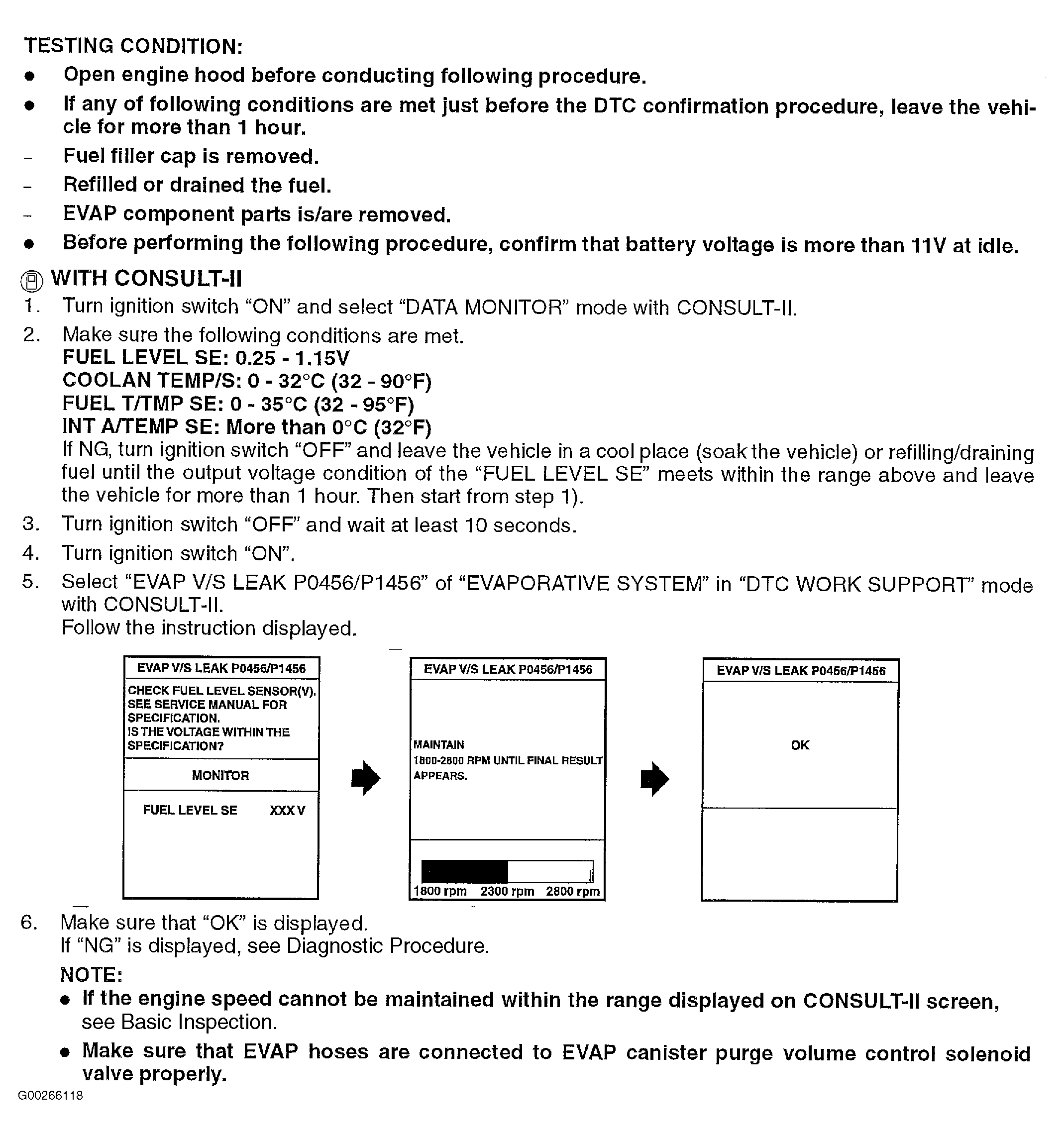

Fig 1: Identifying DTC Confirmation Test For DTC P1456: EVAP Control System

Courtesy of NISSAN MOTOR CO., U.S.A.
