Data Monitor (SPEC) Mode

For data monitor (Spec) mode, see Fig 1.

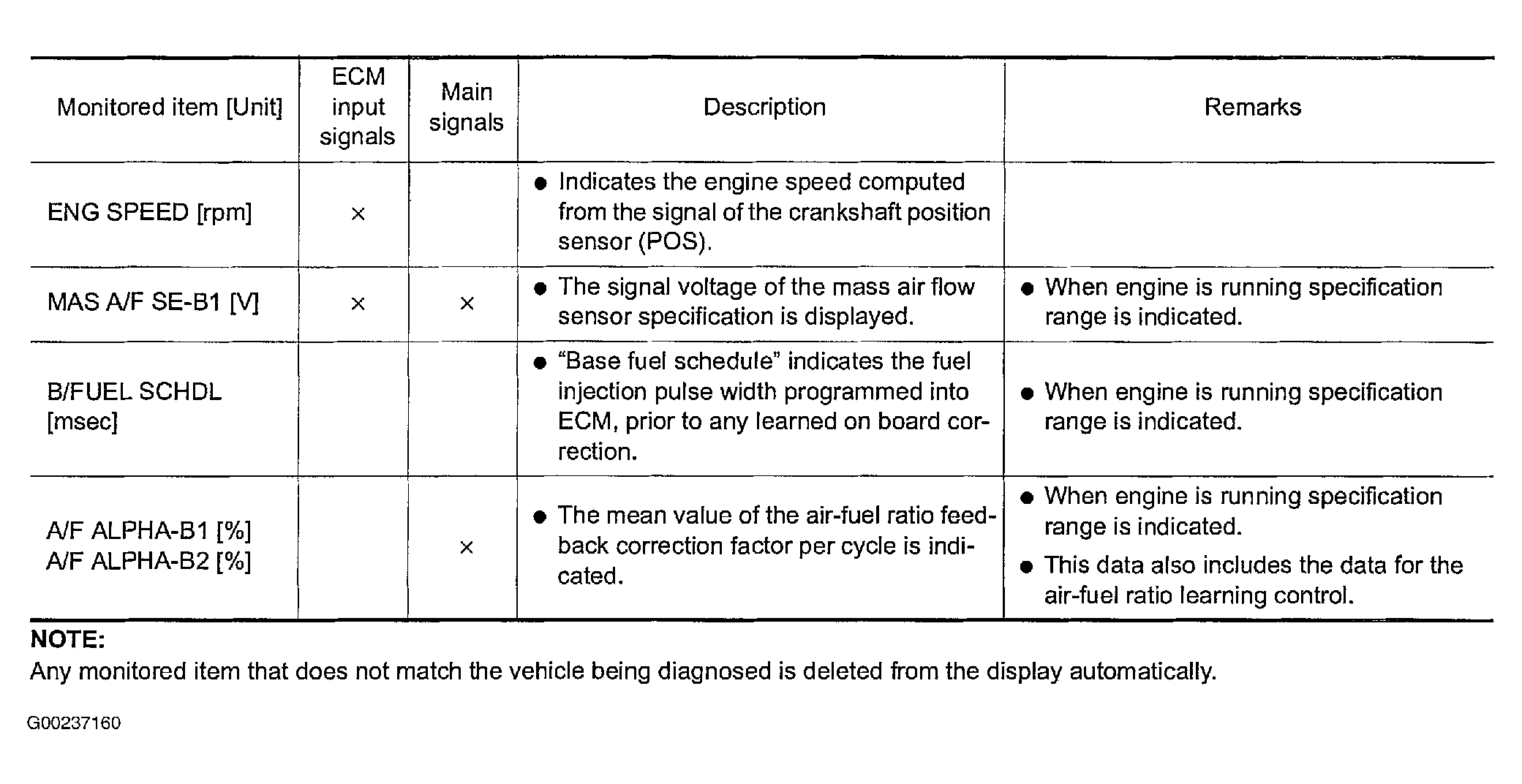

Fig 1: Identifying Data Monitor (SPEC) Mode

G00237160

Courtesy of NISSAN MOTOR CO., U.S.A.
