GST Inspection Procedure
- Turn ignition switch OFF.

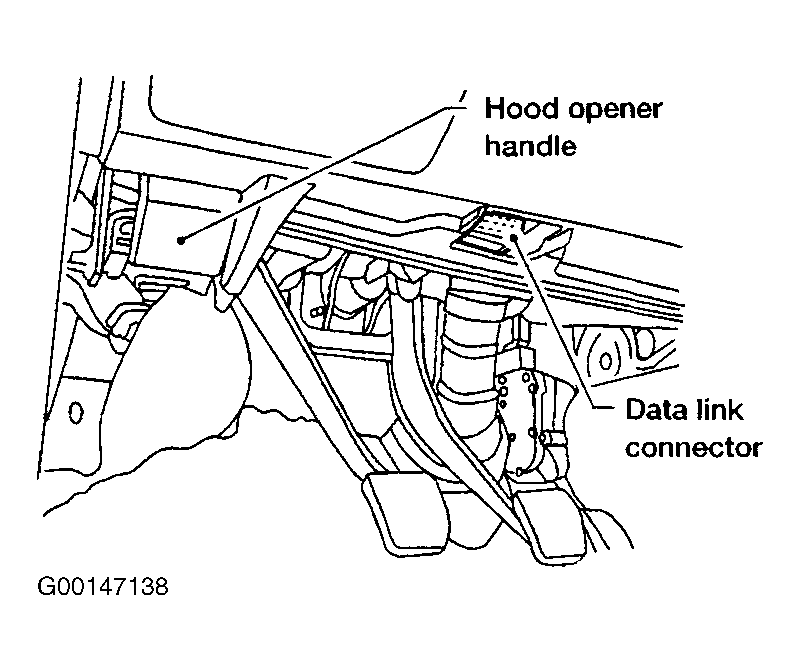

- Connect GST to data link connector, which is located under left dash panel near the fuse box cover. See Figure.
- Turn ignition switch ON.
- Enter the program according to instruction on the screen or in the operation manual.

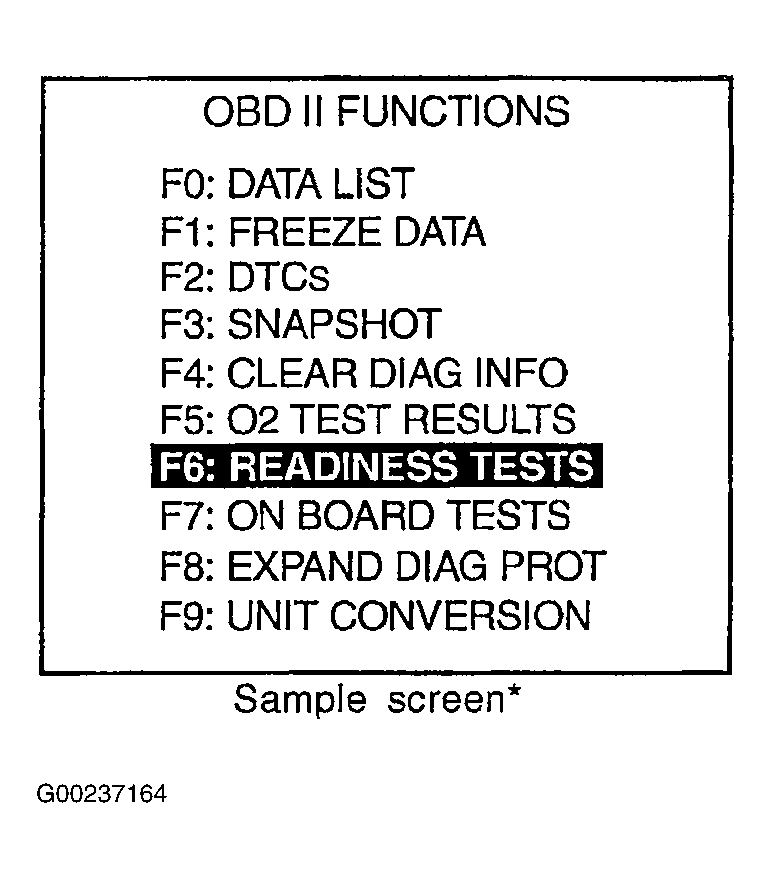

- Perform each diagnostic mode according to each service procedure. See Fig 1. For further information, see the GST operation manual of the tool maker.
