Generic Scan Tool (GST): Notes

An OBD-II scan tool complying with SAE J1978 has the following functions shown. See Fig 1. For further information, see the appropriate operation manual supplied by scan tool manufacturer.

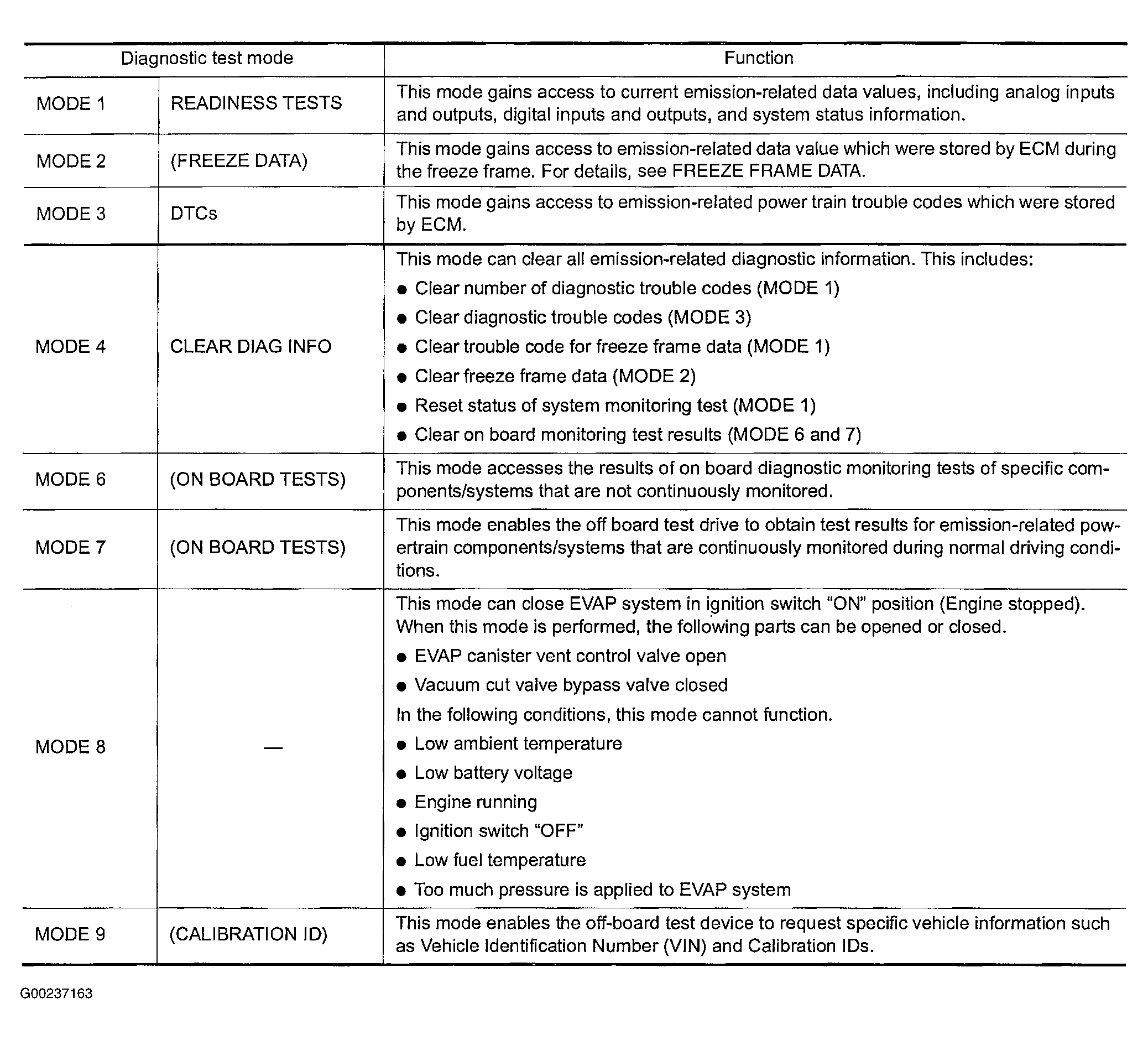

Fig 1: Identifying Modes For GST

Courtesy of NISSAN MOTOR CO., U.S.A.
