Torque Specifications: VG33E
TORQUE SPECIFICATIONS (VG33E)
| Application |
Ft. Lbs. (N.m) |
| Distributor |
11 (16) |
| EGR Control Valve |
13.5 (18.5) |
| EGRC Solenoid Valve |
17 (23) |
| EGR Tube To EGR Control Valve |
32 (44) |
| Engine Coolant Temperature Sensor |
18 (25) |
| Fuel Rail Bolt |
10 (14) |
| Fuel Tank Mounting Bolts |
32 (42) |

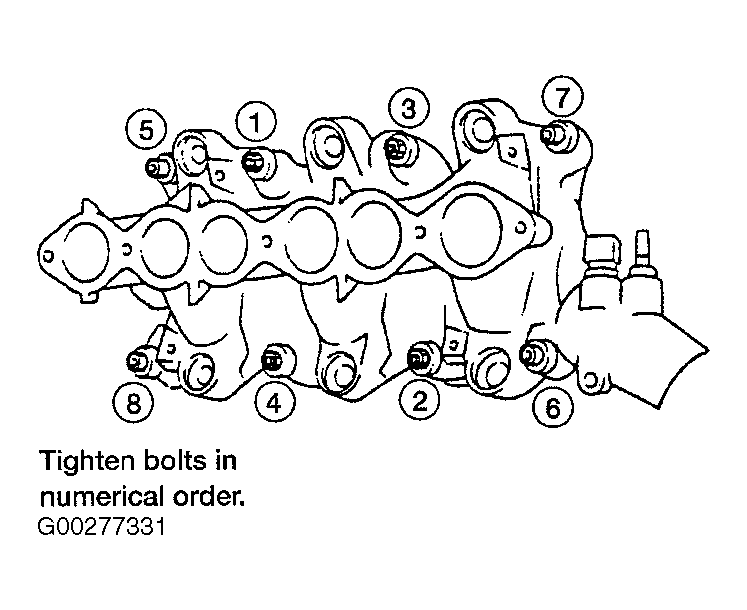

| Intake Manifold Bolts |
|
| Intake Manifold Collector To Intake Manifold |
14.5 (20) |
| Oil Pressure Switch |
10.5 (14.5) |
| Oxygen Sensor |
37 (50) |
| Spark Plugs |
18 (24) |
| Throttle Body |
|
| INCH Lbs. (N.m) |
| EVAP Canister Vent Control Valve |
70 (8) |
| Fuel Injector Retainer Bolt |
30 (3.4) |
| Fuel Pressure Regulator |
29.5 (3.3) |
| Fuel Pump Bolts |
19 (2.25) |
| Fuel Level Sensor Bolts |
19 (2.25) |
