ASCD Brake Switch And Stop Lamp Switch

WARNING: This page is about a different car, the 2004 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

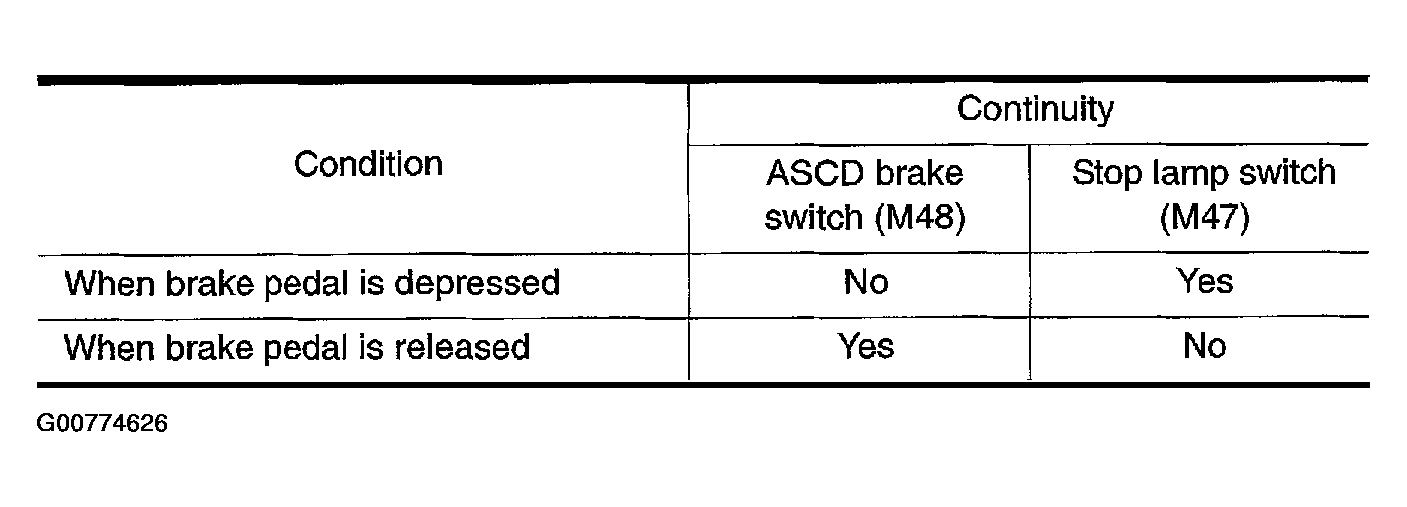

Fig 1: ASCD Brake Switch & Stop Lamp Switch Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Check brake pedal adjustment after checking each switch. Refer to ADJUSTMENTS .

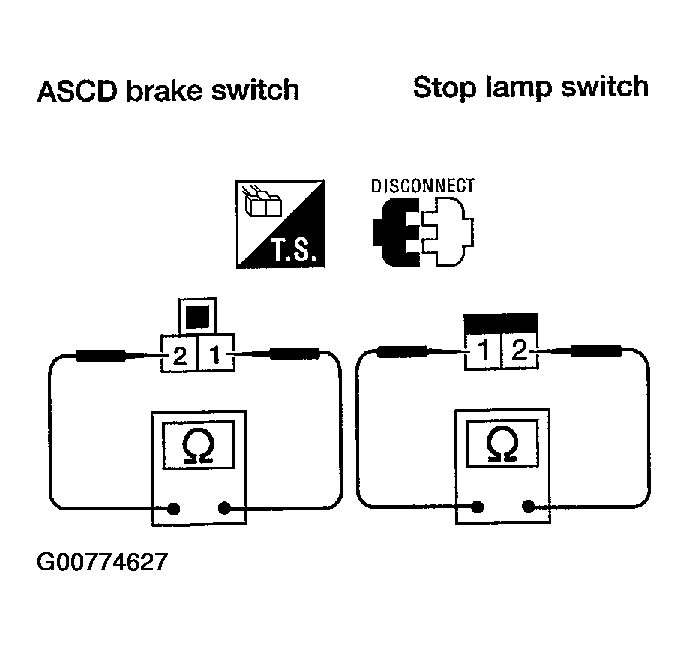

Fig 2: Inspecting ASCD Brake Switch & Stop Lamp Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
