Removal & Installation

The ECM is located behind the instrument lower cover. Remove instrument lower cover. Remove ECM harness protector. See Fig 1. Remove ECM. To install, reverse removal procedure.

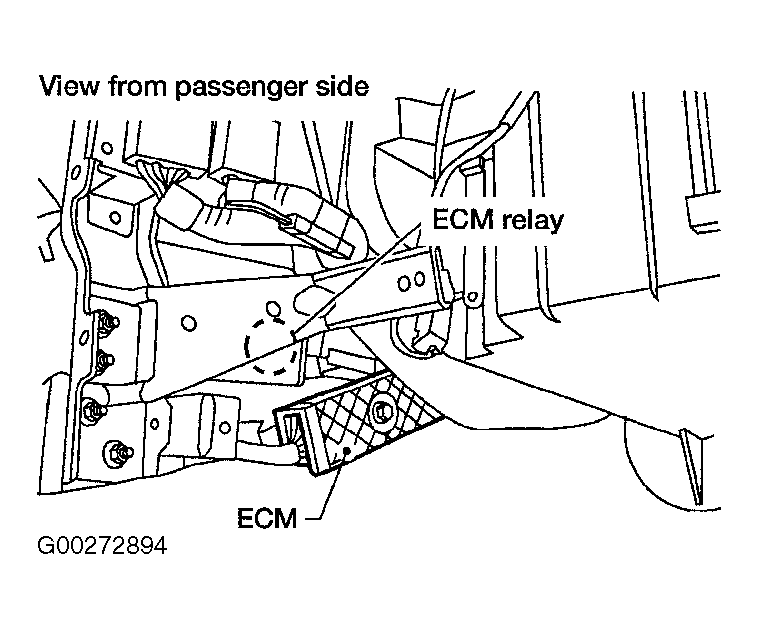

Fig 1: Locating ECM

Courtesy of NISSAN MOTOR CO., U.S.A.
