Component Locations

COMPONENT LOCATIONS

Application Location
Frontier & Xterra
ASCD Brake Switch On Brake Pedal, See Fig 1
ASCD Clutch Switch On Clutch Pedal, See Fig 2
ASCD Control Unit Behind Left Side Of Dash, See Fig 3
ASCD Motor Actuator (VG33E & VG33ER) Under Hood, Right Rear Of Engine Compartment, See Fig 4
Fuse Block Junction Block (J/B) Behind Left Side Of Dash, See Fig 5
Vehicle Speed Sensor (VG33E & VG33ER) In Transmission, See Fig 6
Frontier
ASCD Motor Actuator (KA24DE) Under Hood, Left Rear Of Engine Compartment, See Fig 7
Set Indicator Lamp In Instrument Cluster, See Fig 8
Vehicle Speed Sensor (KA24DE) In Transmission, See Fig 9
Xterra
ASCD Actuator (KA24DE) Under Hood, Front Left Of Engine Compartment, See Fig 10
CRUISE Indicator Lamp In Instrument Cluster, See Fig 11
Fig 1: Locating ASCD Brake Switch
G00195057Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Locating ASCD Clutch Switch
G00195058Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Locating ASCD Control Unit
G00195059Courtesy of NISSAN MOTOR CO., U.S.A.

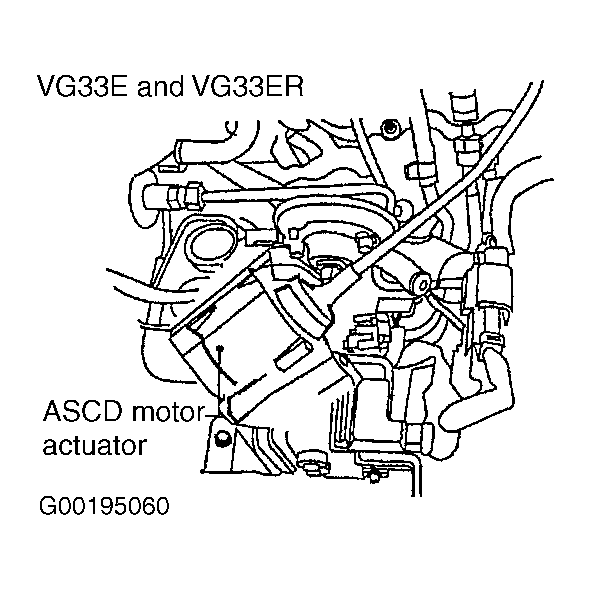

Fig 4: Locating ASCD Motor Actuator (VG33E & VG33ER)
G00195060Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Identifying Fuse Block (J/B)
G00195061Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: Locating Vehicle Speed Sensor (VG33E & VG33ER)
G00195062Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 7: Locating ASCD Motor Actuator (KA24DE)
G00195063Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 8: Locating "SET" Indicator Lamp
G00195064Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 9: Locating Vehicle Speed Sensor (KA24DE)
G00195065Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 10: Locating Automatic Speed Control Device Actuator (KA24DE)
G00195067Courtesy of NISSAN MOTOR CO., U.S.A.

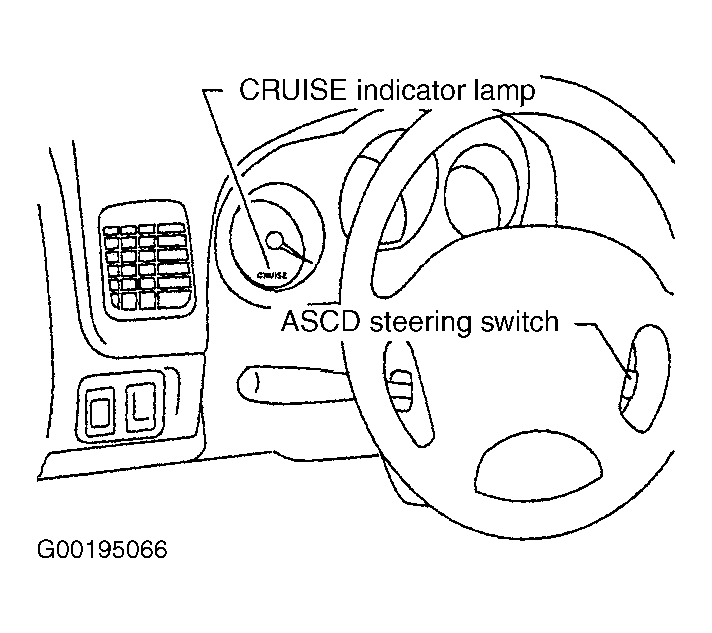

Fig 11: Locating "CRUISE" Indicator Lamp
G00195066Courtesy of NISSAN MOTOR CO., U.S.A.
