ASCD Brake/Stop Lamp Switch Circuit Check

NOTE: For ASCD brake switch, see ASCD BRAKE SWITCH & STOP LAMP SWITCH , for Park/Neutral position switch (A/T), see PARK/NEUTRAL POSITION SWITCH (A/T) , for Park/Neutral position relay (A/T), see ASCD RELAY (A/T) and for ASCD clutch switch (M/T), see ASCD CLUTCH SWITCH (M/T) .

For ASCD brake/stop lamp switch circuit check, see Fig 1 and Fig 2 .

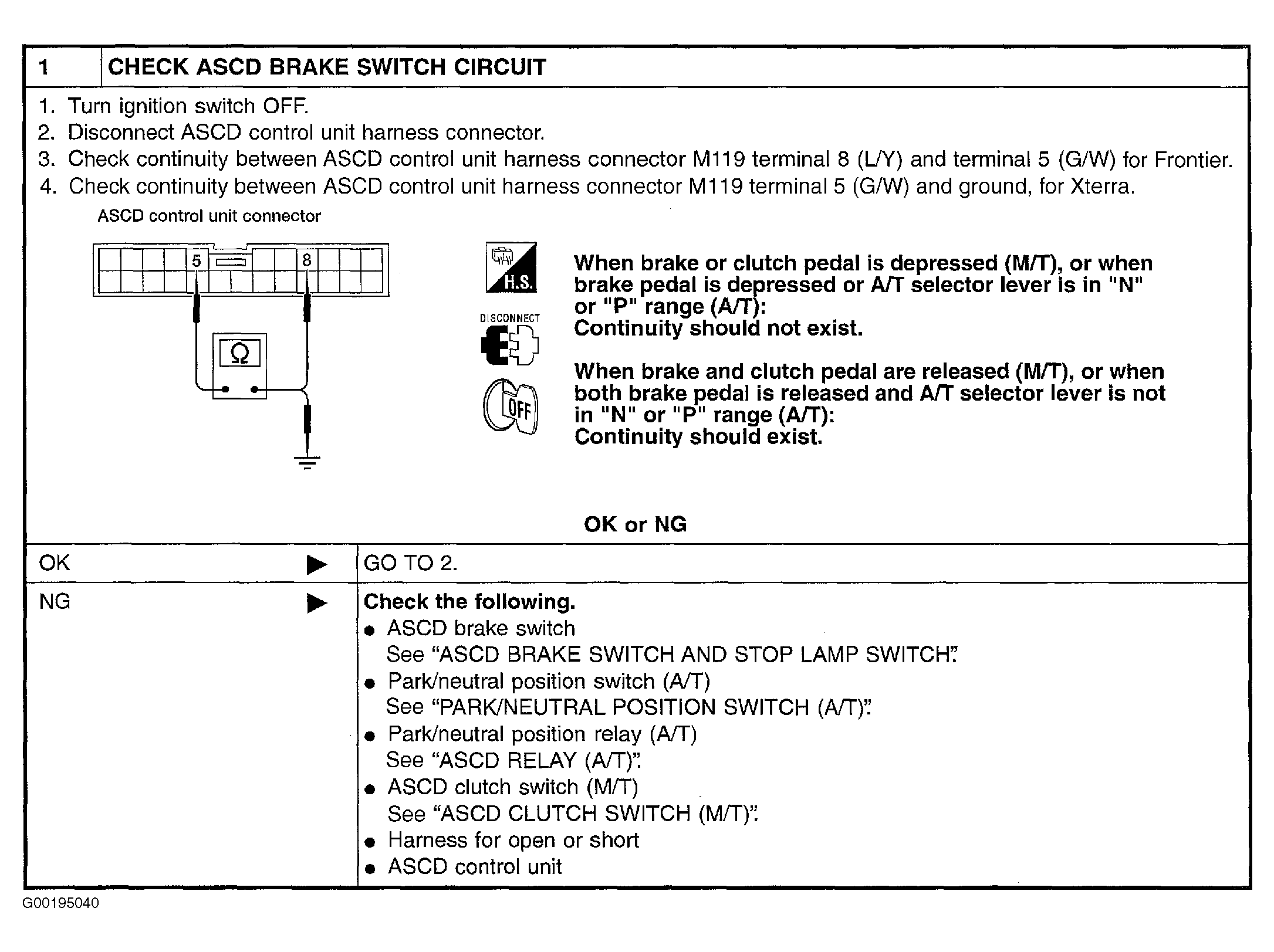

Fig 1: Identifying ASCD Brake/Stop Lamp Switch Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

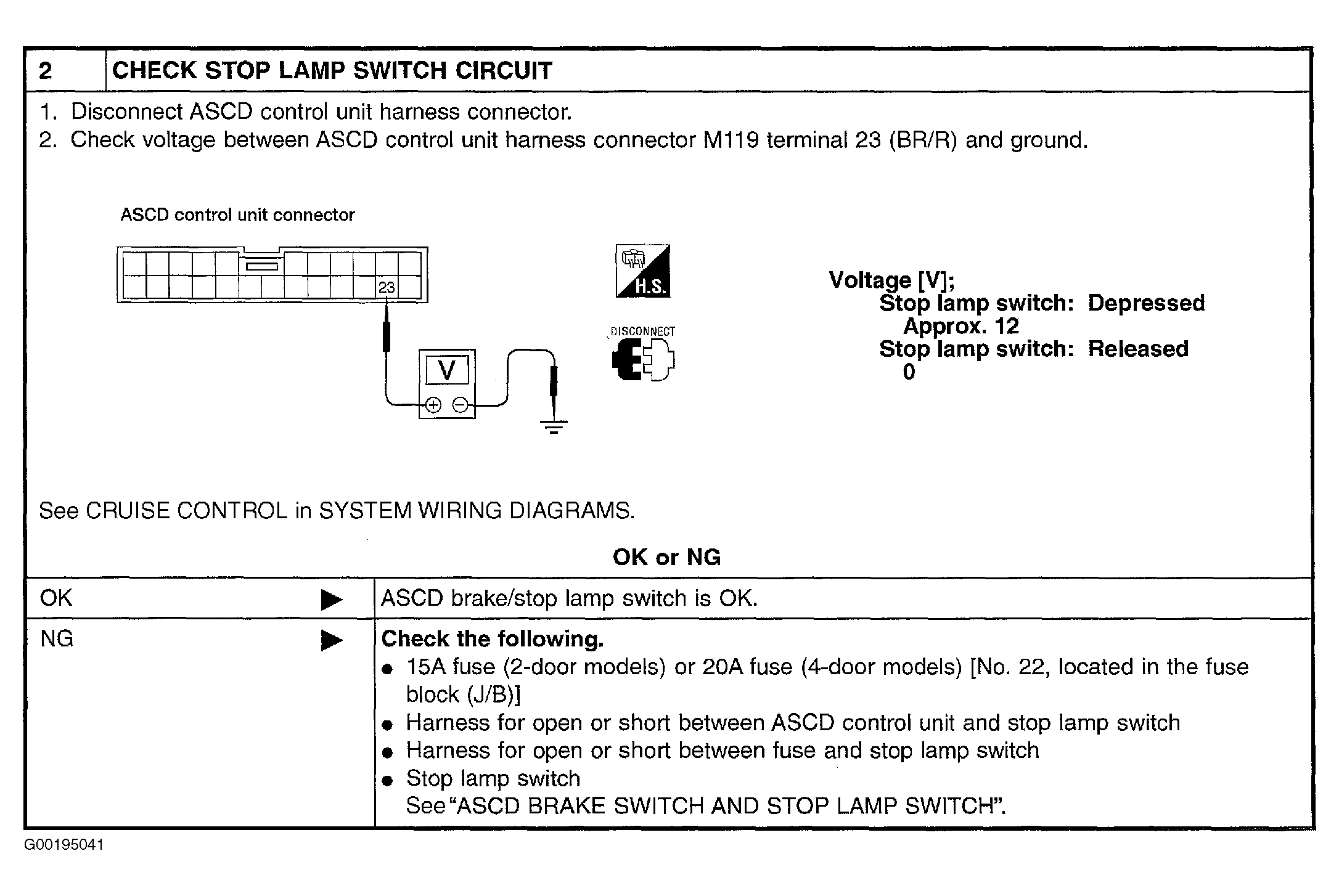

Fig 2: Identifying ASCD Brake/Stop Lamp Switch Check, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
