FixVault
Home
›
Nissan-Datsun
›
2003
›
Frontier Base, Standard
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control System
›
VDC/TCS/Abs
›
Trouble Diagnosis
›
Symptom Chart
Symptom Chart

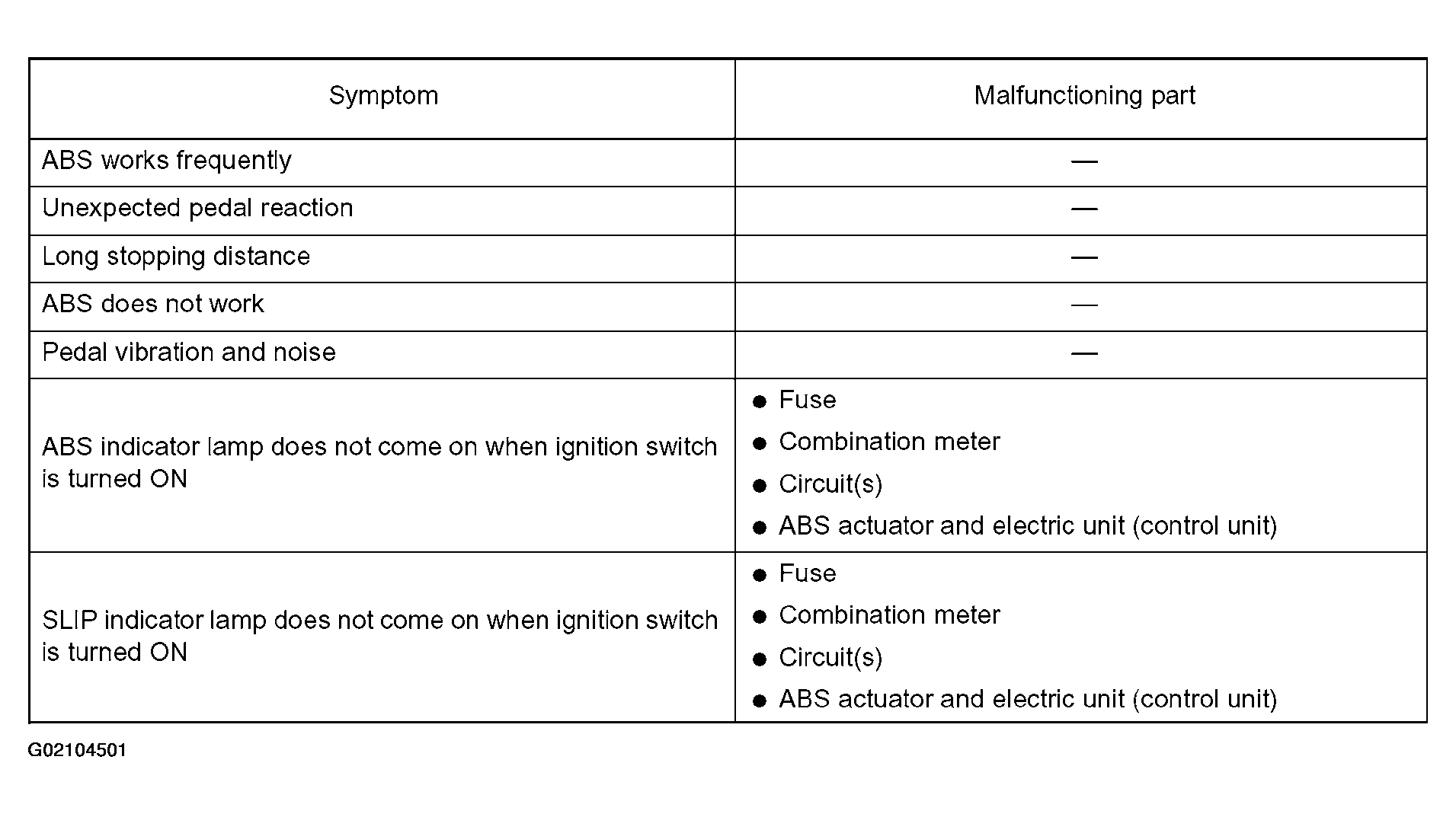

Fig 1: Problem Symptoms Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

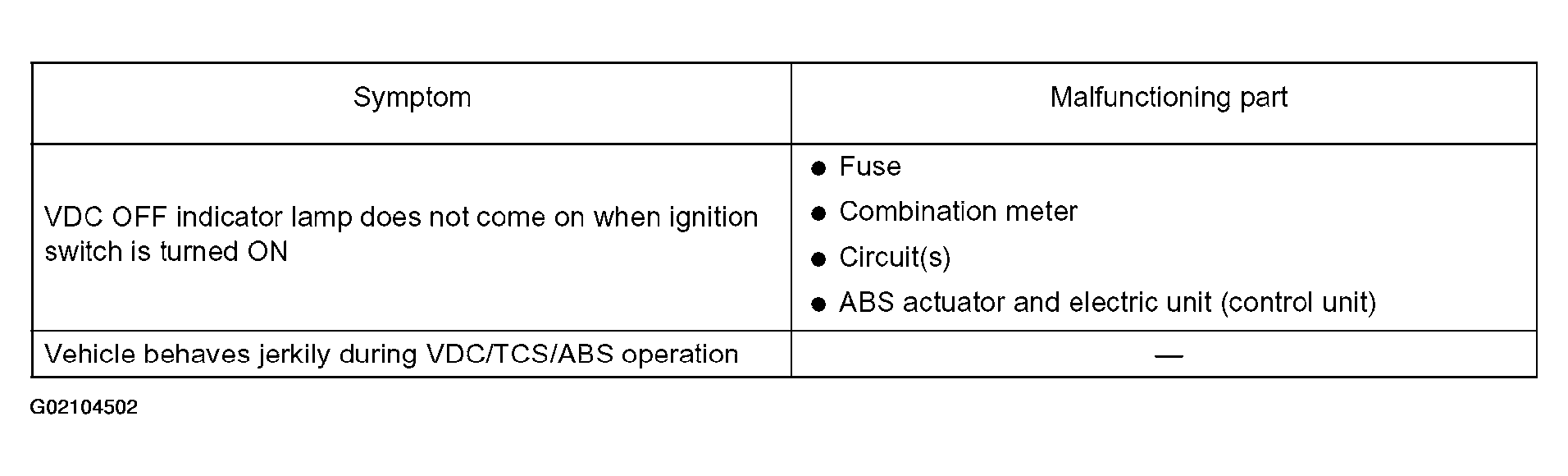

Fig 2: Problem Symptoms Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
