Engine Controls - Self-Diagnostics
›
Connector Identification
›
Engine Harness
Engine Harness

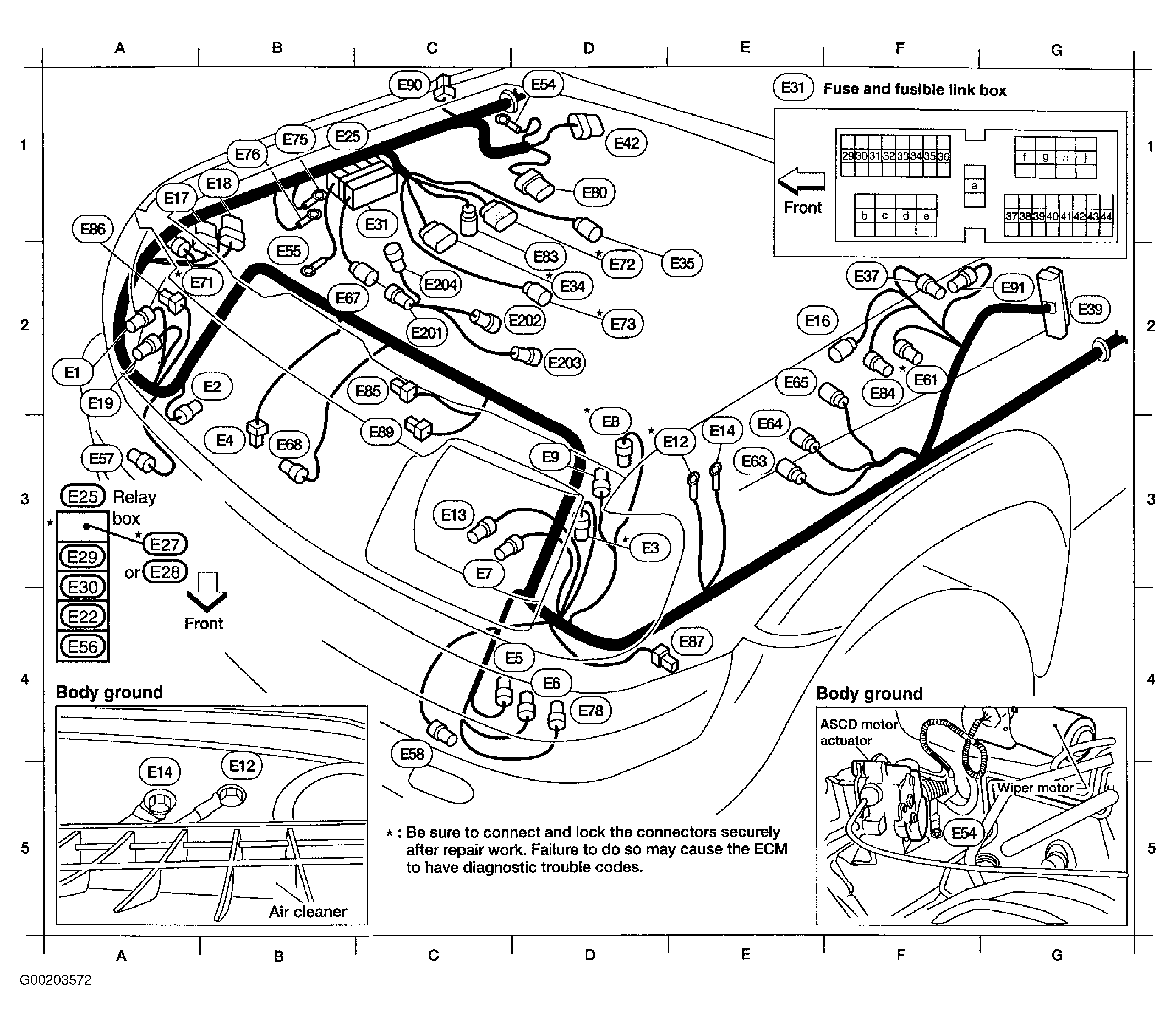

Fig 1: Identifying Engine Room Harness Connectors (Frontier 2.4L)
Courtesy of NISSAN MOTOR CO., U.S.A.

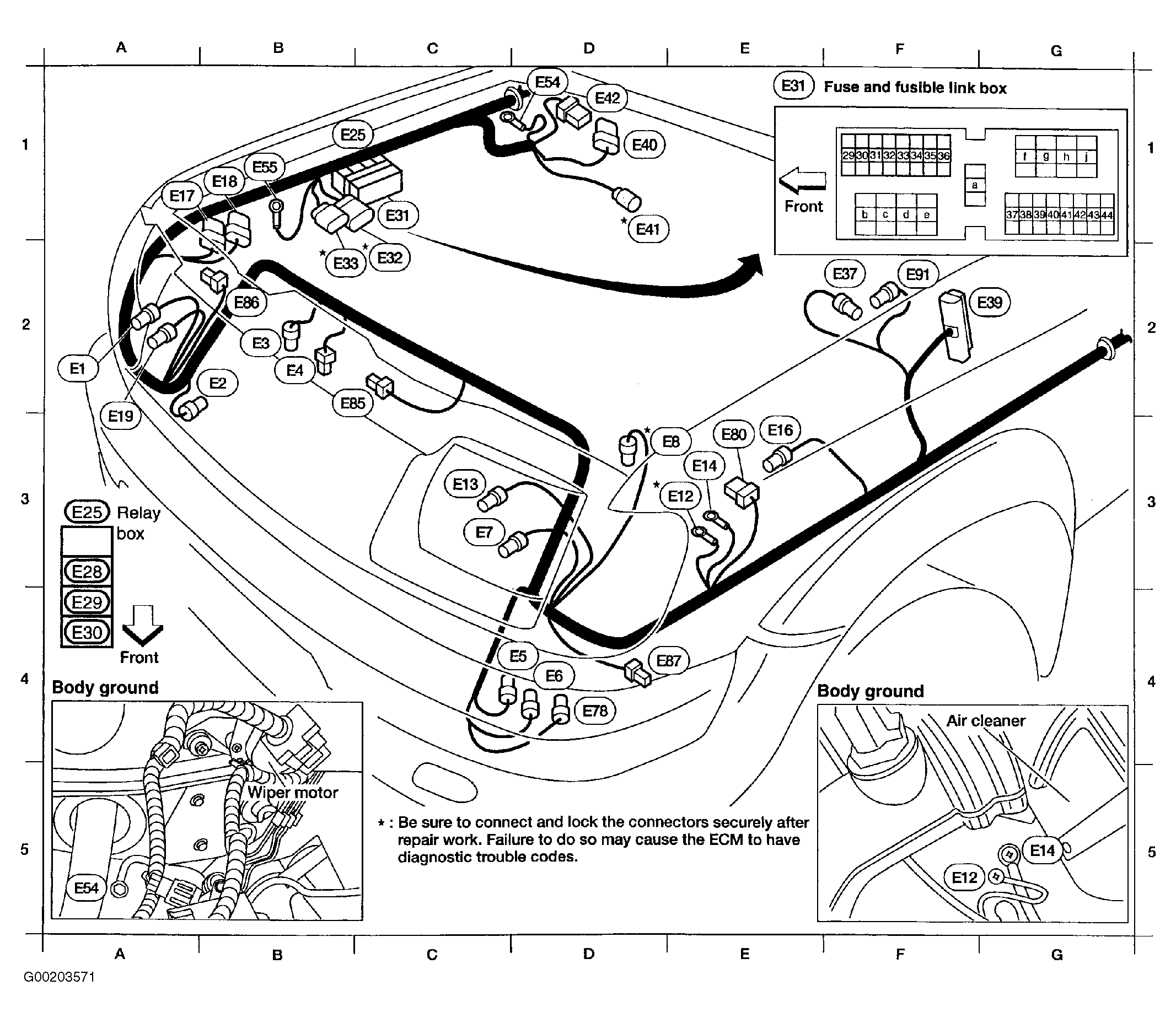

Fig 2: Identifying Engine Room Harness Connectors (Xterra 2.4L)
Courtesy of NISSAN MOTOR CO., U.S.A.

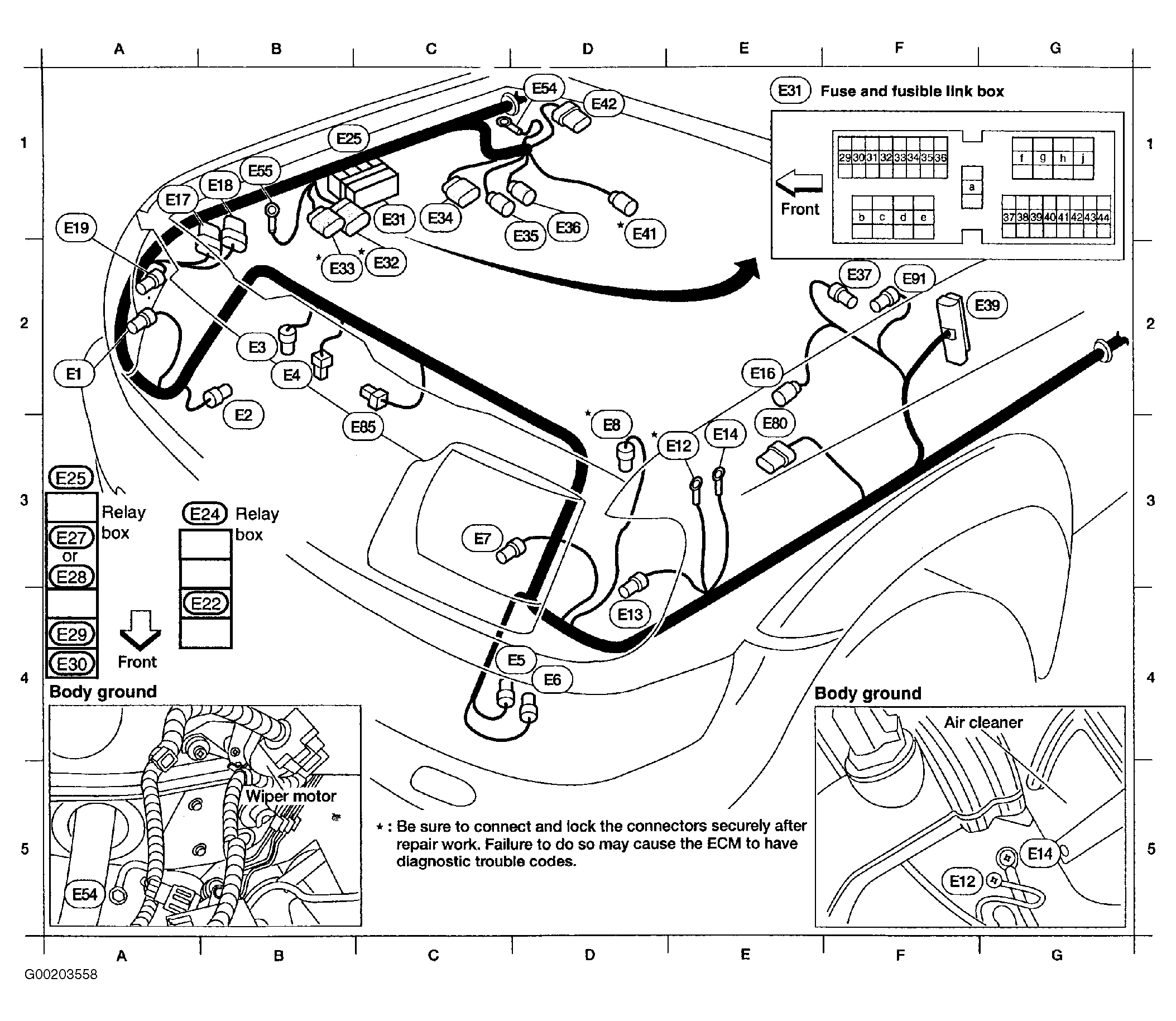

Fig 3: Identifying Engine Room Harness Connectors (Frontier 3.3L)
Courtesy of NISSAN MOTOR CO., U.S.A.

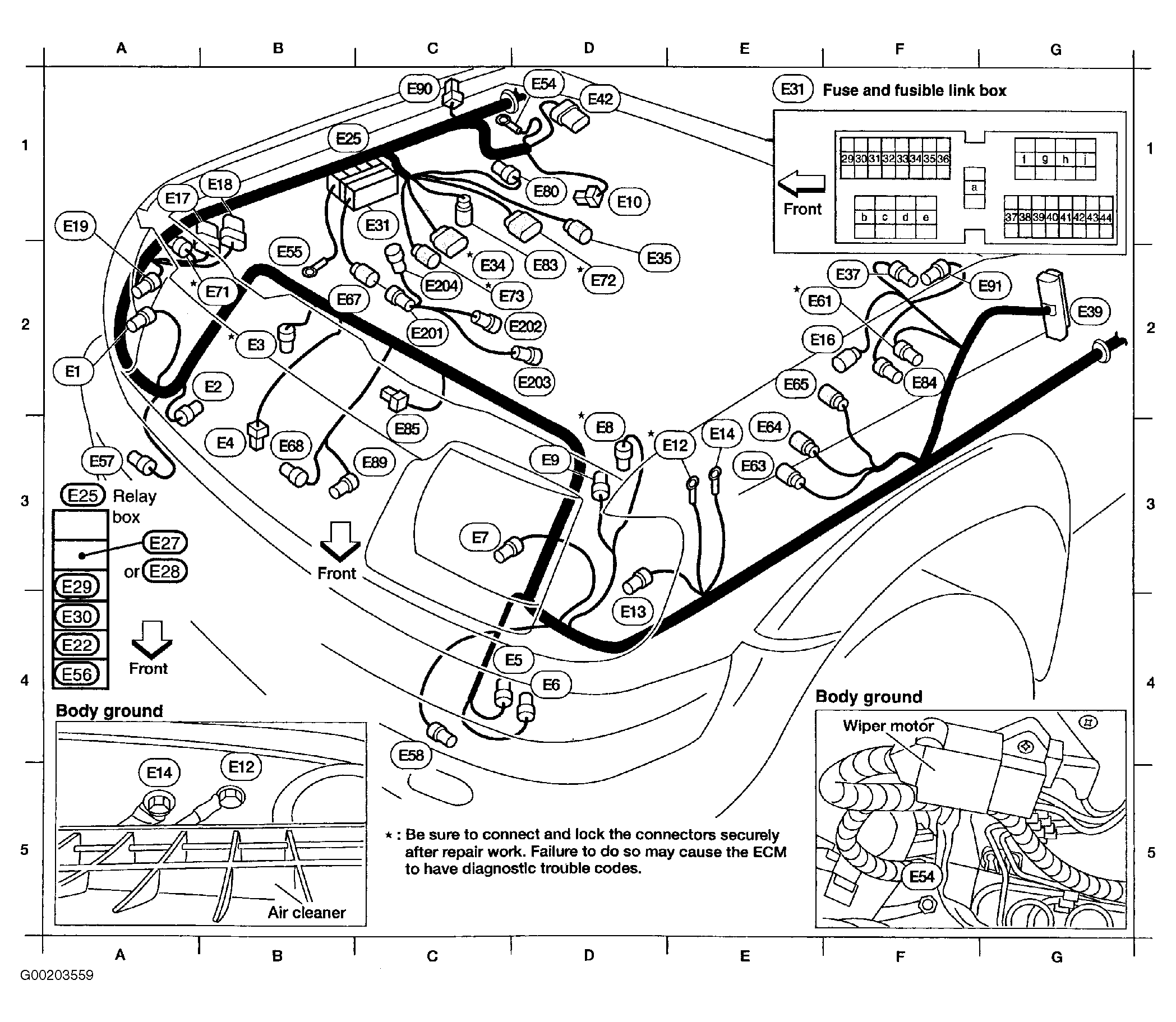

Fig 4: Identifying Engine Room Harness Connectors (Xterra 3.3L)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
