Power Steering Oil Pump: Components

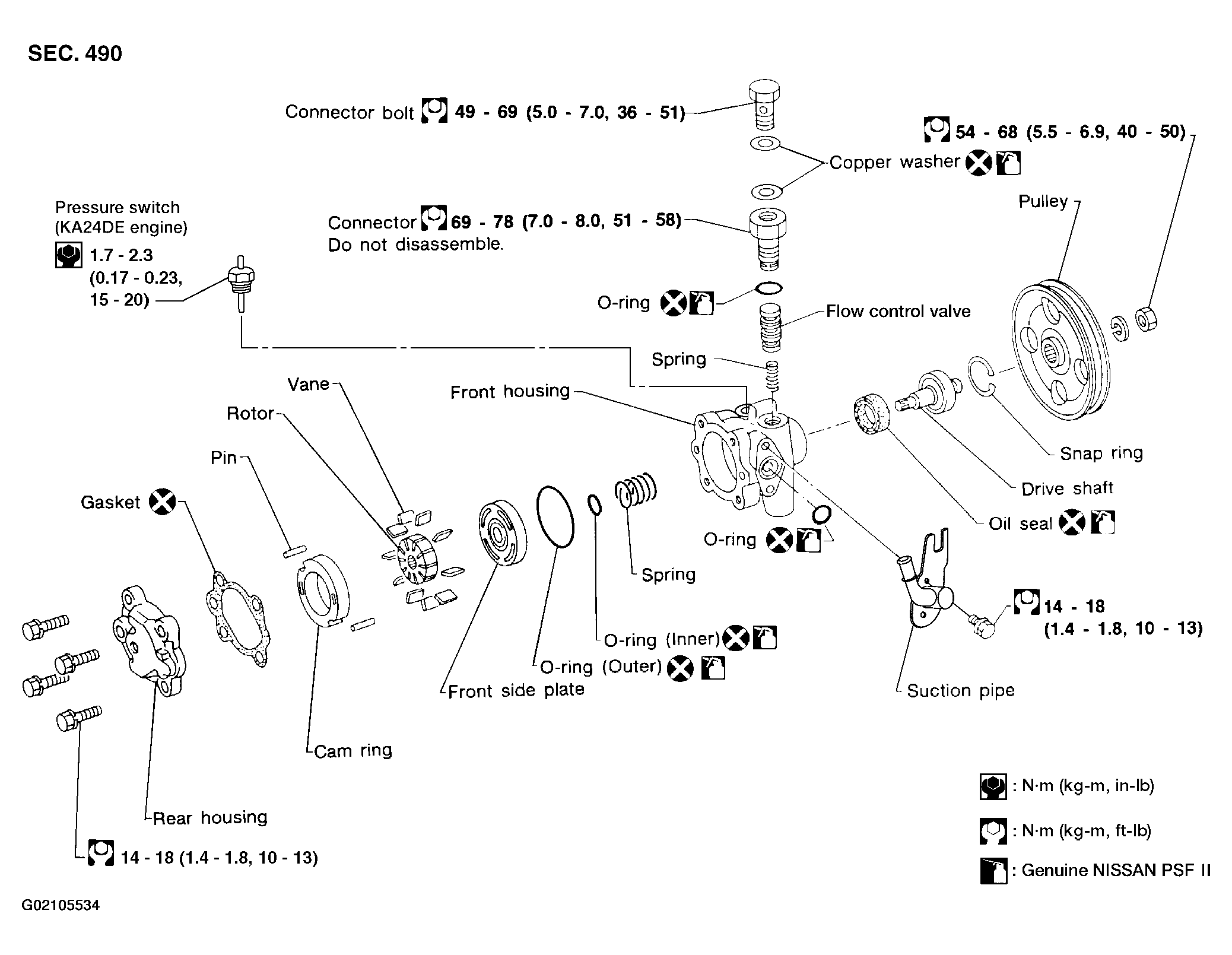

Fig 1: Exploded View Of Power Steering Oil Pump Components
G02105534Courtesy of NISSAN MOTOR CO., U.S.A.
