Control Panel Button Functions

The function of each panel button is as follows:

1. OPEN

   Allows access to the mapping software CD-ROM drive. Push the "OPEN" button, and then press eject to remove the CD-ROM.
2. MAP

   Toggles between the intersection and the map during route guidance. Returns the setting screen to the map screen.
3. DEST

   Sets a destination using various methods.
4. ZM-/ZM+

   Alters the scale of the map display.
5. JOYSTICK

   Alters the displayed part of the map.
6. D/N (Day/Night)

   Changes display brightness.
7. OFF

   Turns off the display.
8. AUTO

   Displays automatic temperature control.
9. ECON

   The air conditioner does not activate. When you need to heat only, use the "ECON" button.
10. Temperature Set Knob

    Changes the temperature setup.
11. Recirculate

    Recirculates air within vehicle.
12. Vent Control

    Controls air flow.
13. Defrost

    Activates the defroster.
14. OFF

    Cancels the display relative to air conditioner or turns the automatic temperature control off.

For button position, see Fig 1.

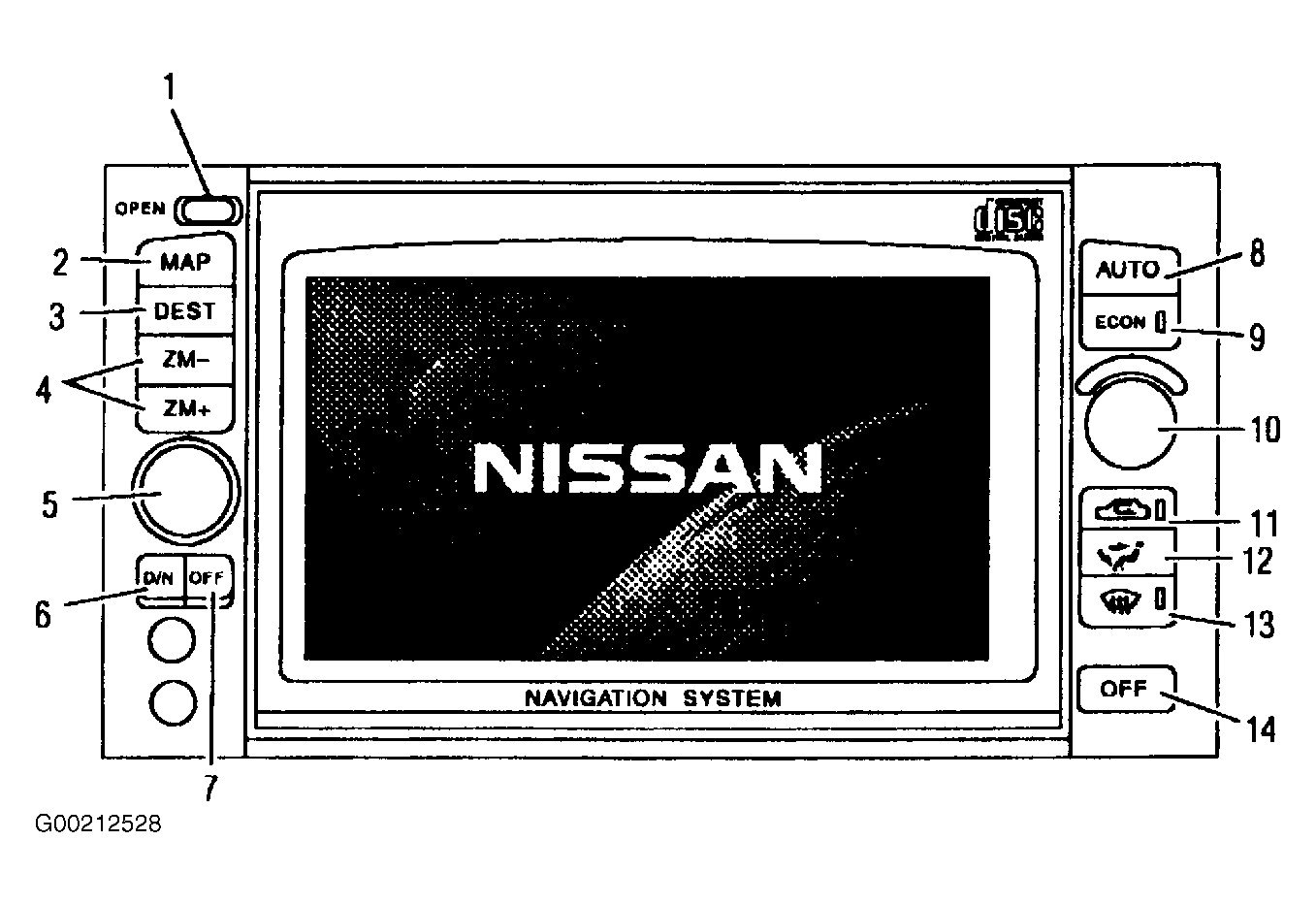

Fig 1: Locating Control Panel Button Locations

Courtesy of NISSAN MOTOR CO., U.S.A.
