Horn Reminder Check

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

For horn reminder check, see Fig 1 -Fig 6 .

Fig 1: Identifying Horn Reminder Check, Step 1

G00209462

Courtesy of NISSAN MOTOR CO., U.S.A.

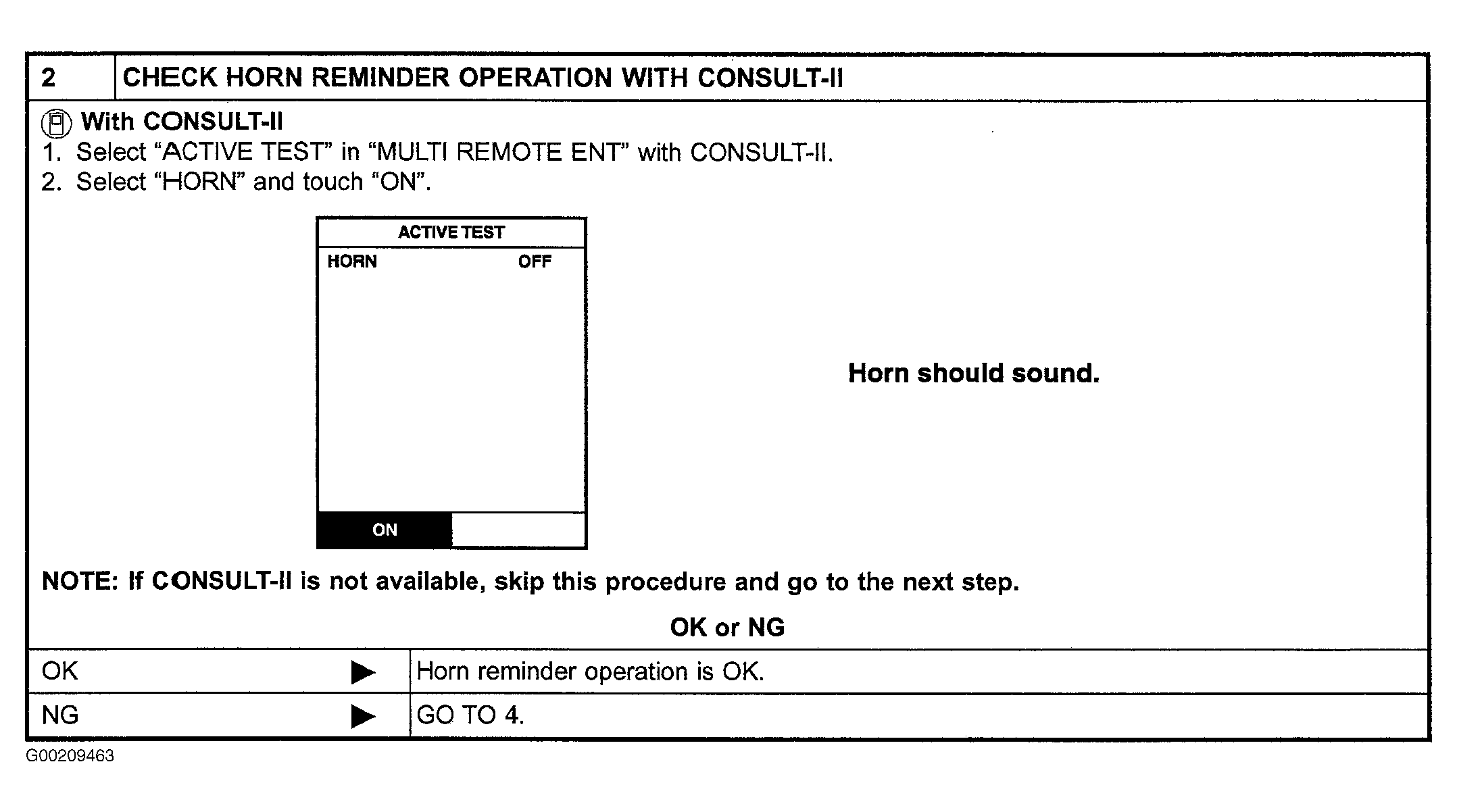

Fig 2: Identifying Horn Reminder Check, Step 2

G00209463

Courtesy of NISSAN MOTOR CO., U.S.A.

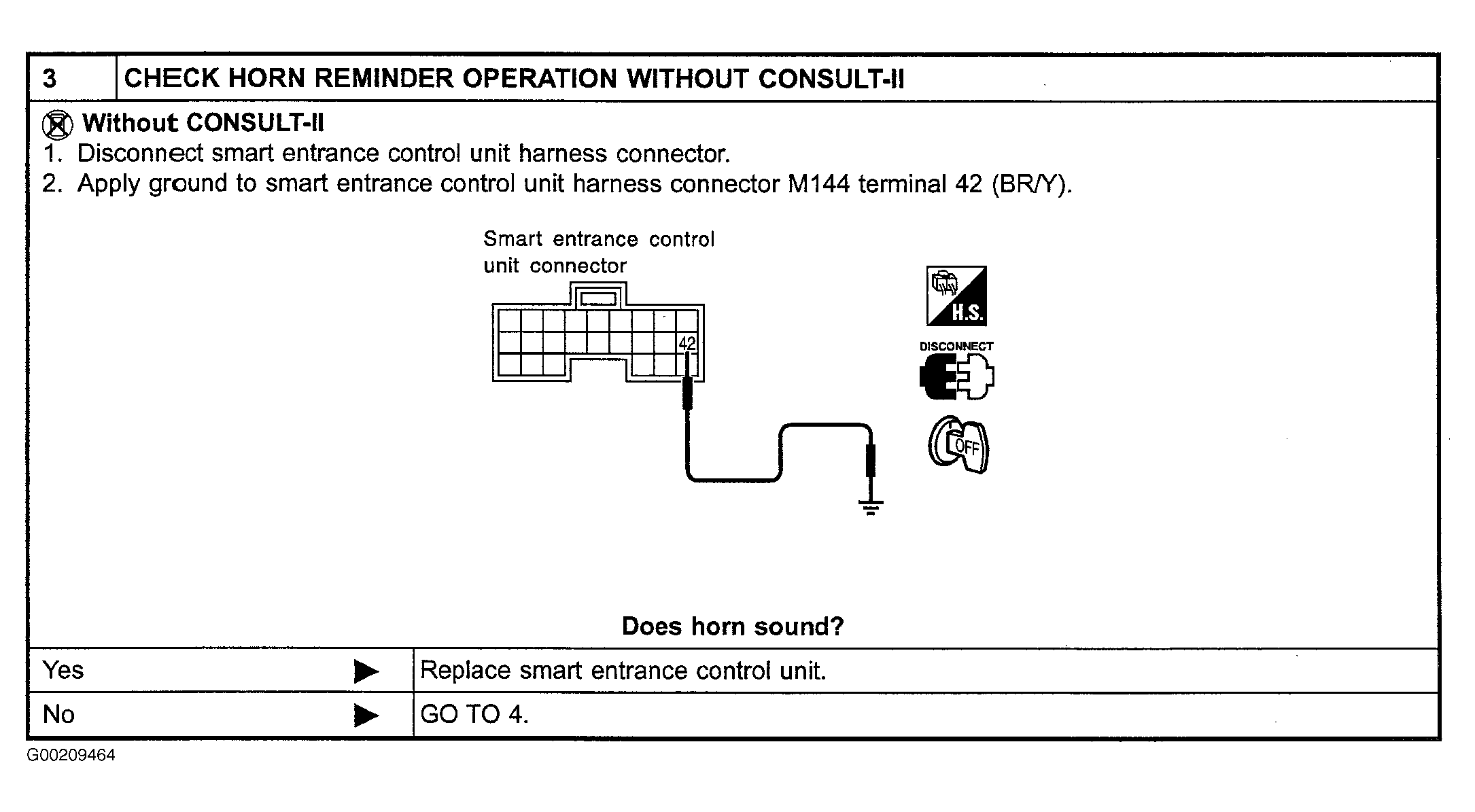

Fig 3: Identifying Horn Reminder Check, Step 3

G00209464

Courtesy of NISSAN MOTOR CO., U.S.A.

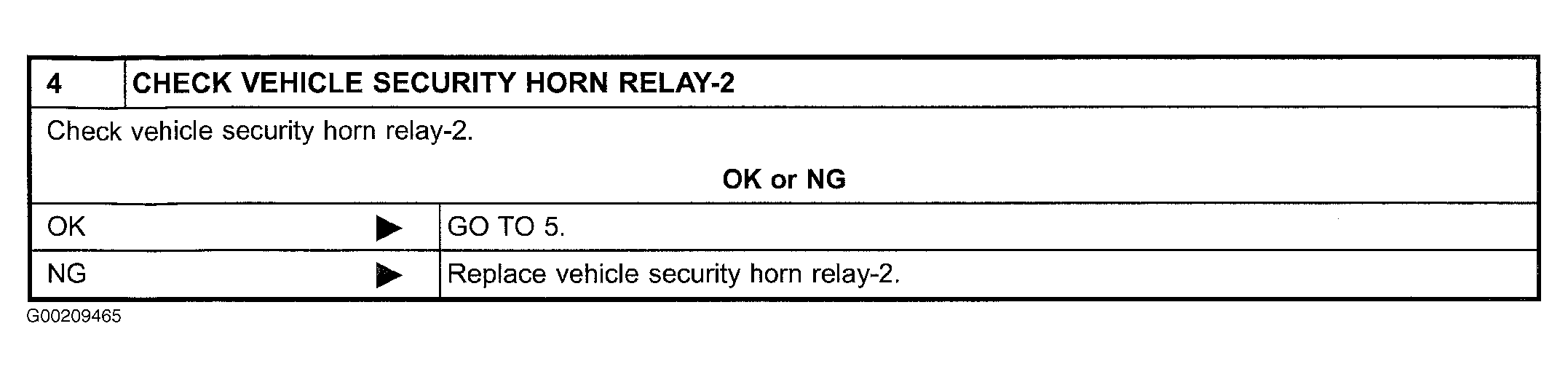

Fig 4: Identifying Horn Reminder Check, Step 4

G00209465

Courtesy of NISSAN MOTOR CO., U.S.A.

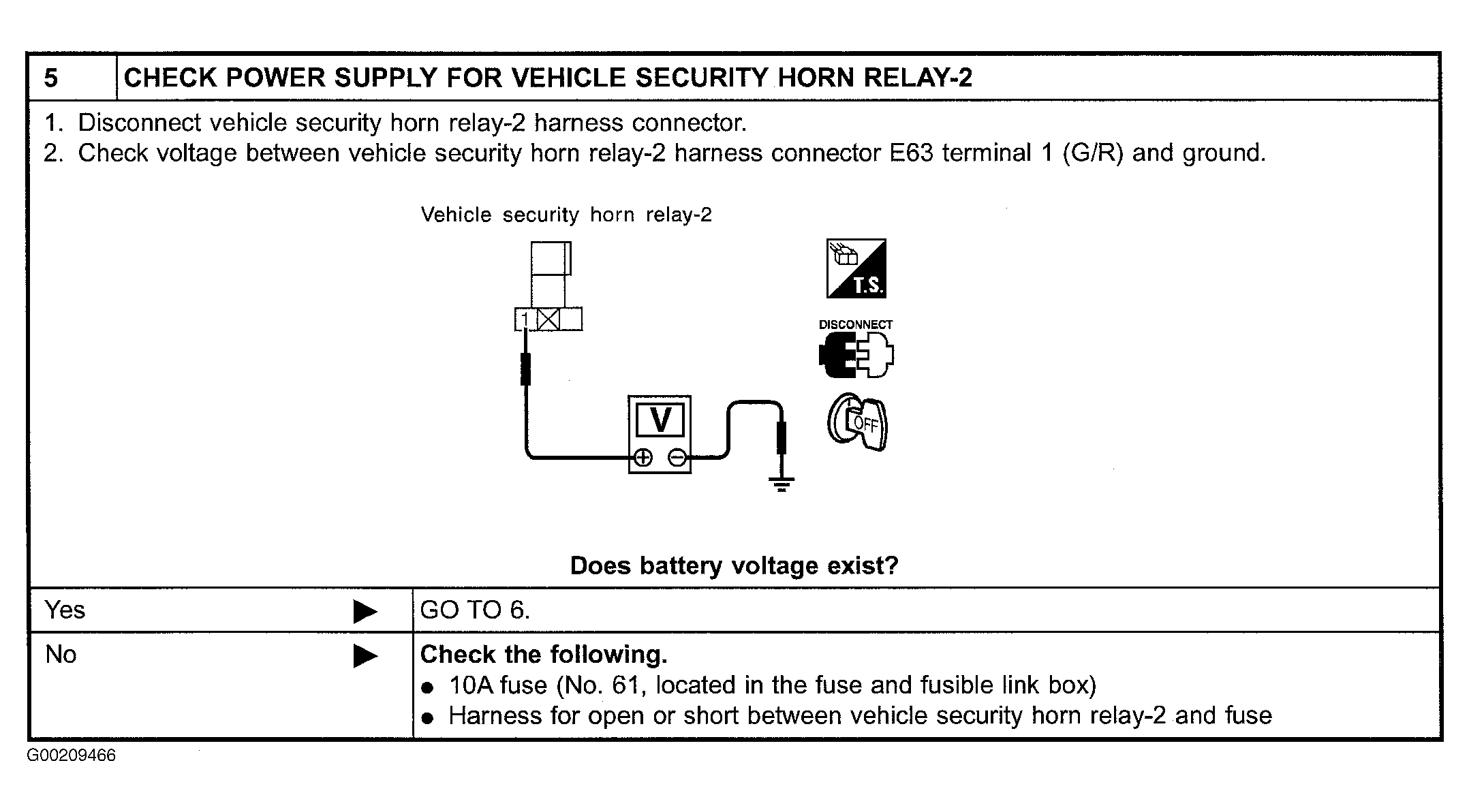

Fig 5: Identifying Horn Reminder Check, Step 5

G00209466

Courtesy of NISSAN MOTOR CO., U.S.A.

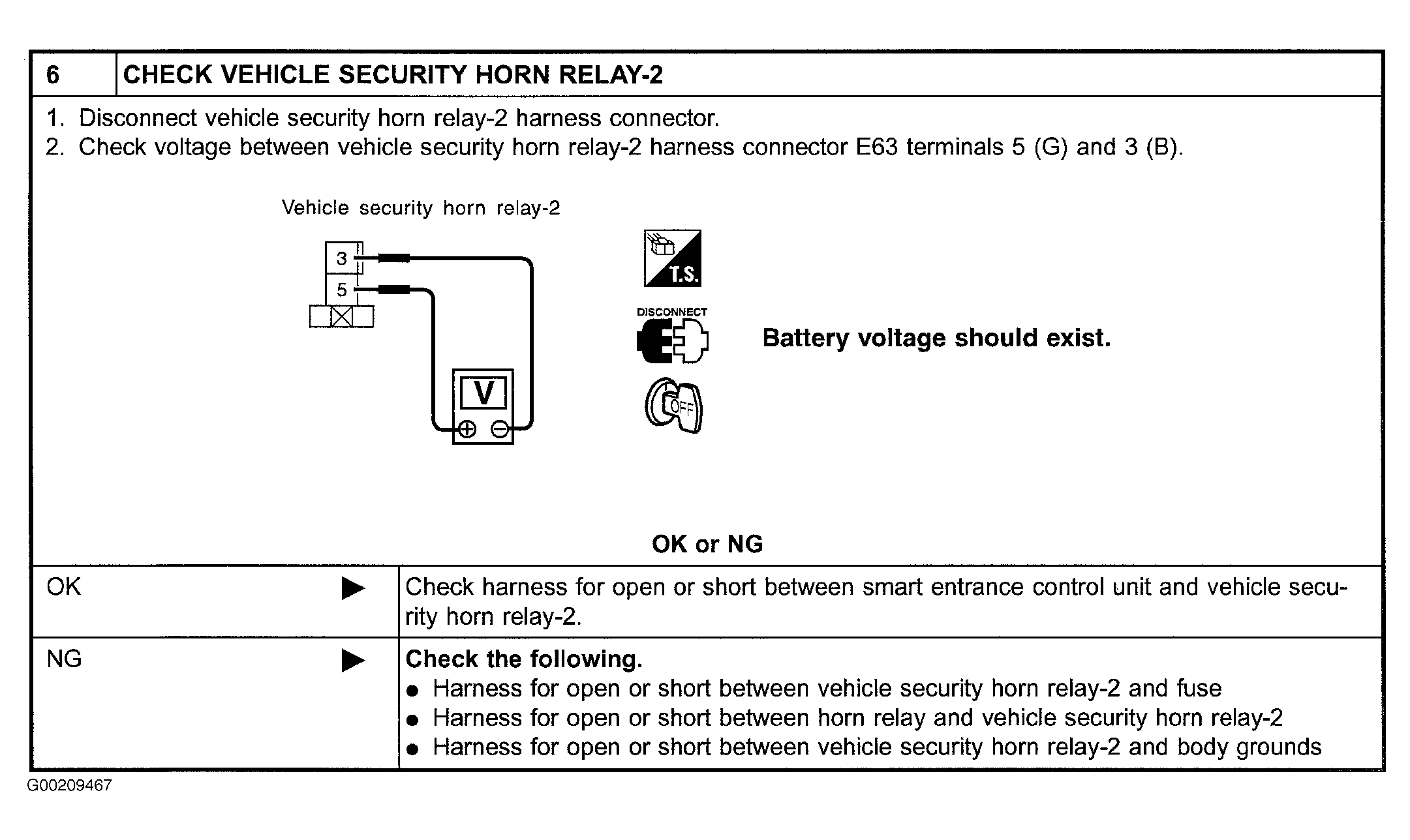

Fig 6: Identifying Horn Reminder Check, Step 6

G00209467

Courtesy of NISSAN MOTOR CO., U.S.A.
