Active Test Mode
Active Test Mode

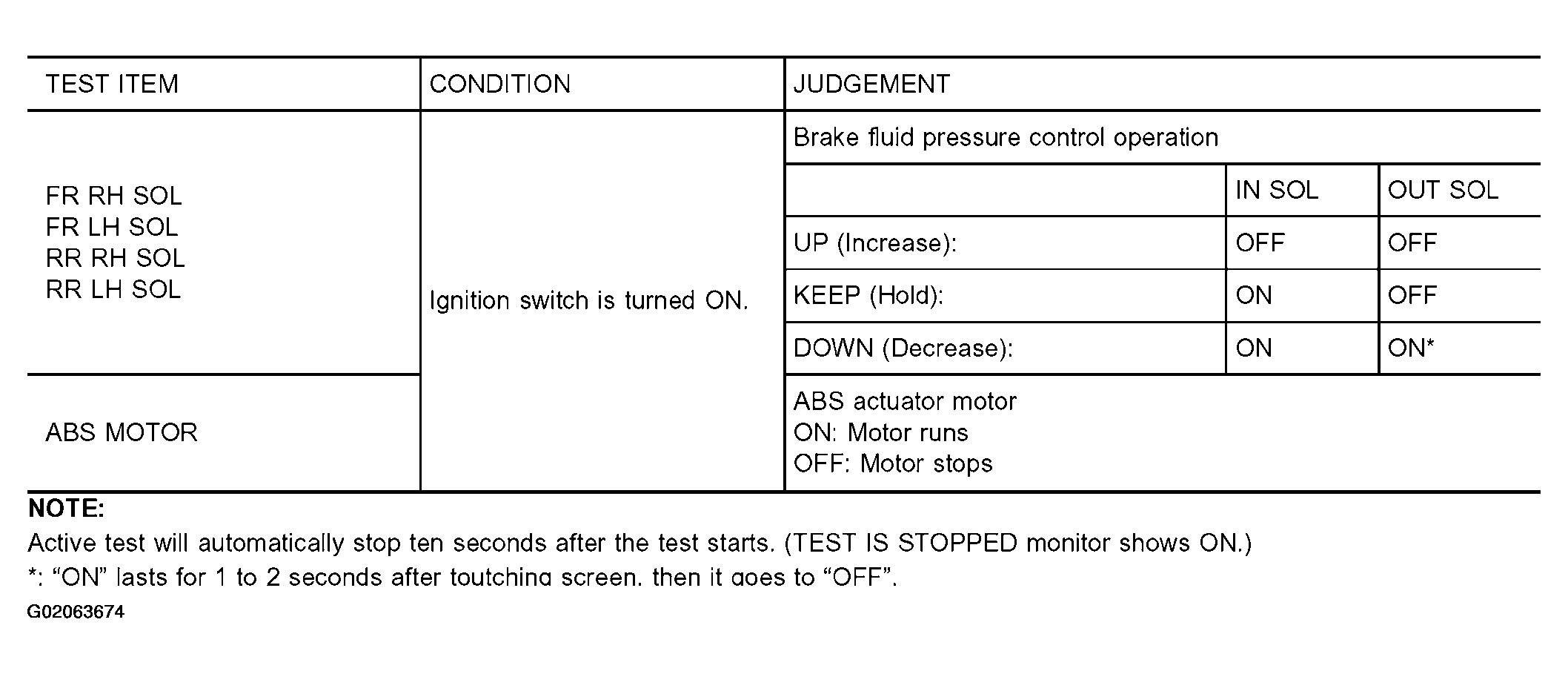

Fig 1: Active Test Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
