Traction Control System
›
On Board Diagnostic System Description
›
CONSULT-II Inspection Procedure
›
Data Monitor Mode
Data Monitor Mode

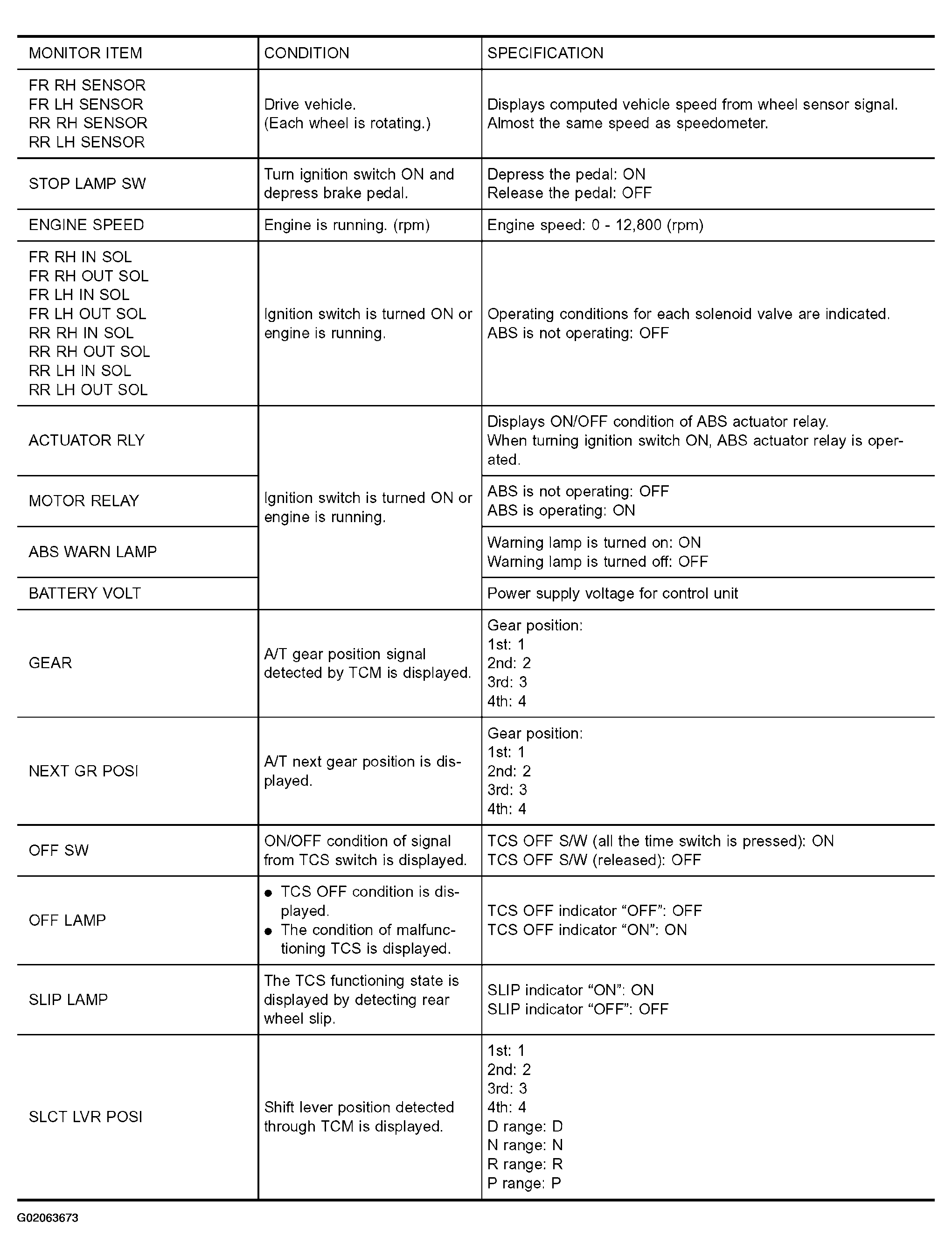

Fig 1: Data Monitor Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
