Position For Applying Liquid Gasket

Refer to "Liquid Gasket Application Procedure" in "PRECAUTION " .

Before installation, wipe off the protruding sealant.

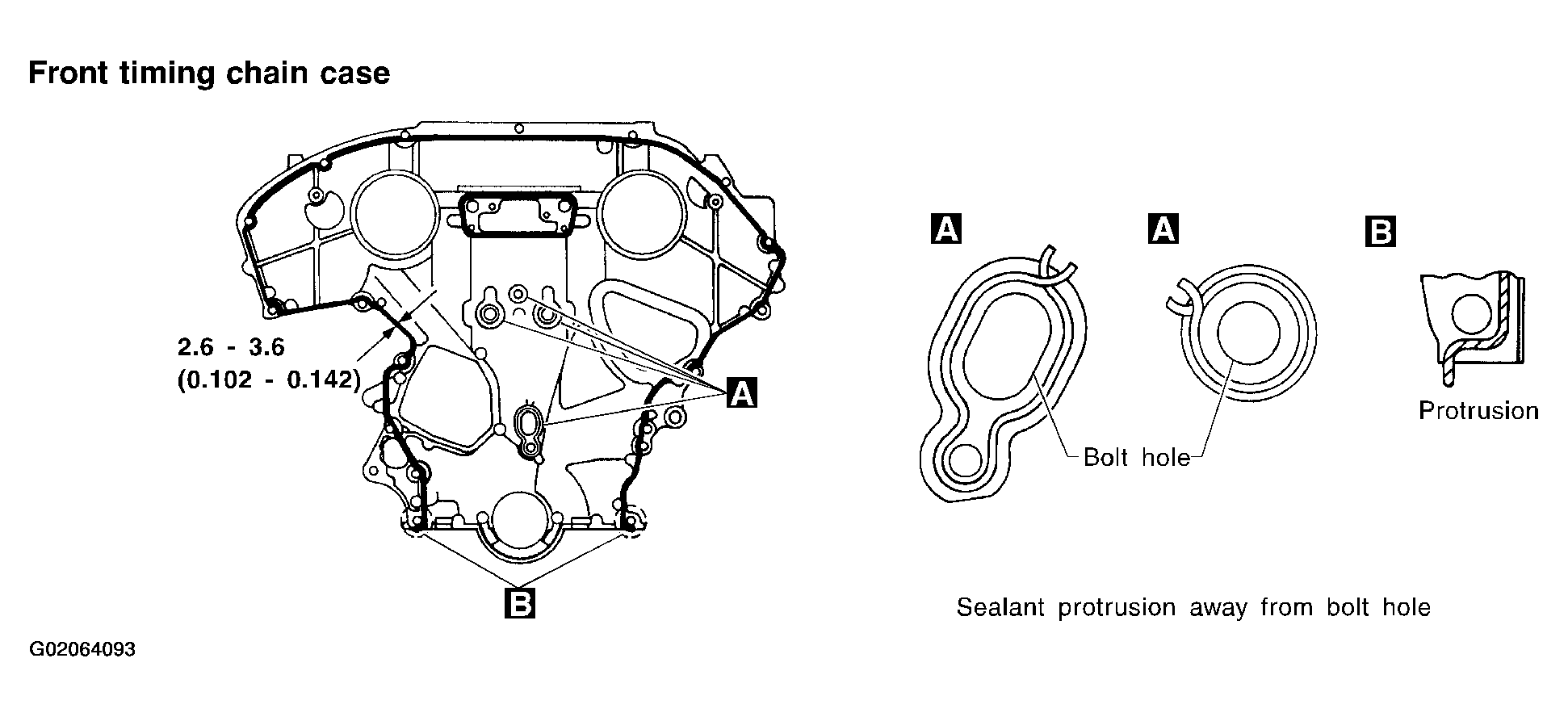

Fig 1: Locating Front Timing Chain Case Liquid Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.

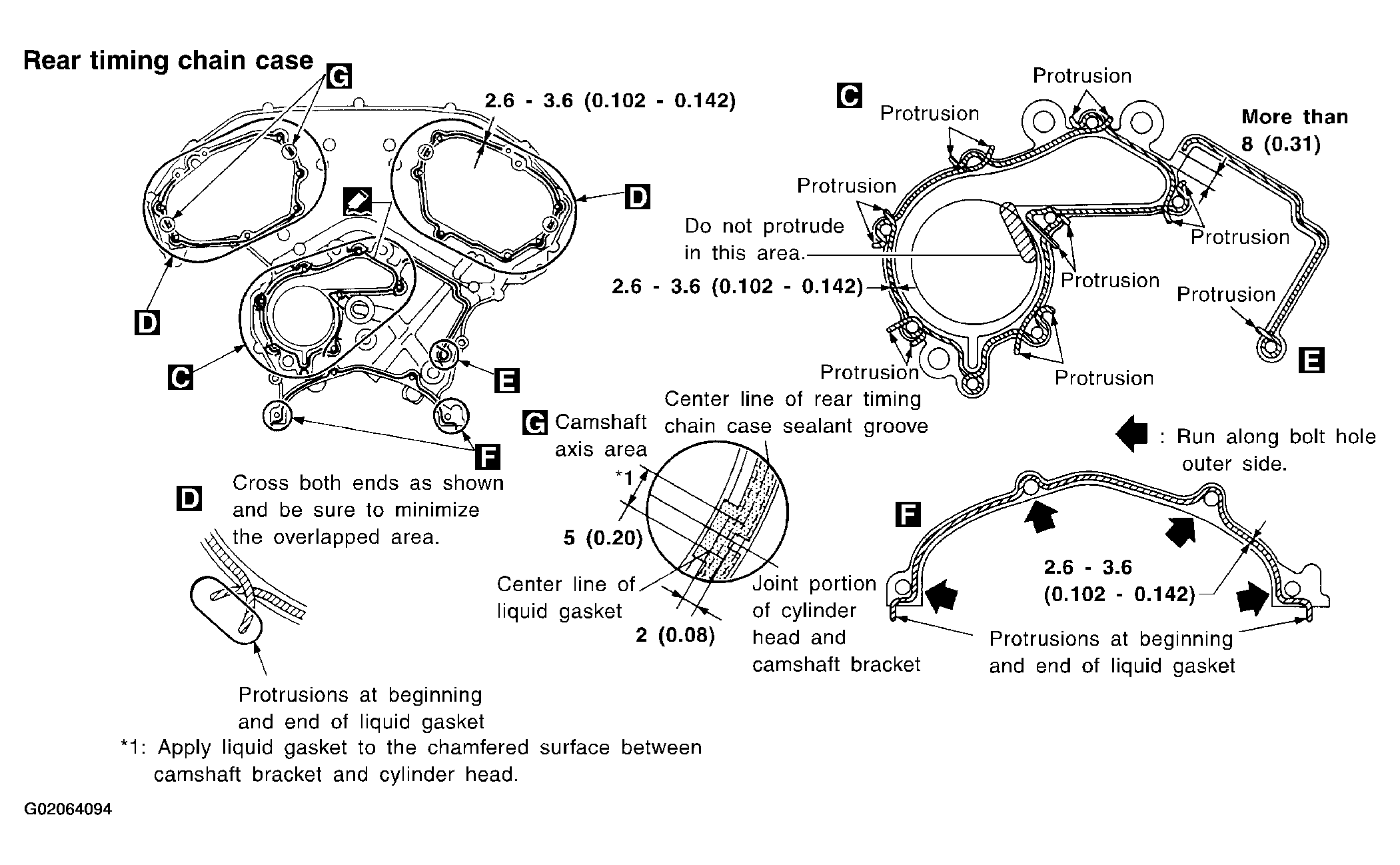

Fig 2: Locating Rear Timing Chain Case Liquid Gasket

Courtesy of NISSAN MOTOR CO., U.S.A.

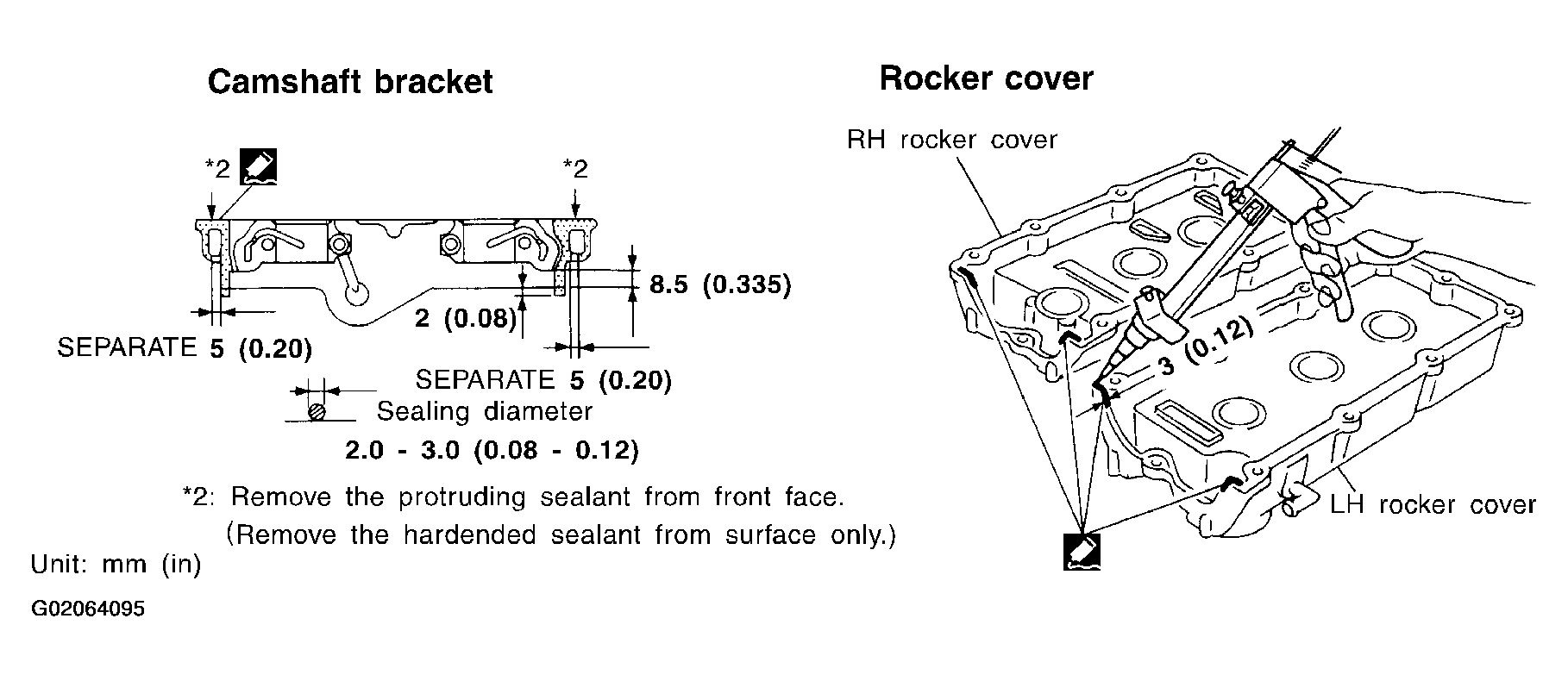

Fig 3: Identifying Camshaft Bracket And Rocker Cover

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike piston heads.
When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting surfaces with new engine oil.
Apply new engine oil to bolt threads and seat surfaces when installing cylinder head, camshaft sprockets, crankshaft pulley and camshaft brackets.
Before disconnecting fuel hose, release fuel pressure. Refer to FUEL PRESSURE RELEASE .
When removing the oil pans, oil pump assembly and timing chain from engine, first remove the crankshaft position sensor (POS) from the assembly.
Be careful not to damage sensor edges.
Do not spill engine coolant on drive belts.
