DTC Power Train Revolution Sensor
›
Description
›
TCM Terminals And Reference Value
TCM Terminals And Reference Value
Remarks: Specification data are reference values.

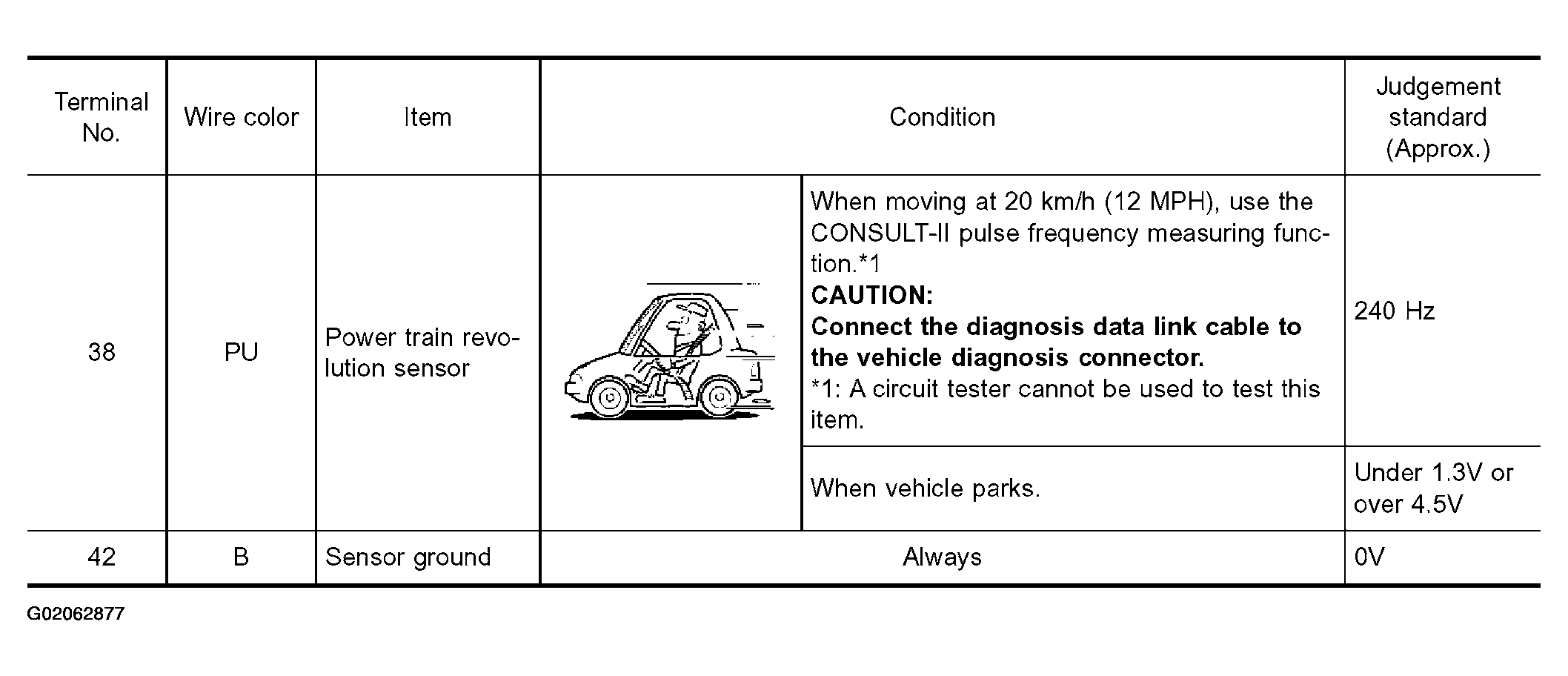

Fig 1: TCM Terminals And Reference Value Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
