CONSULT-II Setting Procedure

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to Data link connector, which is located in left side dash panel.

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Consult II START (NISSAN BASED VHCL) Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T". If "A/T" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Consult II A/T Display
Courtesy of NISSAN MOTOR CO., U.S.A.

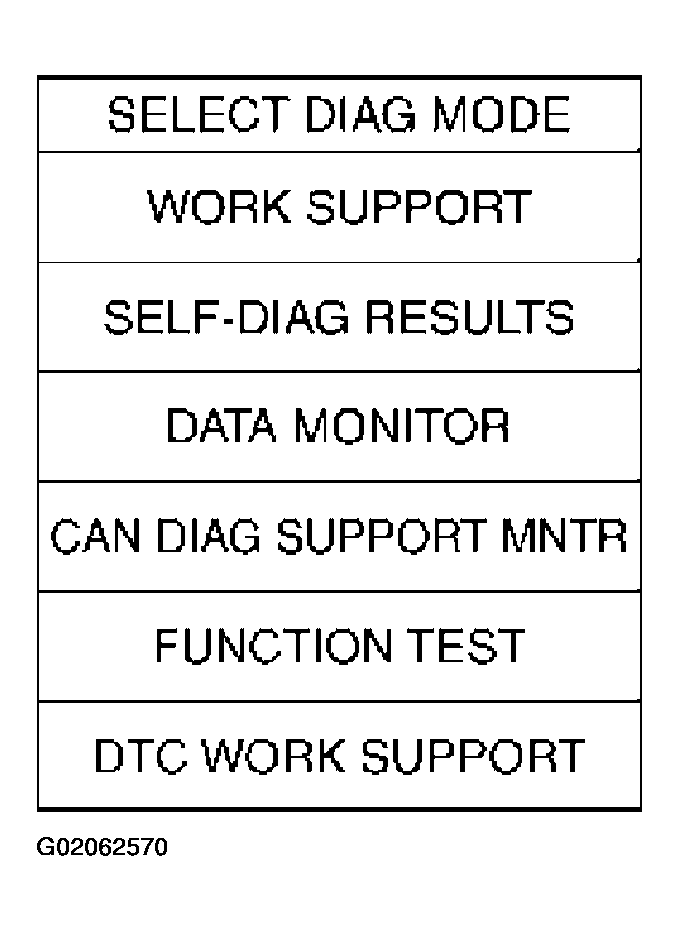

Touch "DTC WORK SUPPORT".

Fig 4: Consult II DTC WORK SUPPORT Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu (1ST, 2ND, etc.).

Fig 5: Consult II Select Item Menu Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

Fig 6: Consult II START Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

Fig 7: Consult II DTC Confirmation Procedure Display
Courtesy of NISSAN MOTOR CO., U.S.A.
- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

  Fig 8: Consult II TESTING Display
  Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

Fig 9: Consult II Stop Vehicle Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Consult II NG Display
Courtesy of NISSAN MOTOR CO., U.S.A.

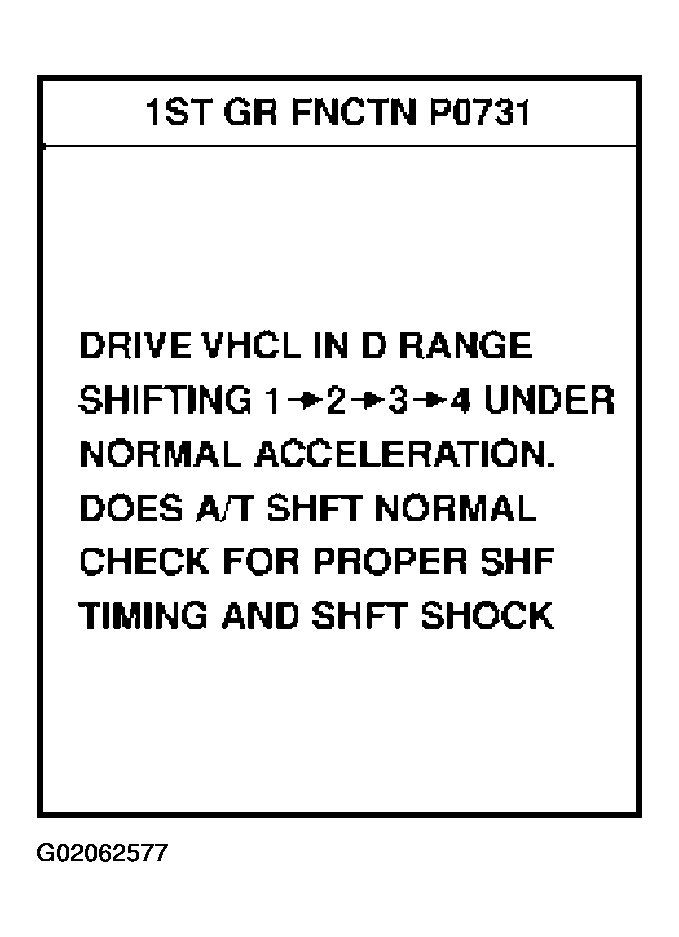

Perform test drive to check gear shift feeling in accordance with instructions displayed.

Fig 11: Consult II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "YES" or "NO".

Fig 12: Consult II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
CONSULT-II procedure ended.
If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

Fig 13: Consult II OK Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Consult II NG Display
Courtesy of NISSAN MOTOR CO., U.S.A.
