Control Valve Assembly and Accumulators: Removal

Drain ATF from transaxle.
Remove oil pan and gasket.

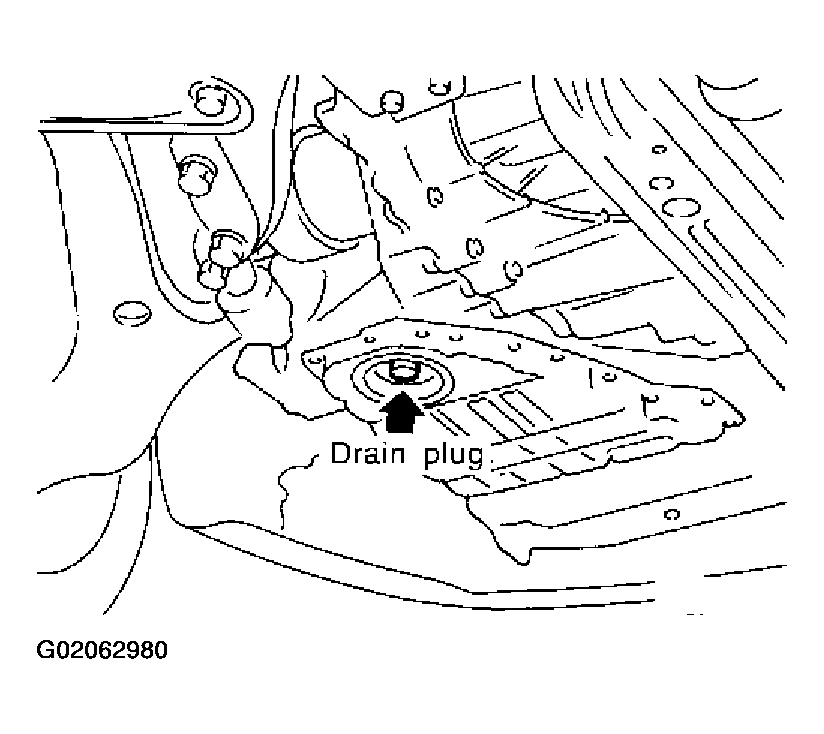

Fig 1: Removing Drain Plug
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect A/T solenoid harness connector.

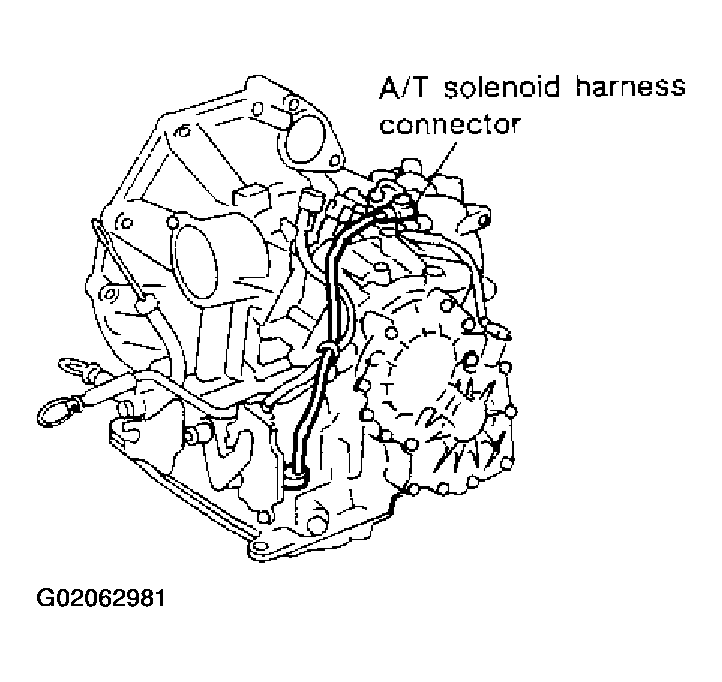

Fig 2: Disconnecting A/T Solenoid Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove stopper ring from terminal cord assembly harness terminal body.
Remove terminal cord assembly harness from transmission case by pushing on terminal body.

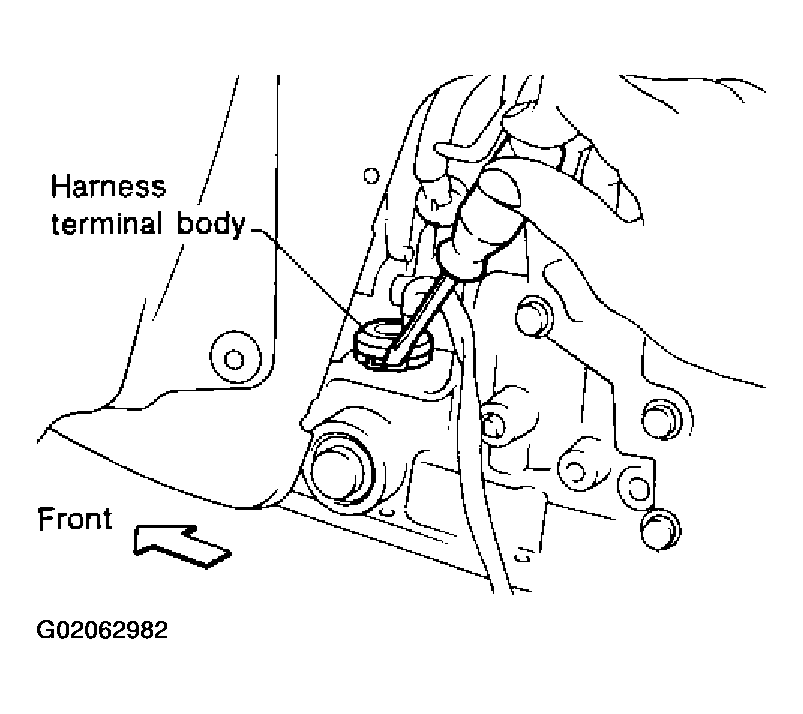

Fig 3: Removing Terminal Cord Assembly Harness From Transmission Case By Pushing On Terminal Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove control valve assembly by removing fixing bolts I, X and.
Bolt length, number and location are shown in the illustration.
- Be careful not to drop manual valve and servo release accumulator return spring.

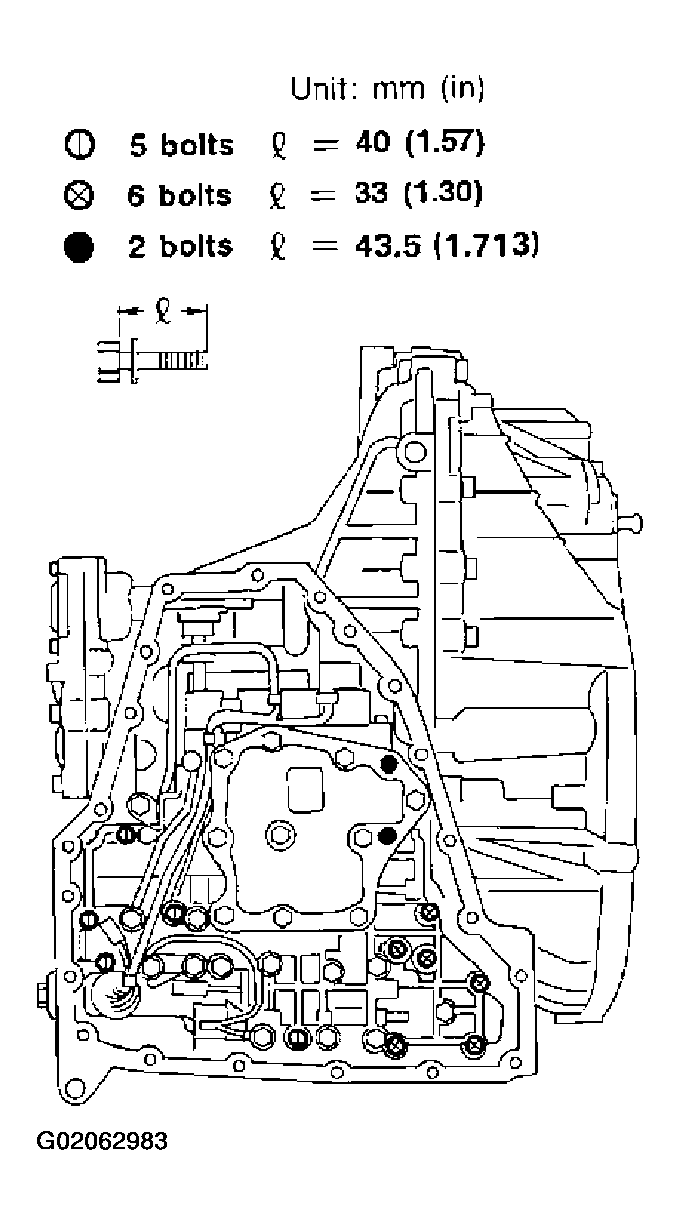

Fig 4: Removing Fixing Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Disassemble and inspect control valve assembly if necessary. Refer to DISASSEMBLY .
Remove servo release and N-D accumulators by applying compressed air if necessary.
- Hold each piston with a rag.

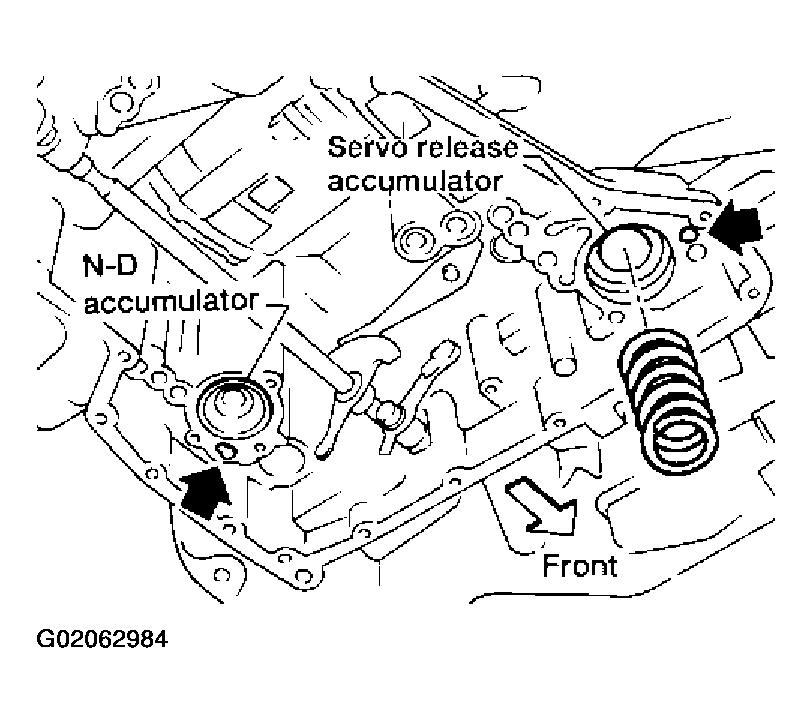

  Fig 5: Removing Servo Release Accumulator
  Courtesy of NISSAN MOTOR CO., U.S.A.
