Input/Output Signal Of TCM

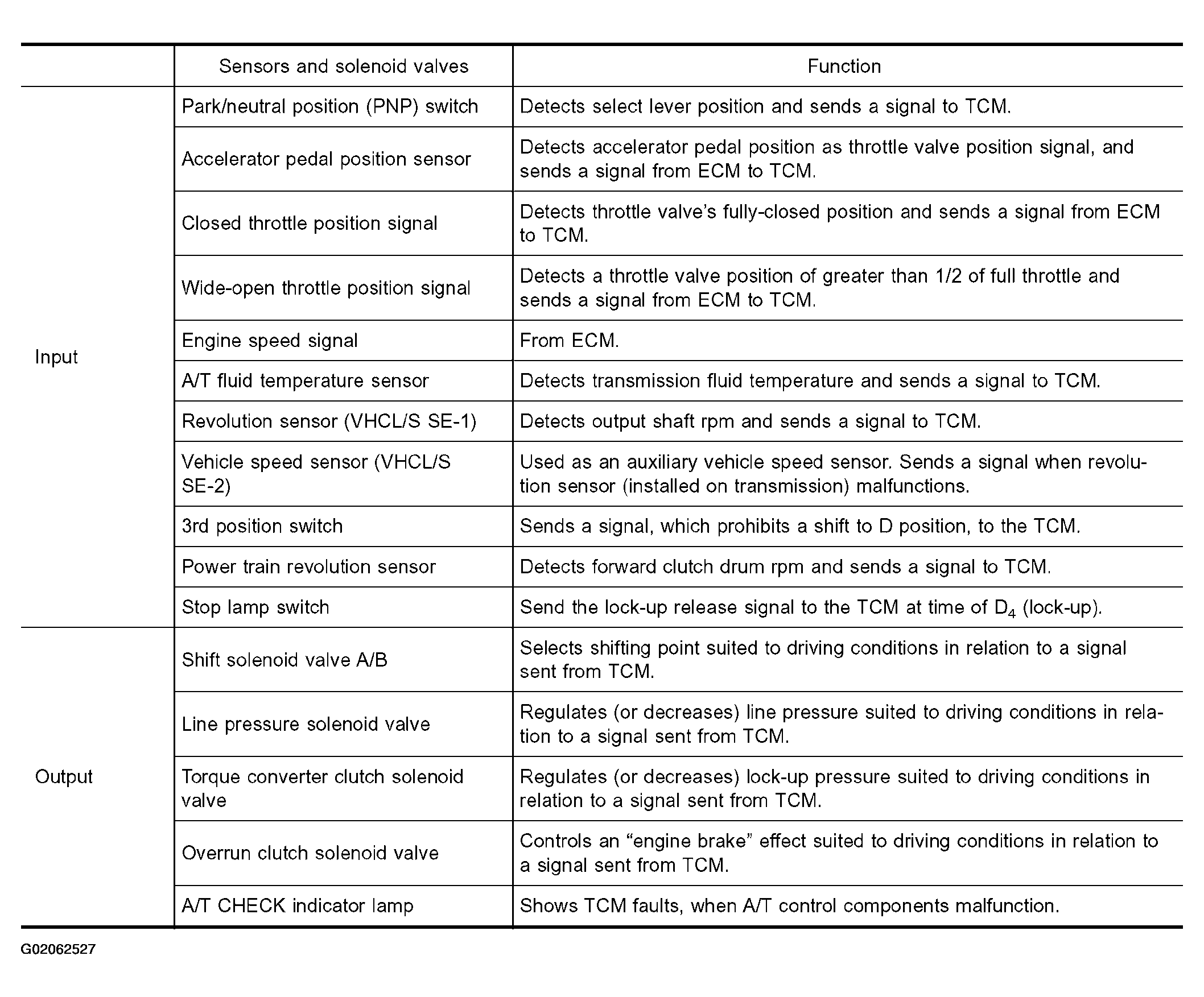

Fig 1: TCM Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
