Function Of Control Valves

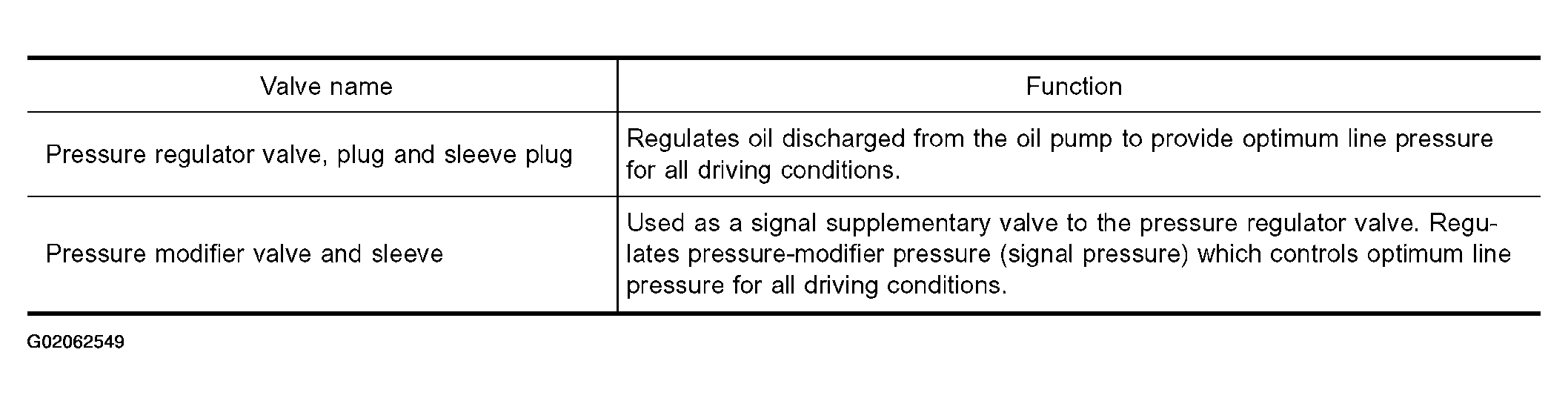

Fig 1: Control Valve Function Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

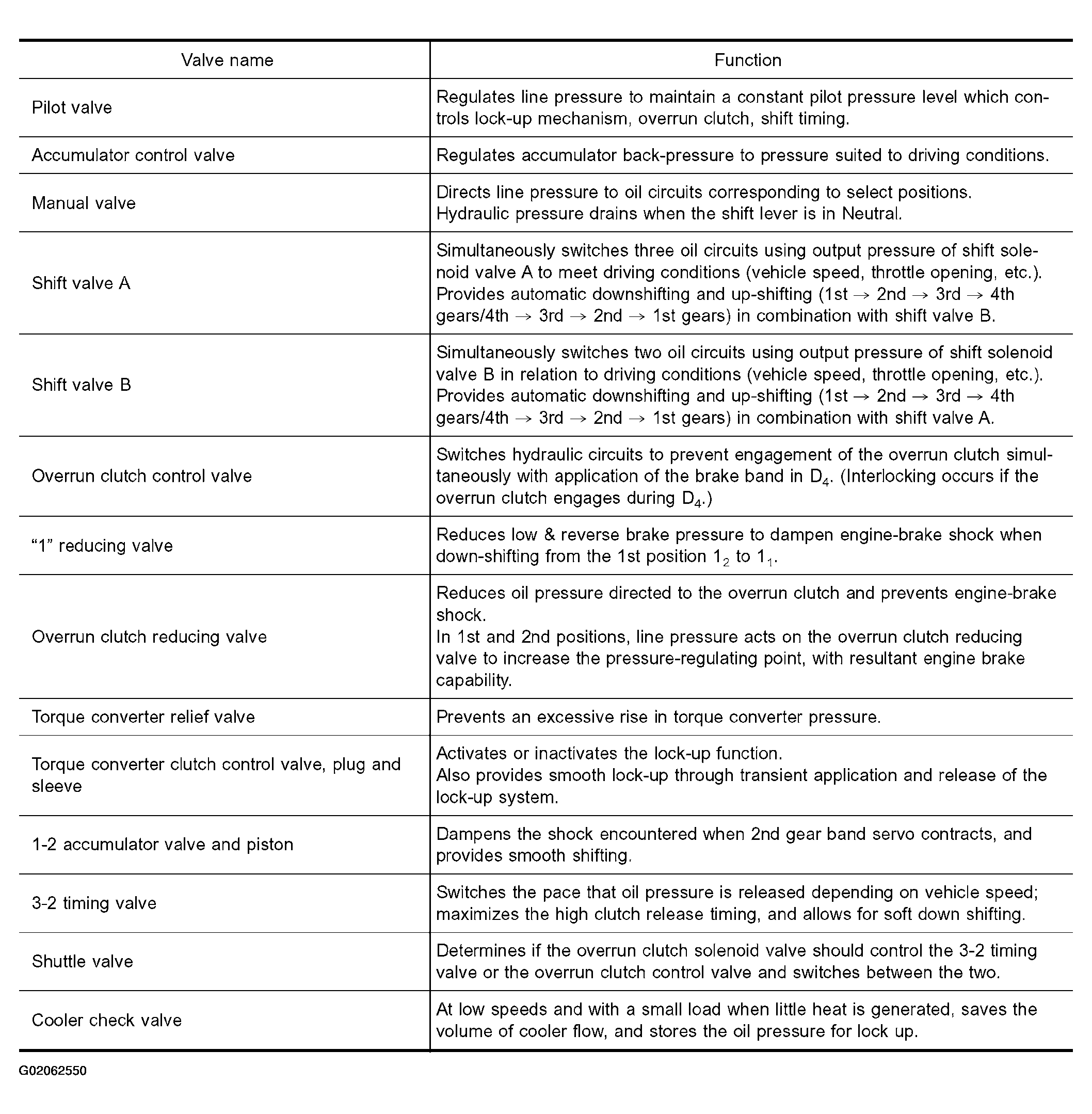

Fig 2: Control Valve Function Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
