FixVault
Home
›
Nissan-Datsun
›
2003
›
Maxima GLE
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transaxle
›
Overhaul
›
Oil Channel
Oil Channel

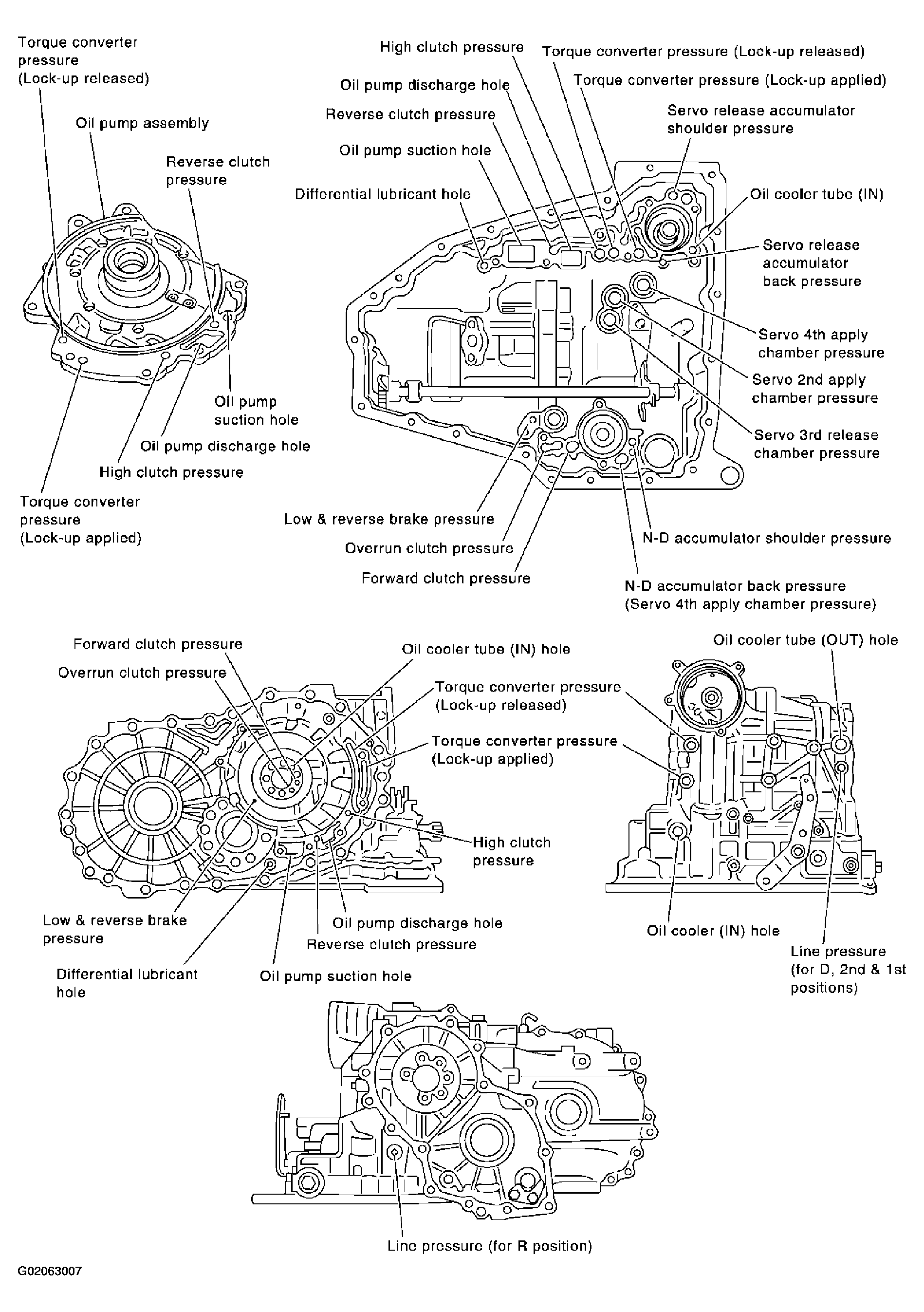

Fig 1: Automatic Transaxle Oil Channel
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
