FixVault
Home › Nissan-Datsun › 2003 › Maxima GLE › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle › Repair For Component Parts › Final Drive › Components

Final Drive: Components

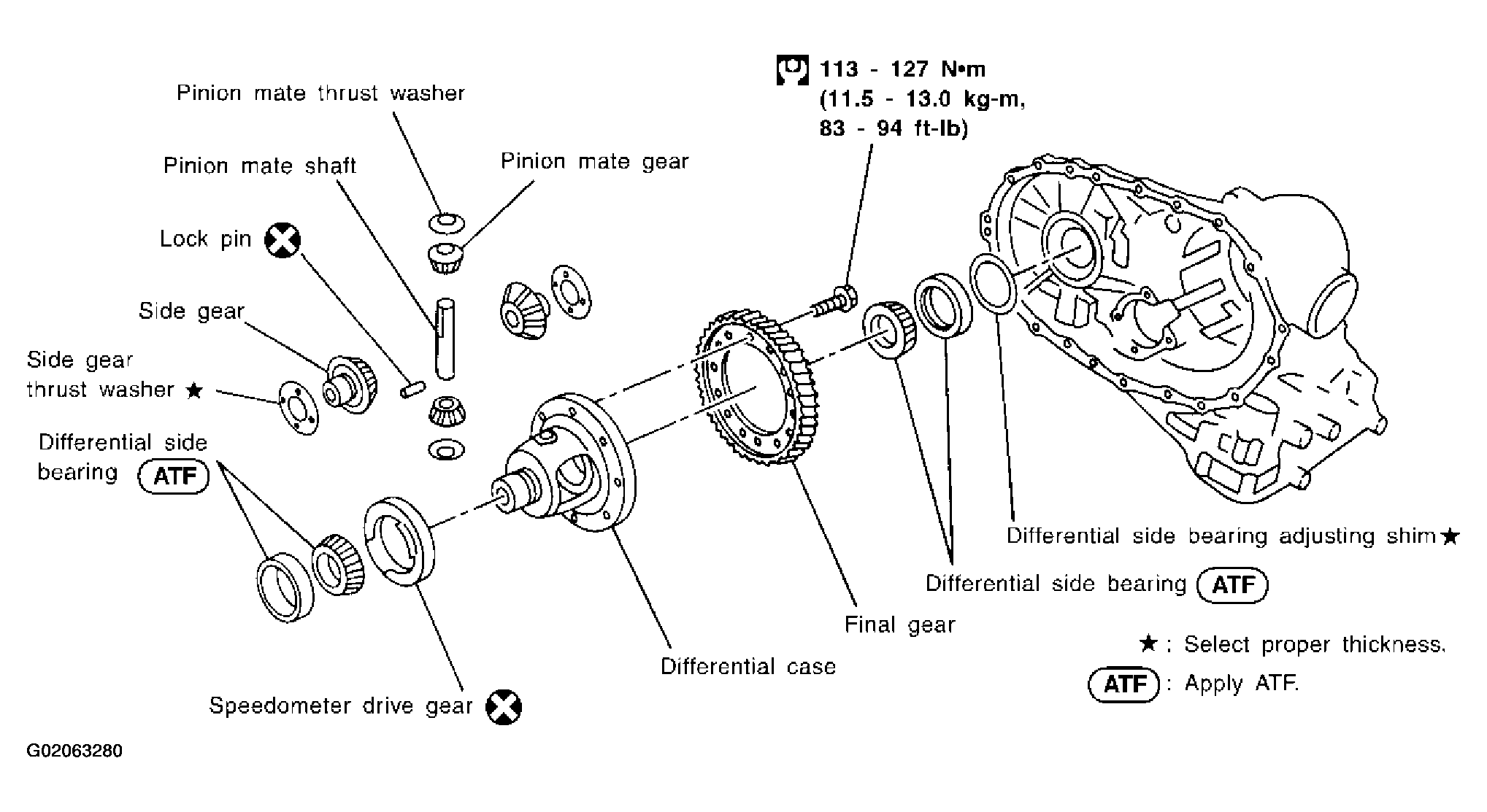

Fig 1: Identifying Final Drive Components
G02063280Courtesy of NISSAN MOTOR CO., U.S.A.
