Manual Shaft: Components

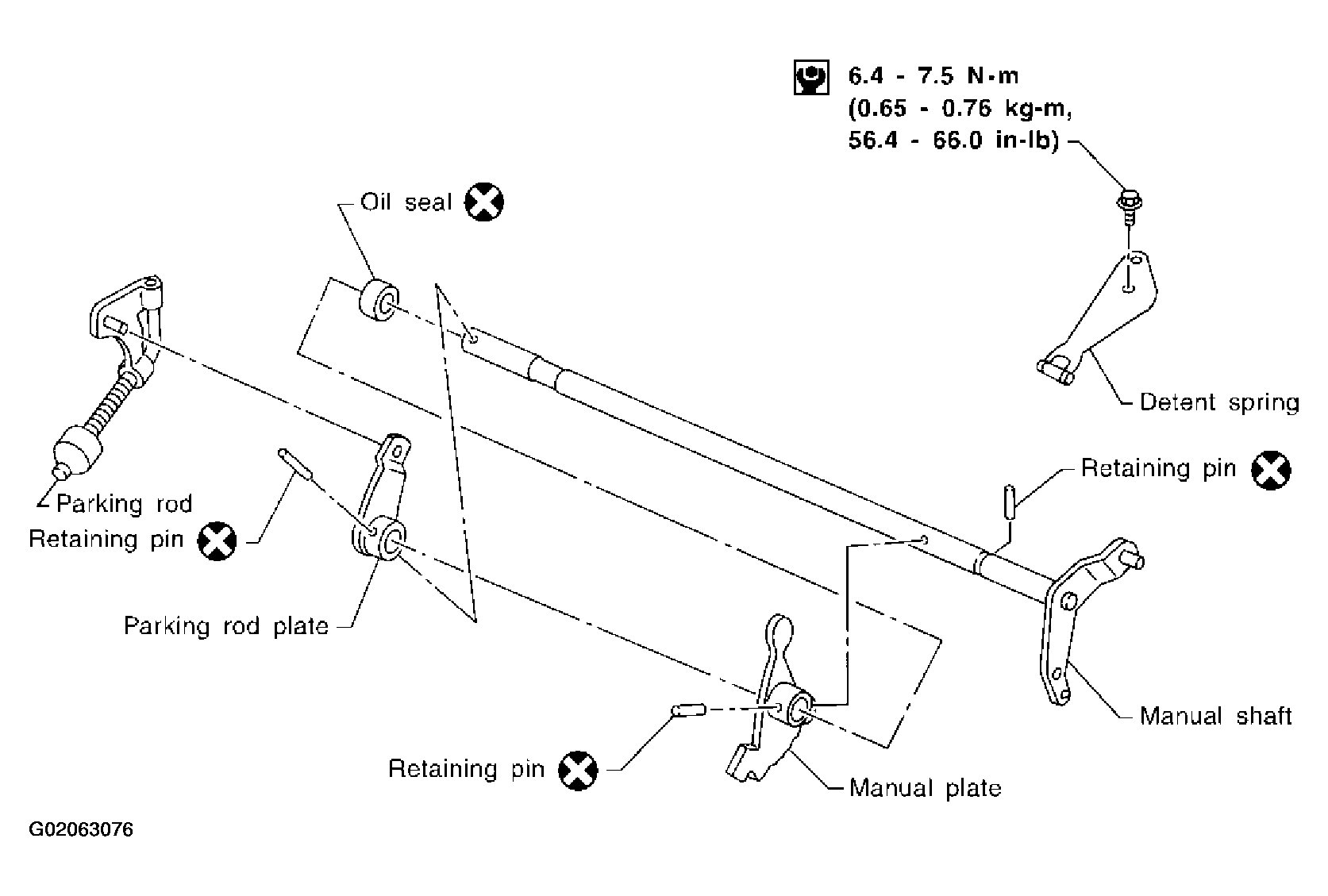

Fig 1: Identifying Manual Shaft Components
G02063076Courtesy of NISSAN MOTOR CO., U.S.A.
