Reverse Clutch: Components

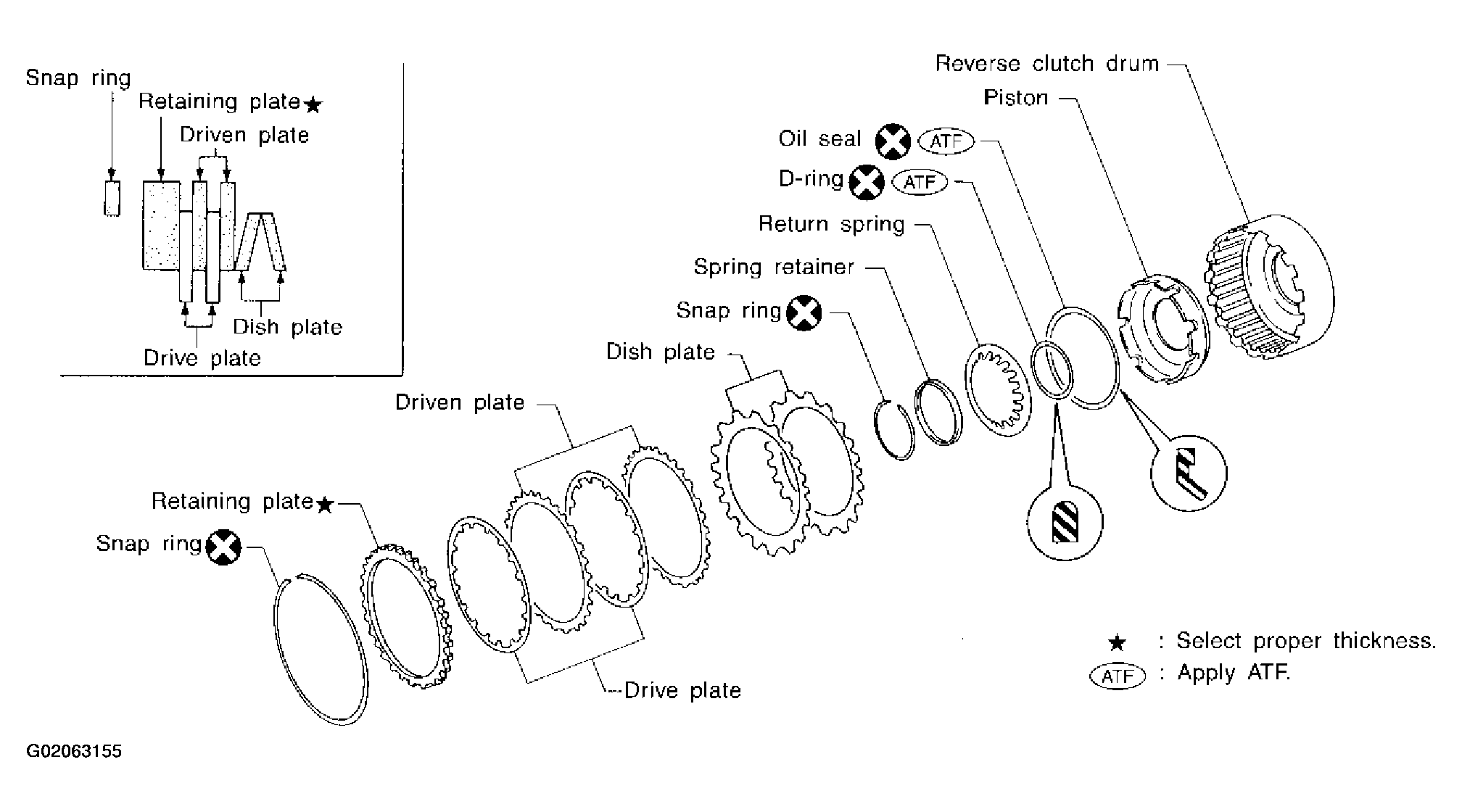

Fig 1: Identifying Reverse Clutch Components
G02063155Courtesy of NISSAN MOTOR CO., U.S.A.
