Keyfob Set Up With CONSULT-II

NOTE: For work support, see WORK SUPPORT  .

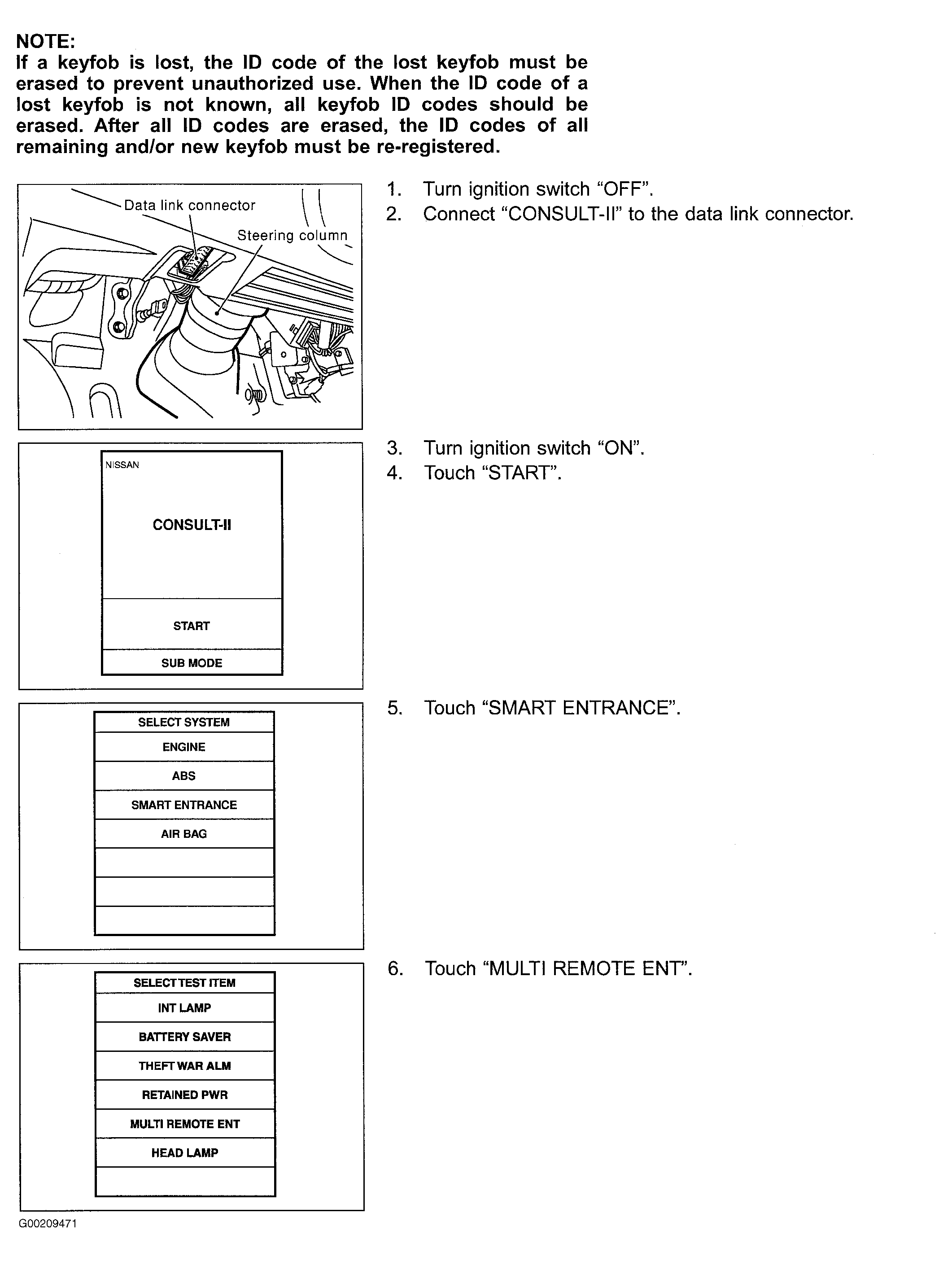

Fig 1: Identifying Keyfob Set Up With CONSULT-II (1 Of 2)
G00209471Courtesy of NISSAN MOTOR CO., U.S.A.

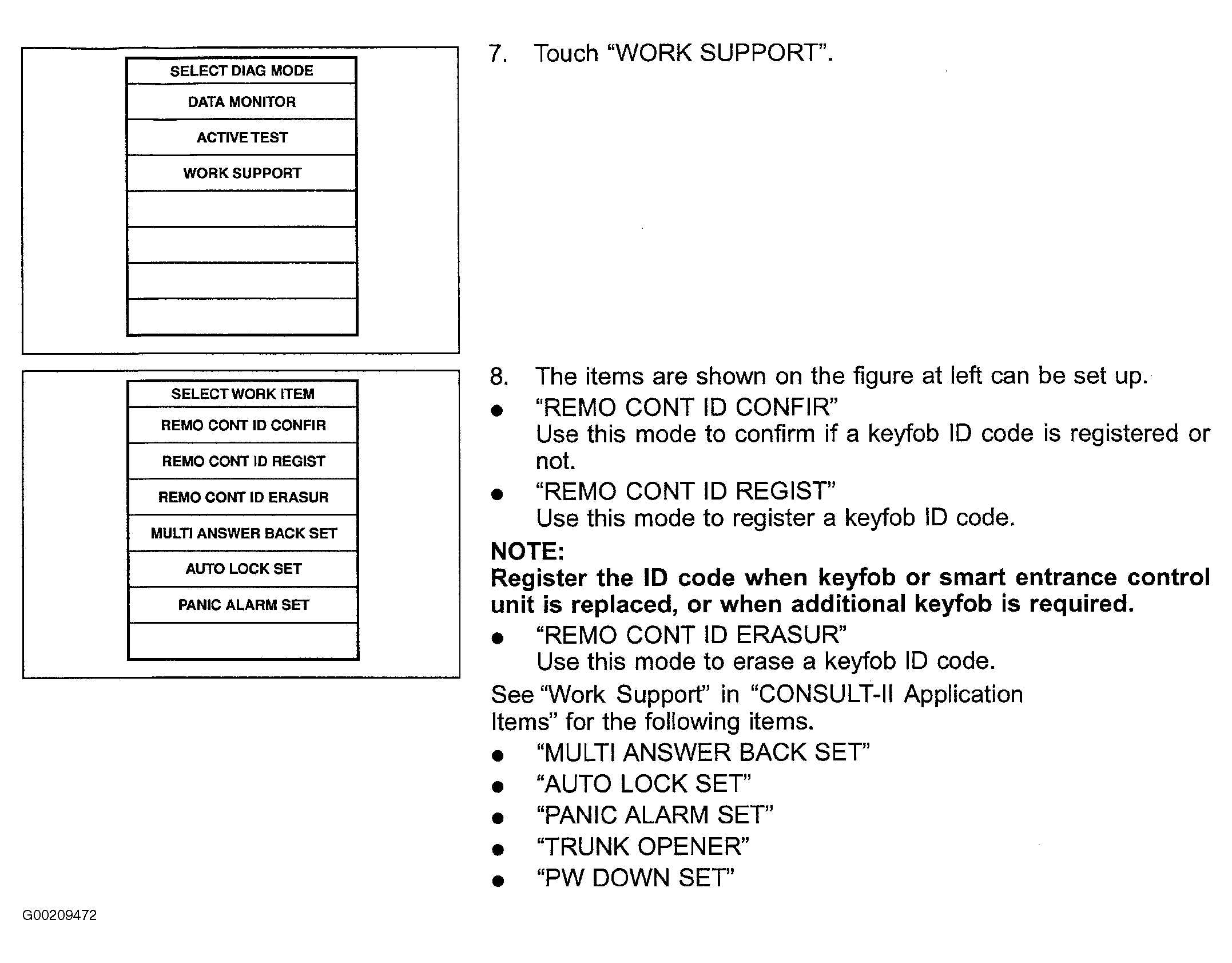

Fig 2: Identifying Keyfob Set Up With CONSULT-II (2 Of 2)
G00209472Courtesy of NISSAN MOTOR CO., U.S.A.
