Door Switch Check

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

For door switch check, see Fig 1 andFig 2

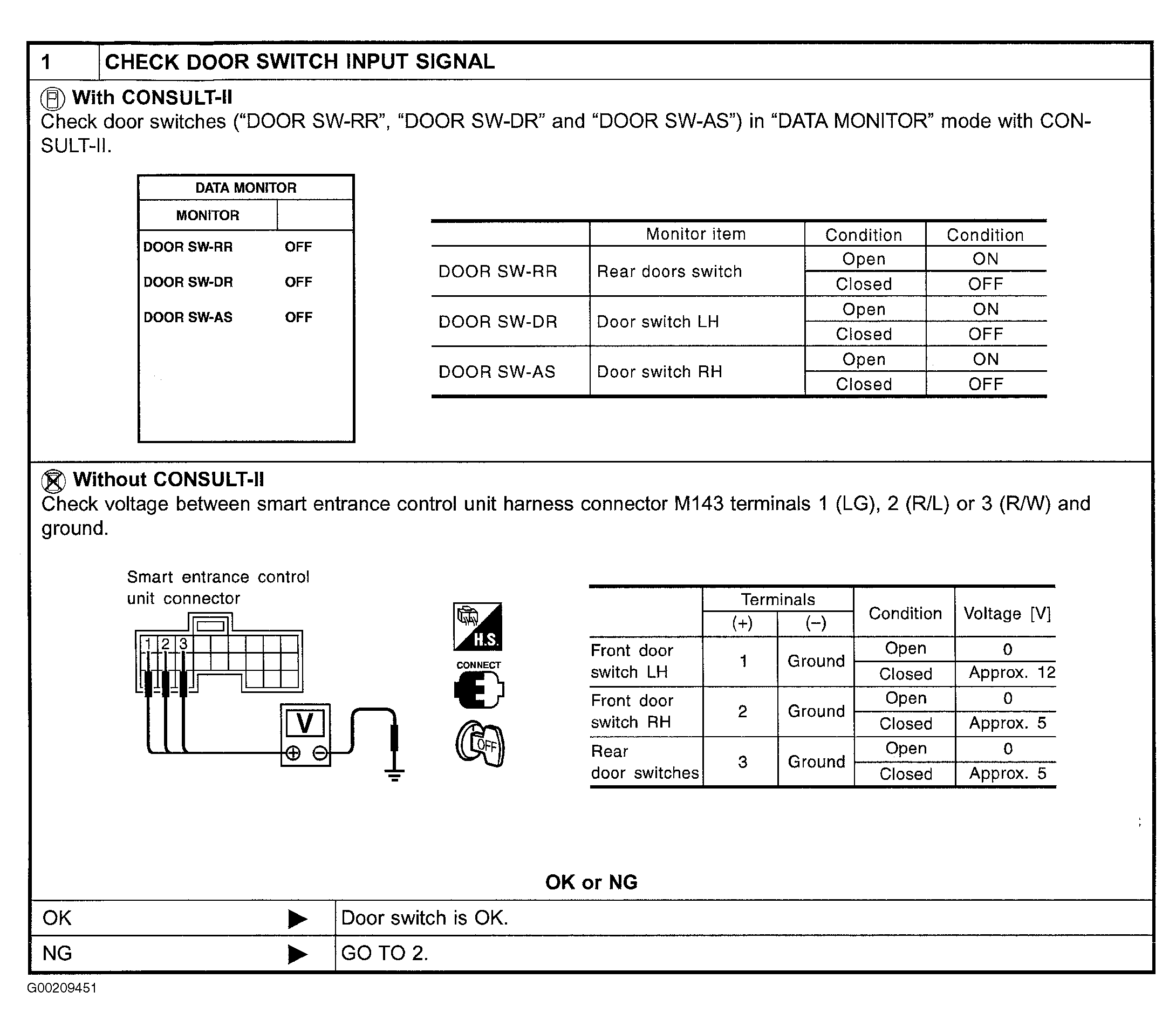

Fig 1: Identifying Door Switch Check, Step 1

G00209451

Courtesy of NISSAN MOTOR CO., U.S.A.

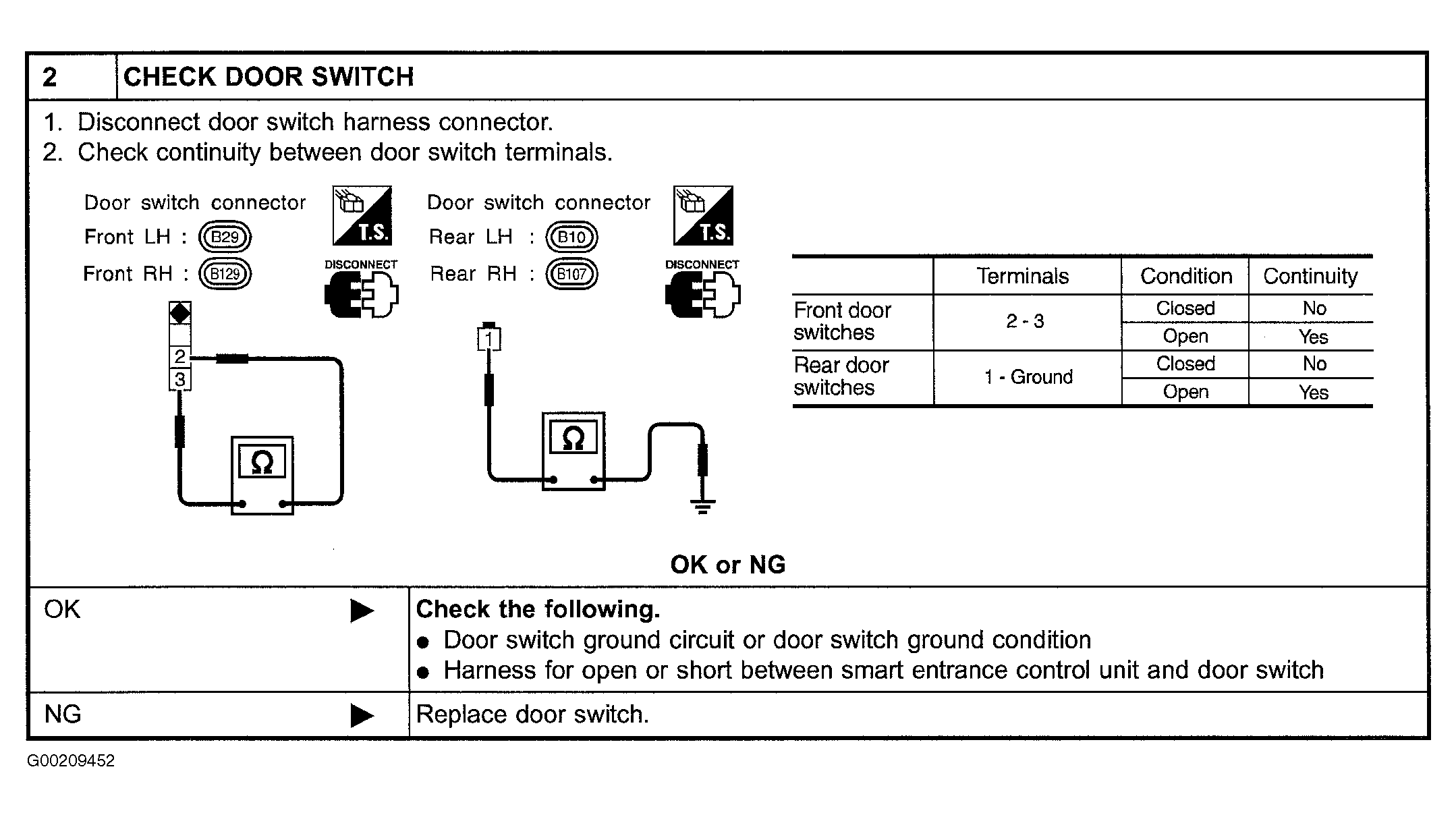

Fig 2: Identifying Door Switch Check, Step 2

G00209452

Courtesy of NISSAN MOTOR CO., U.S.A.
