Nissan-Datsun
›
2003
›
Murano SL, FWD
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel System
›
Fuel Tank
›
Removal And Installation
›
Notes
Removal And Installation: Notes

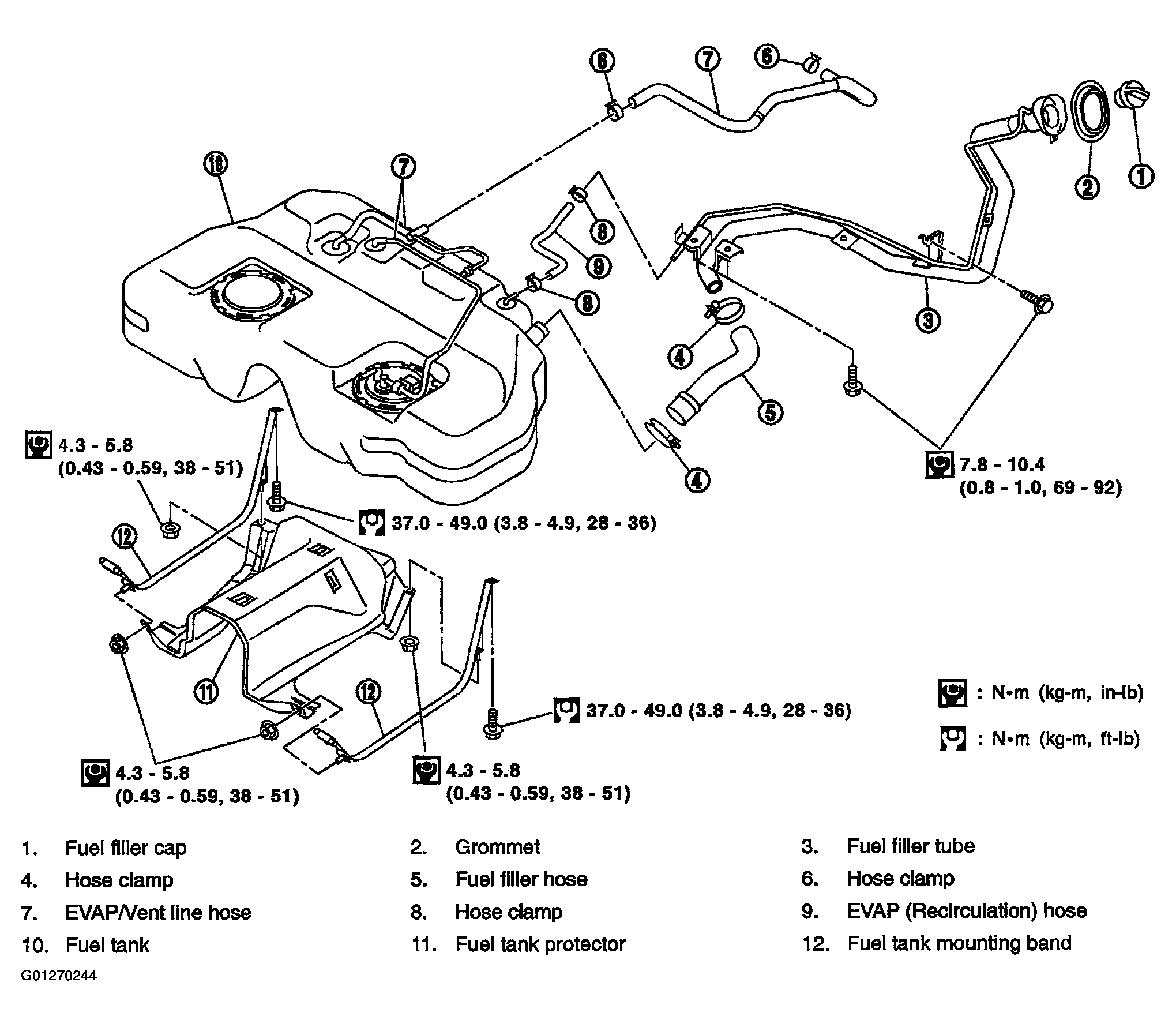

Fig 1: Displaying Fuel Tank Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
