"Multi Remote ENT"

Data Monitor

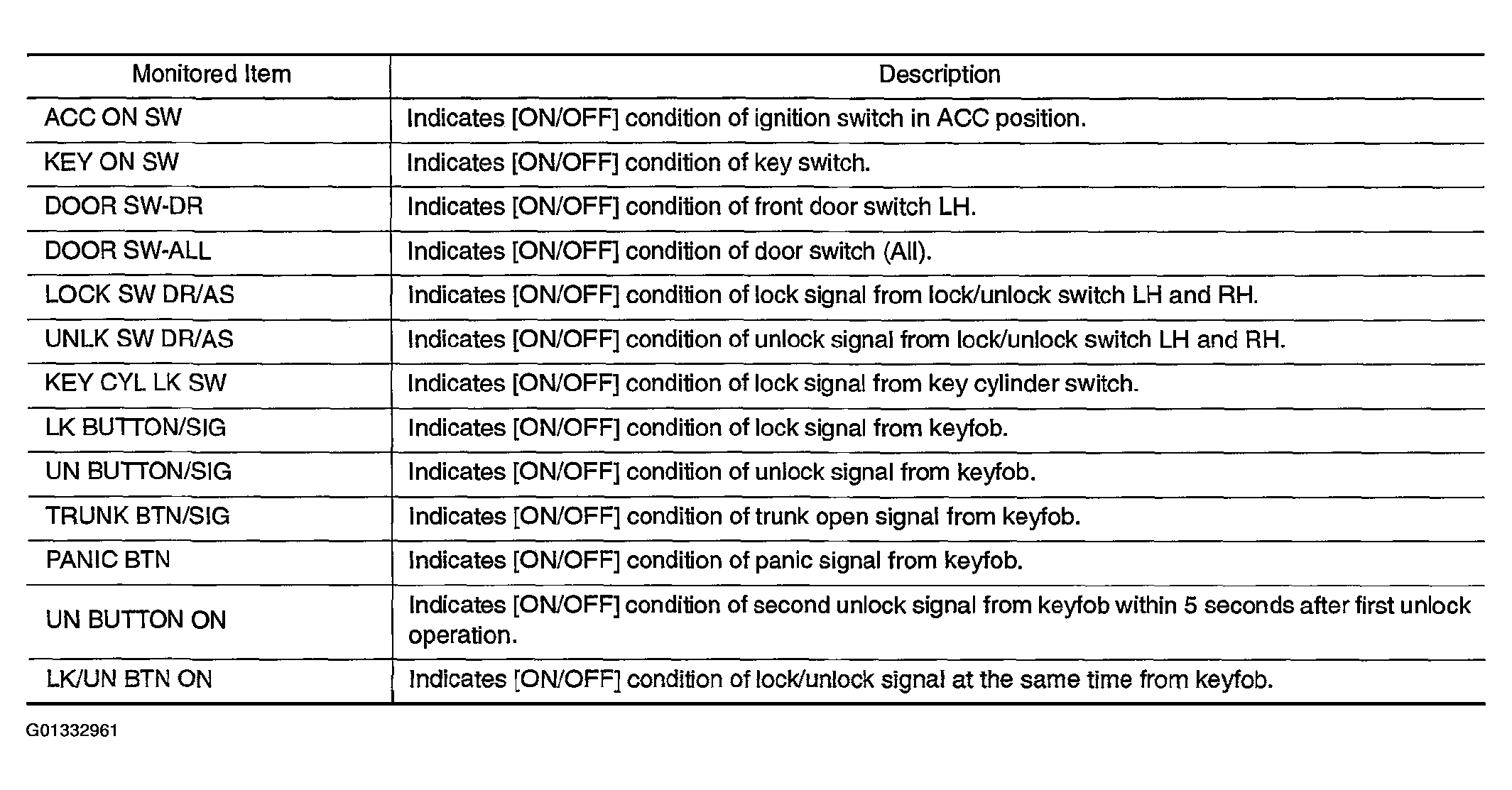

Fig 1: CONSULT-II Application Item Description Chart (Data Monitor Mode)

Courtesy of NISSAN MOTOR CO., U.S.A.

Active Test

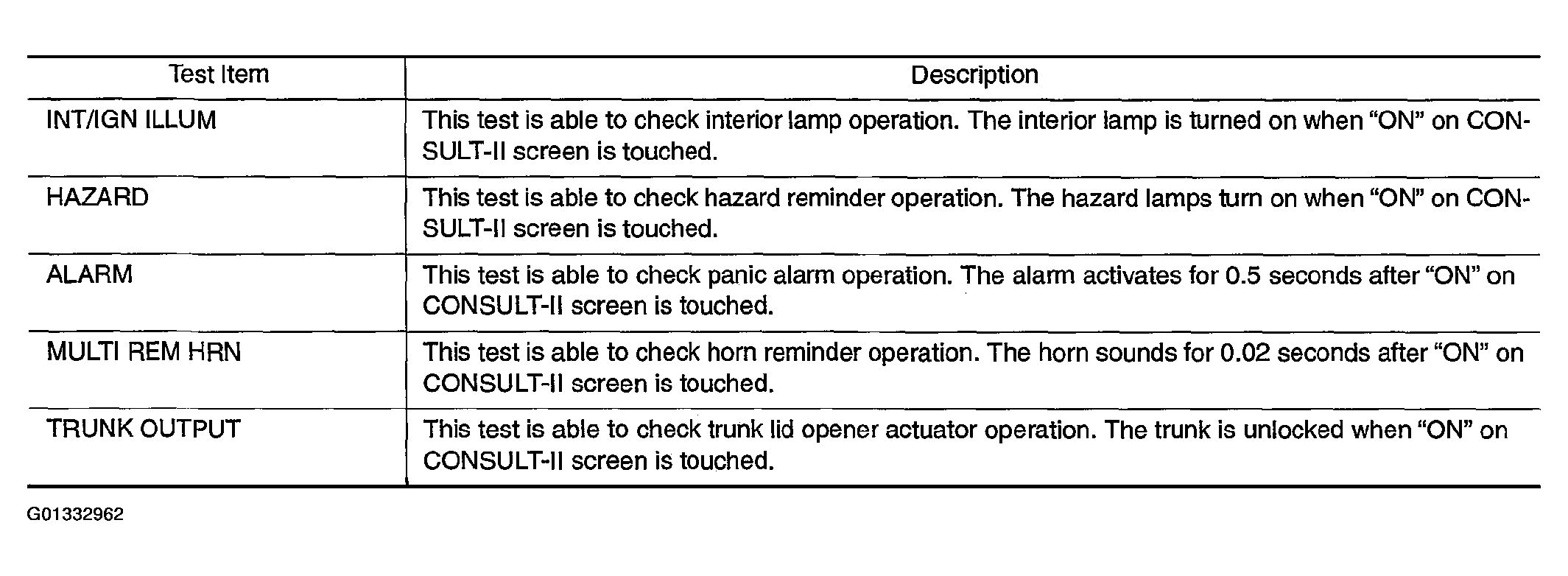

Fig 2: CONSULT-II Application Item Description Chart (Active Test Mode)

Courtesy of NISSAN MOTOR CO., U.S.A.

Work Support

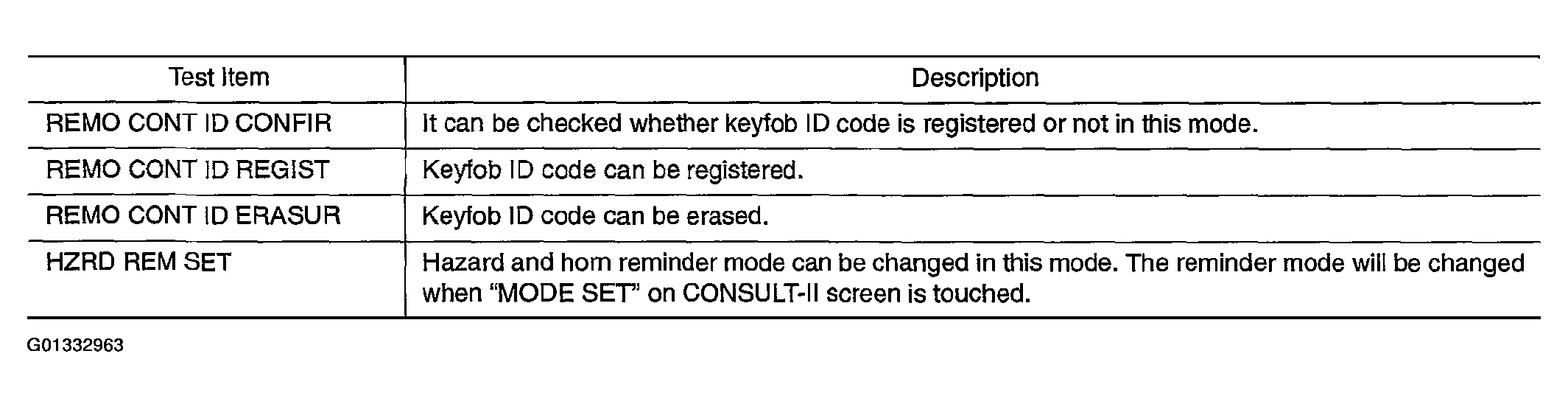

Fig 3: CONSULT-II Application Item Description Chart (Work Support Mode)

Courtesy of NISSAN MOTOR CO., U.S.A.
