Smart Entrance Control Unit: Description: Input/Output

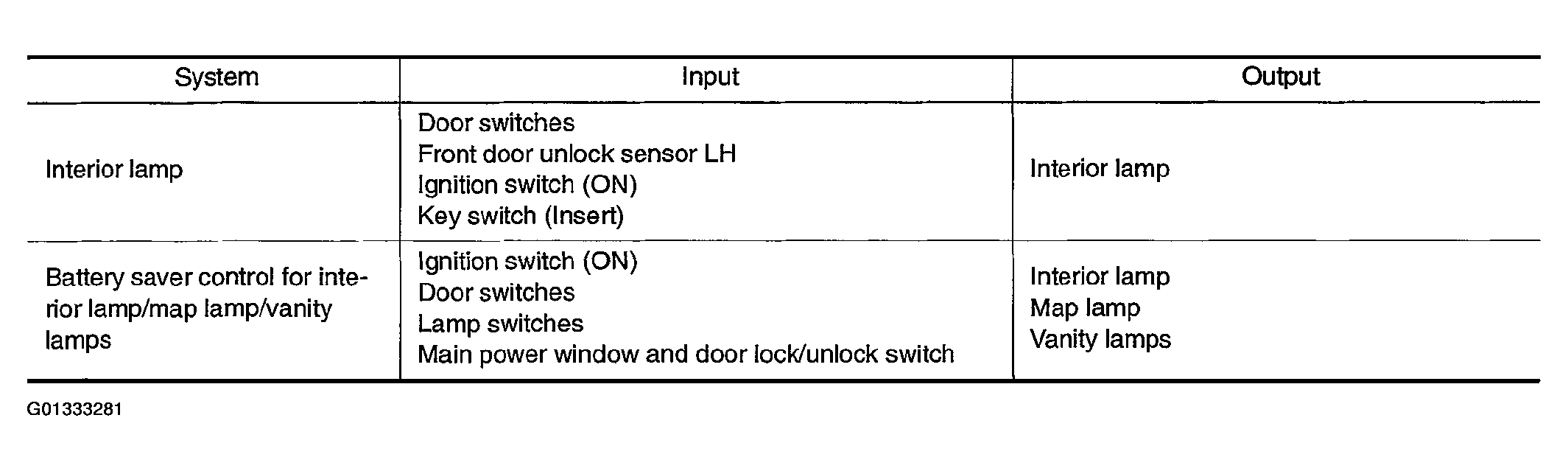

Fig 1: Smart Entrance Control Unit System Input/Output Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

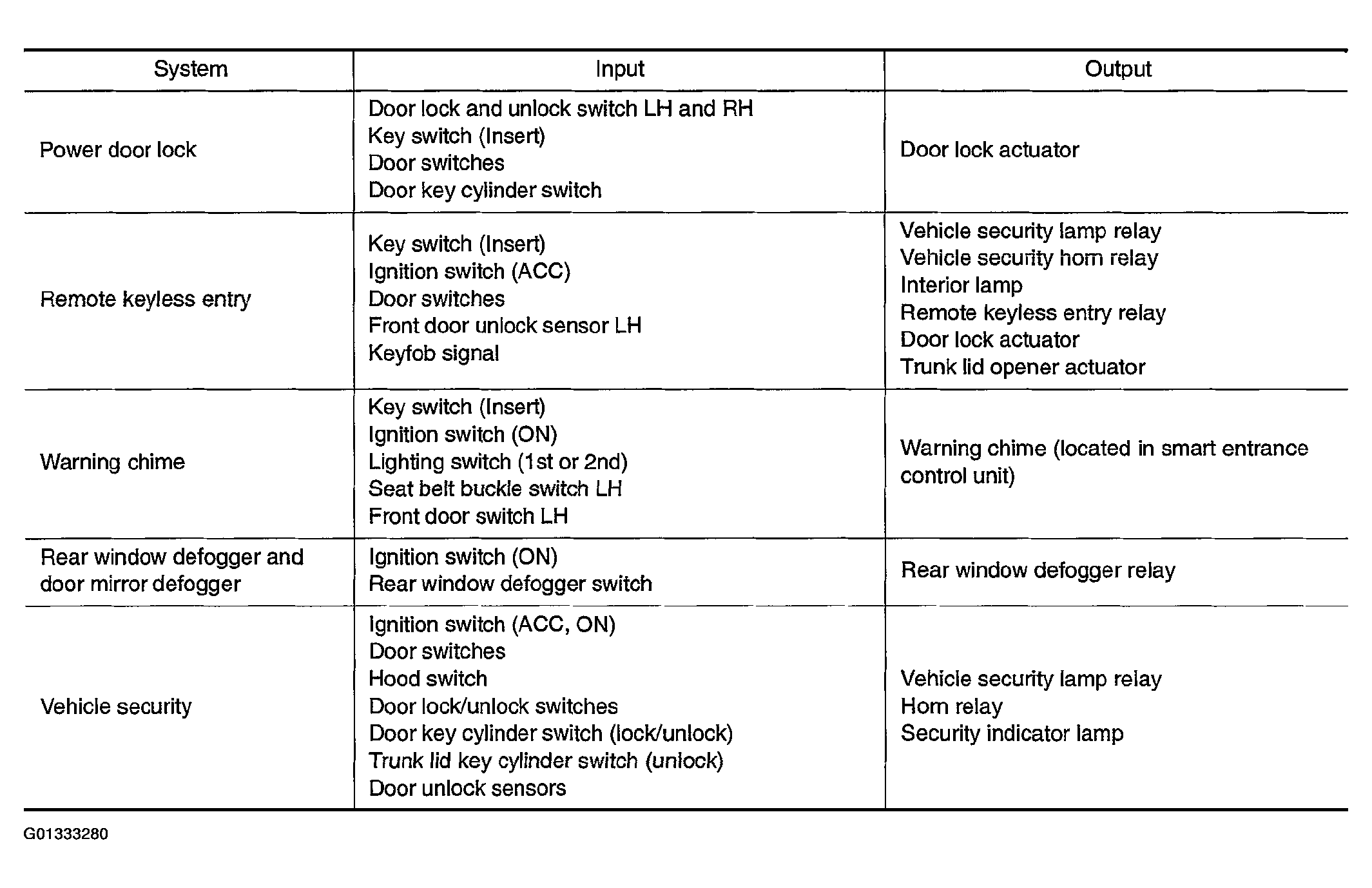

Fig 2: Smart Entrance Control Unit System Input/Output Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
