Door Locks
›
Remote Keyless Entry System
›
Remote Keyless Entry System
›
Wiring Diagram - KEYLES -
›
Fig. 1
Fig. 1

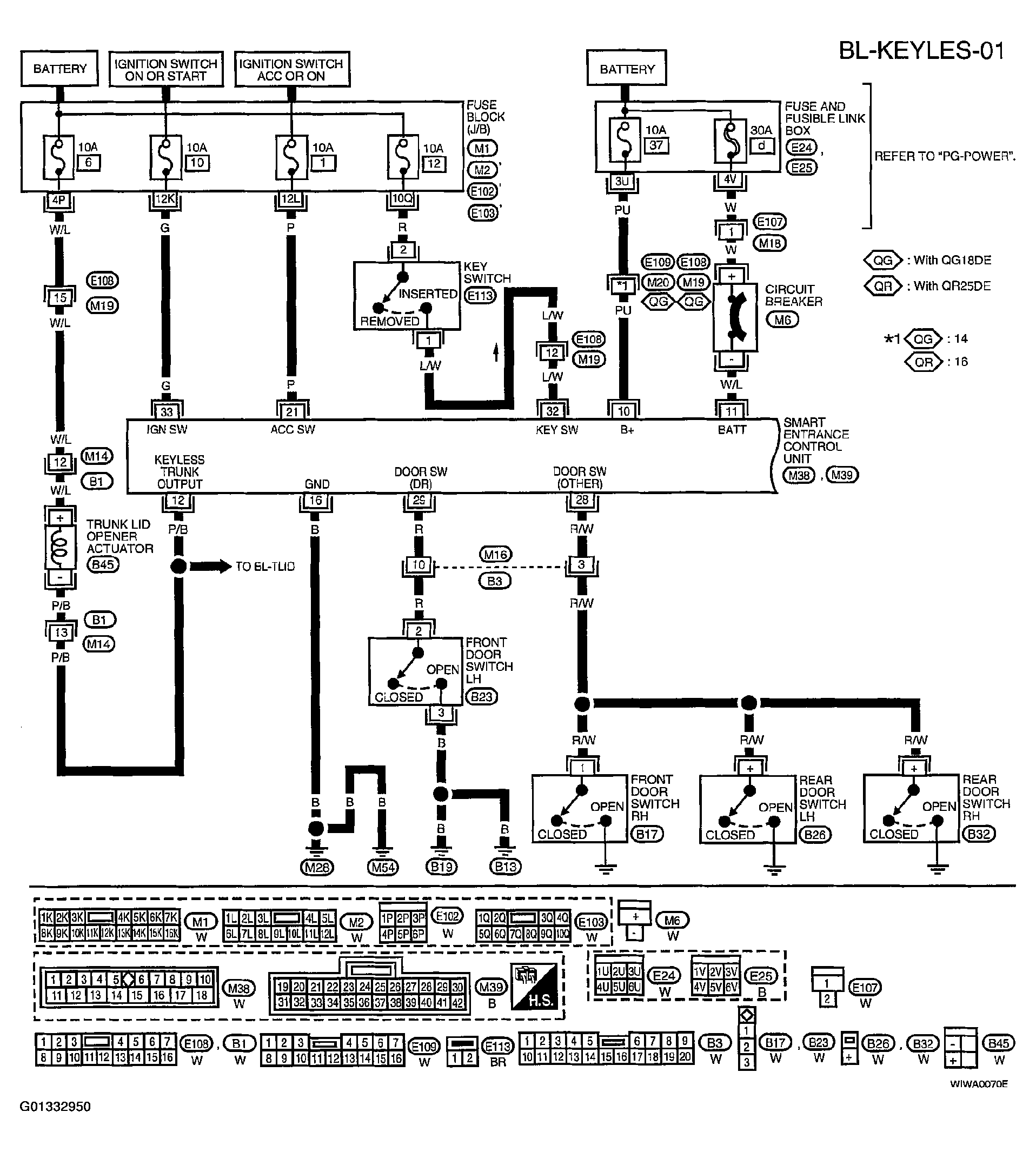

Fig 1: Remote Keyless Entry System Wiring Diagram And Identifying Connectors (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

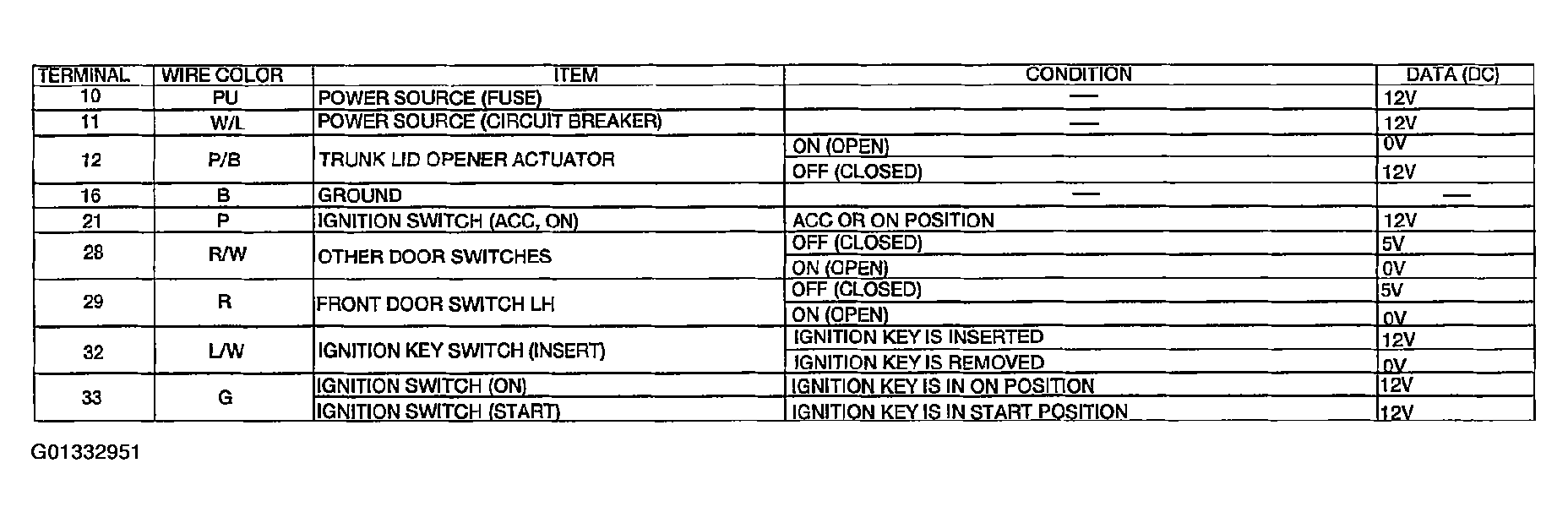

Fig 2: Smart Entrance Control Unit And Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
