Valve Clearance: Pathfinder

NOTE: On Pathfinder and QX4 (3.5L), check and adjust valve clearance when engine is cold.

NOTE: For available lifter selection, see Fig 4.

For valve clearance inspection, see Fig 1 and Fig 2 . For adjustment, see Fig 3.

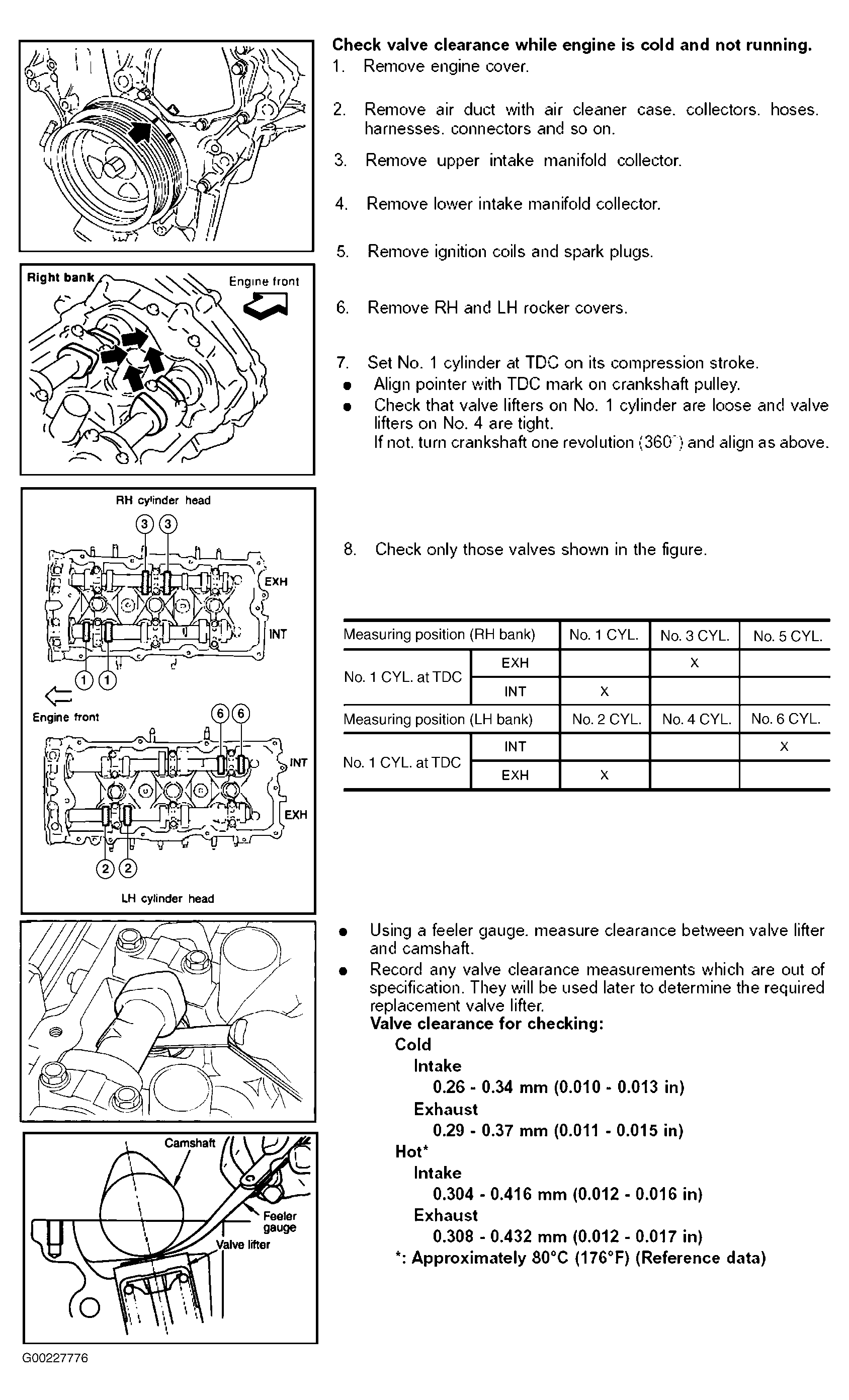

Fig 1: Inspecting Valve Clearance (Pathfinder & QX4 - 1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

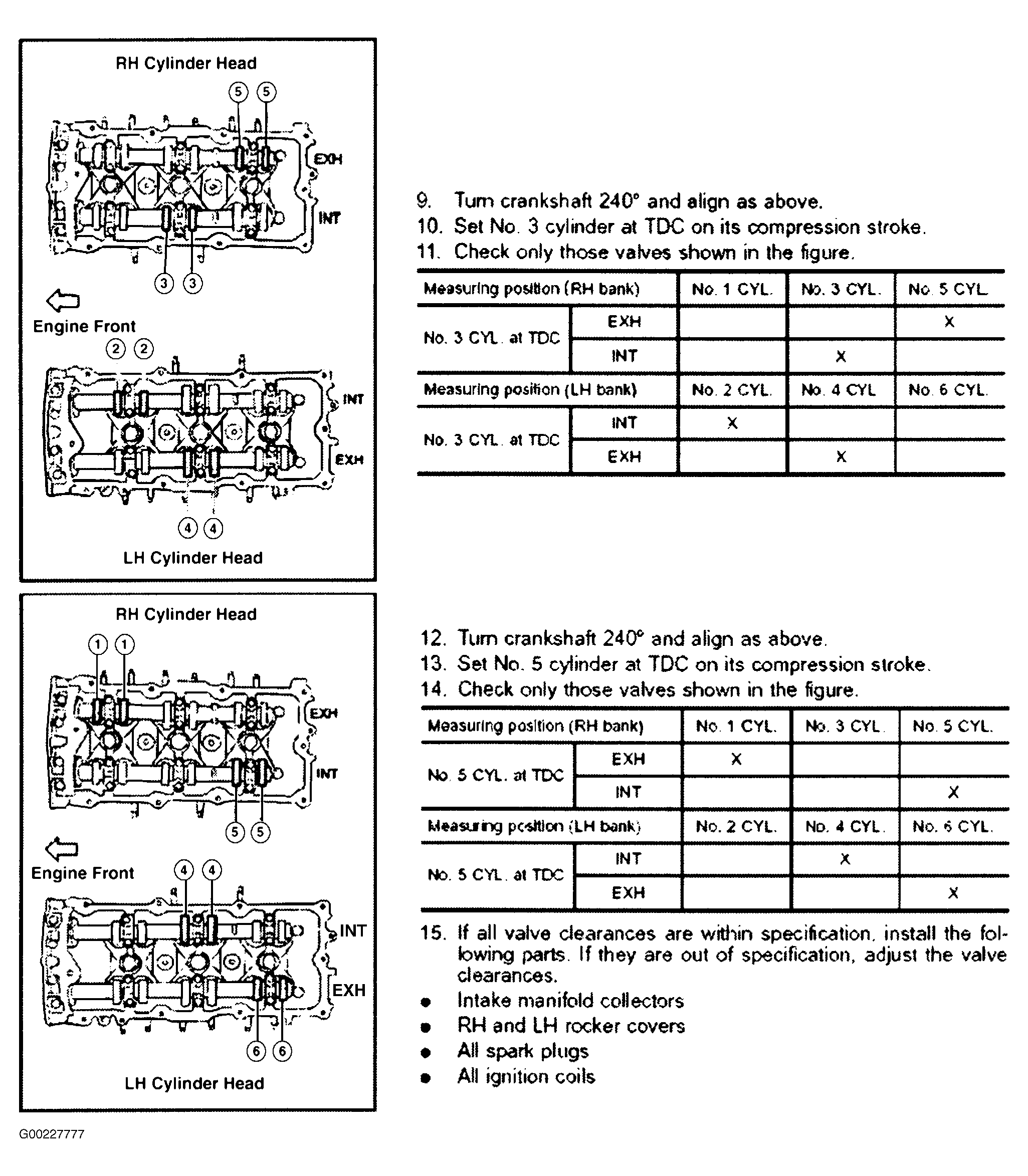

Fig 2: Inspecting Valve Clearance (Pathfinder & QX4 - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

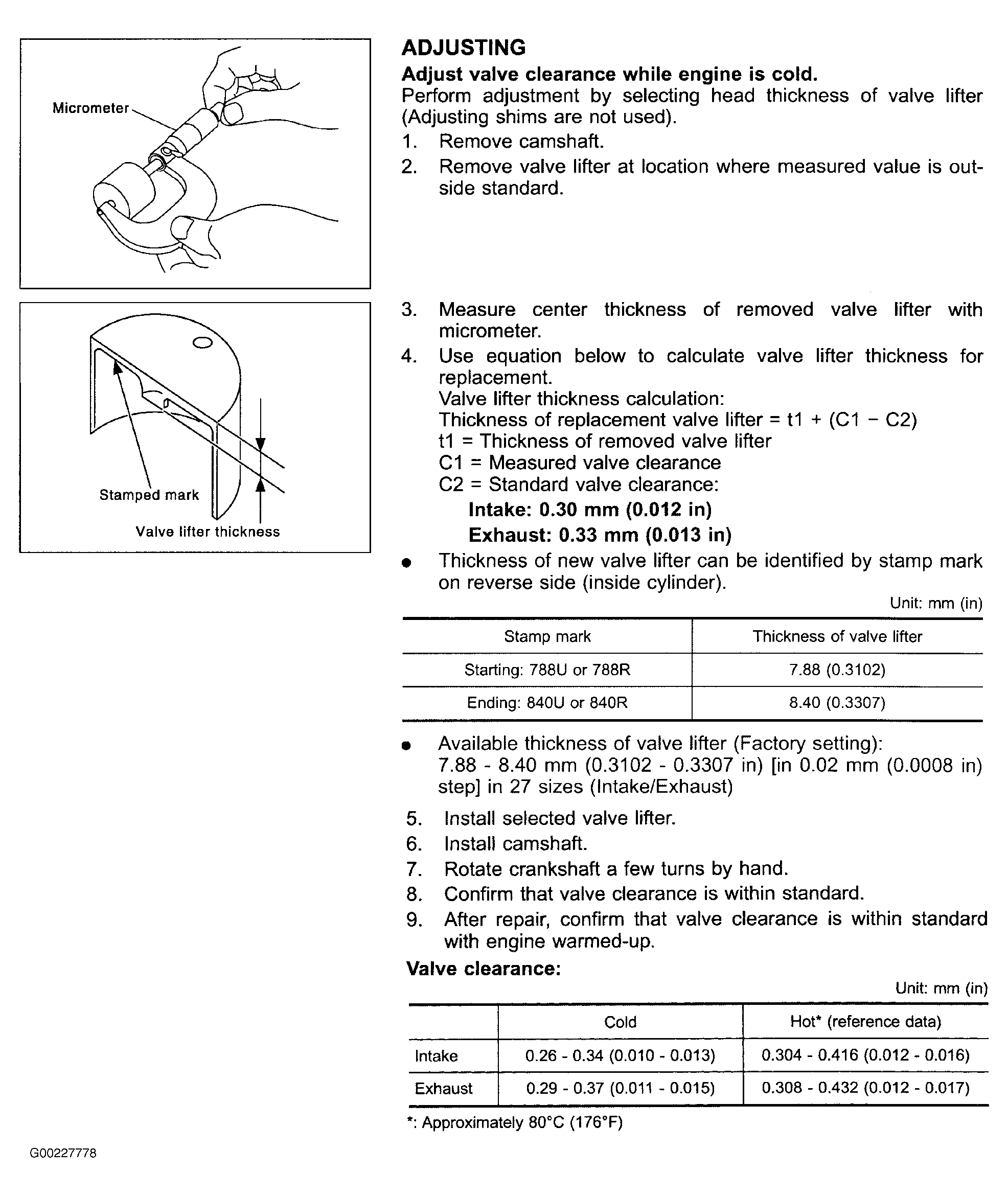

Fig 3: Adjusting Valves (Pathfinder & QX4)

Courtesy of NISSAN MOTOR CO., U.S.A.

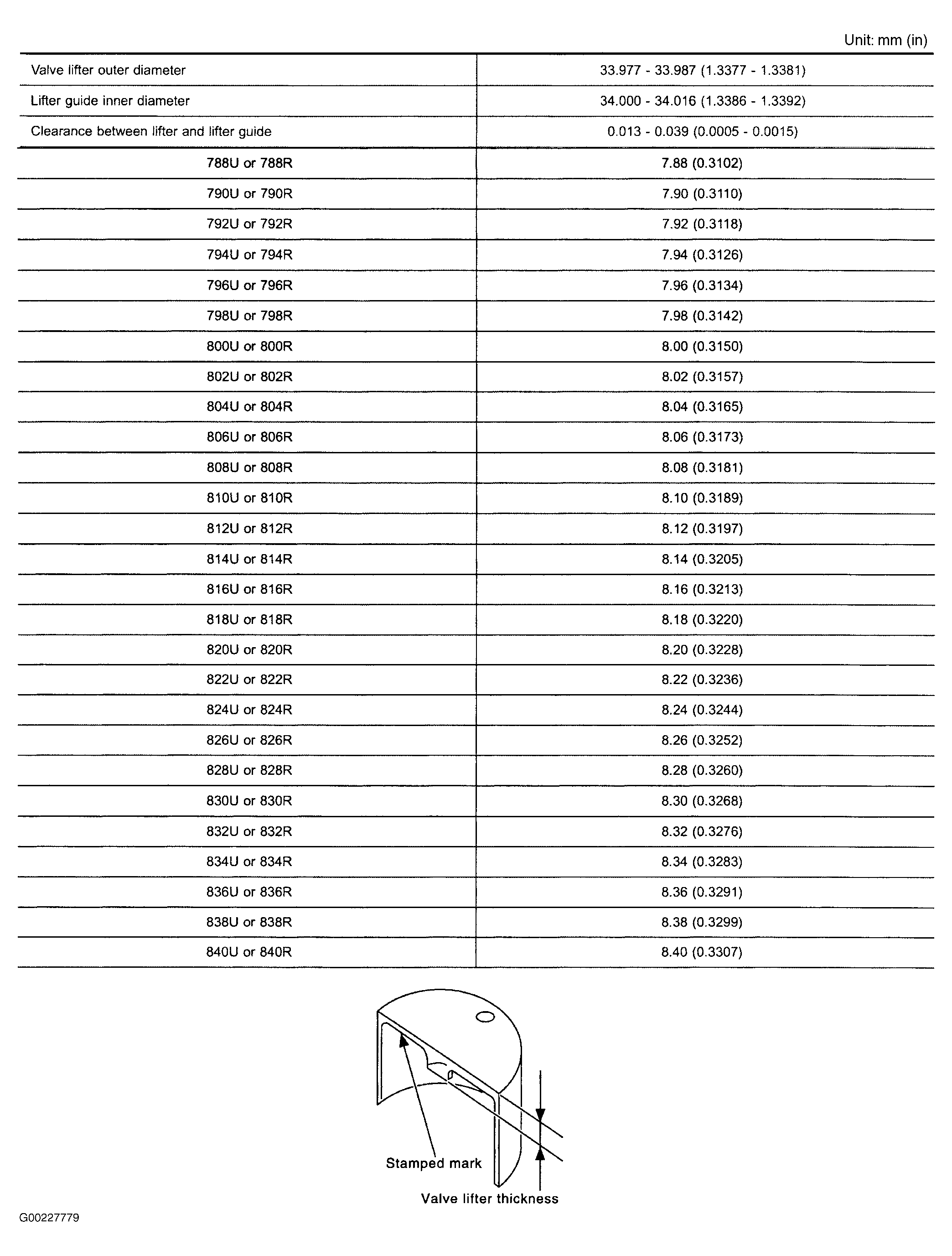

Fig 4: Identifying Available Valve Lifters (Shimless Type)

Courtesy of NISSAN MOTOR CO., U.S.A.
