DTC P0181: Fuel Tank Temperature Sensor Circuit Range/Performance Problem
›
Component Inspection
Component Inspection
For component inspection, see

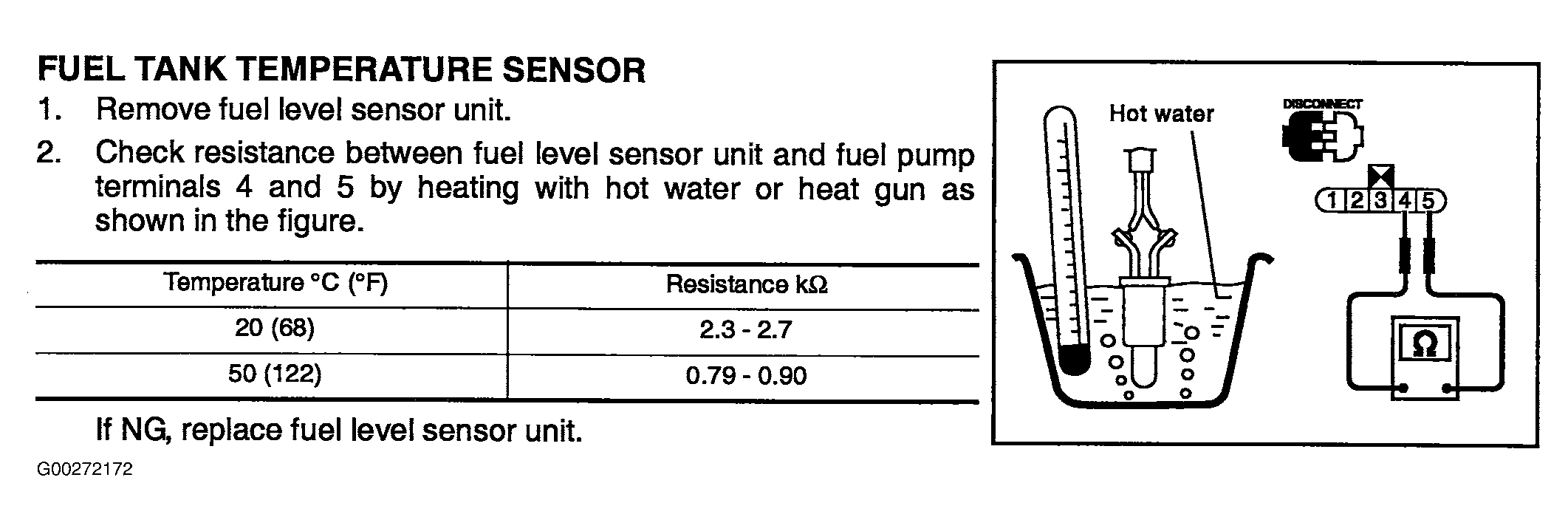

Fig 1
.
Fig 1: DTC P0181 Component Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
