Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 4 .

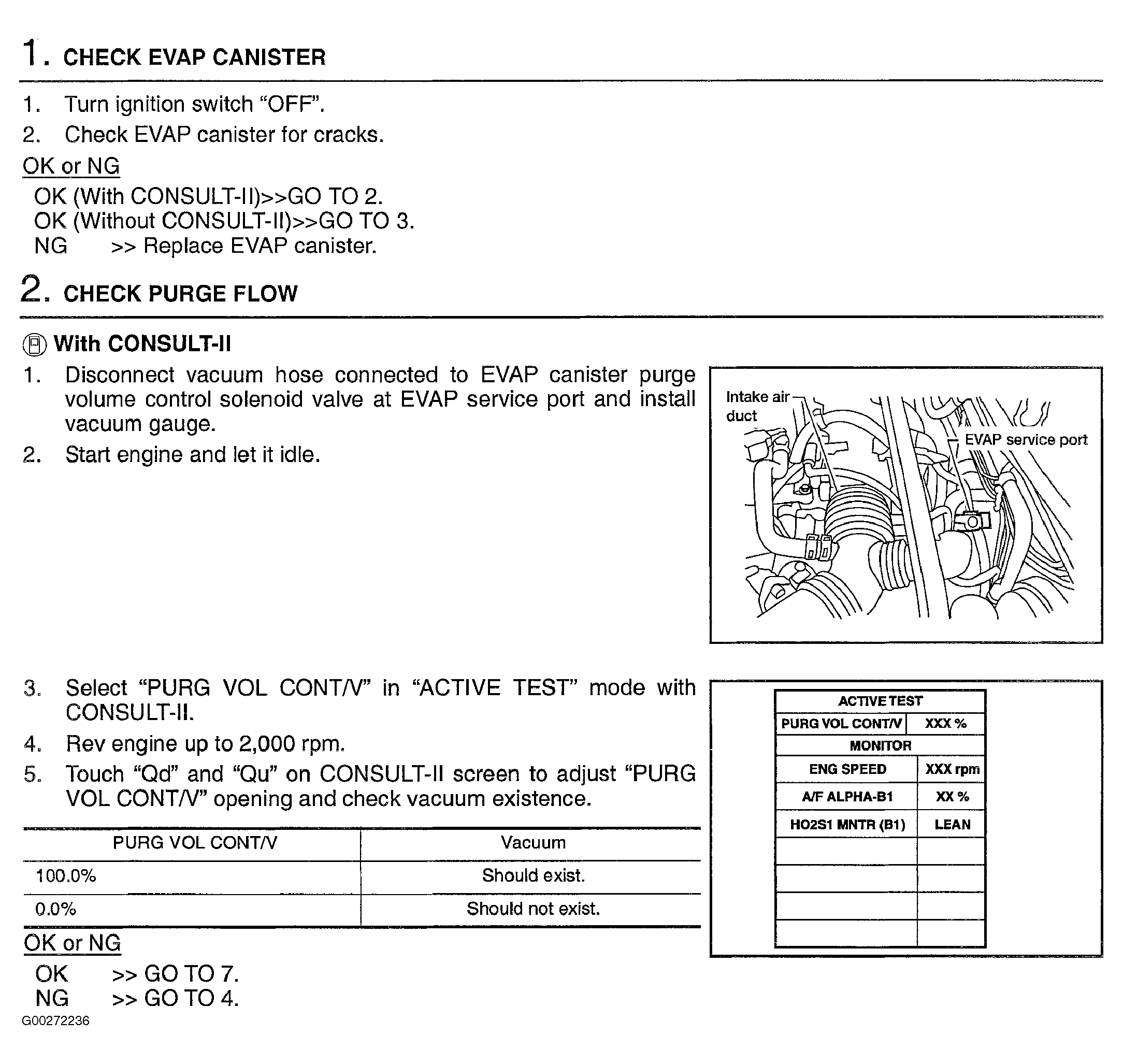

Fig 1: DTC P0441 Diagnostic Procedure (Steps 1 & 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

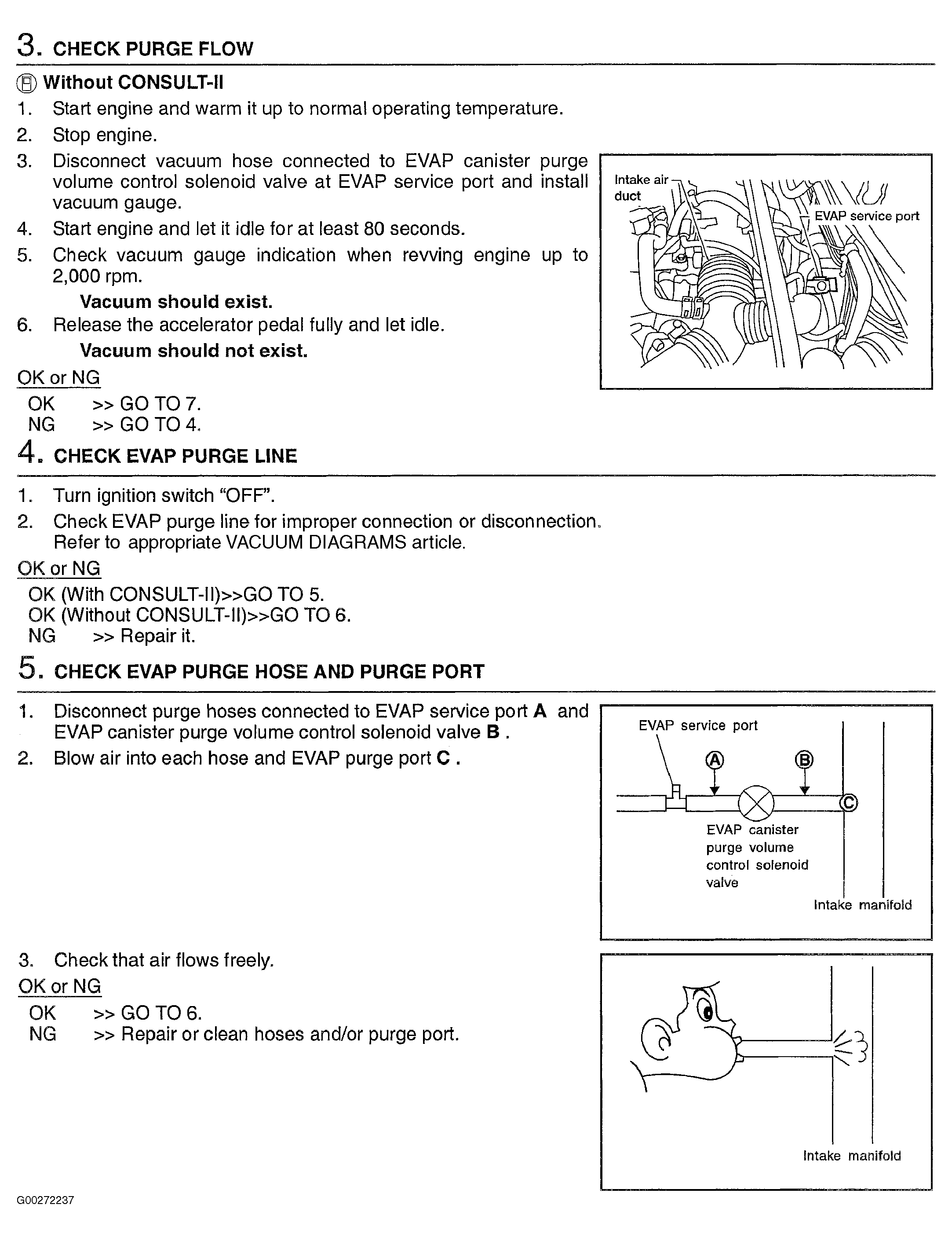

Fig 2: DTC P0441 Diagnostic Procedure (Steps 3-5)

Courtesy of NISSAN MOTOR CO., U.S.A.

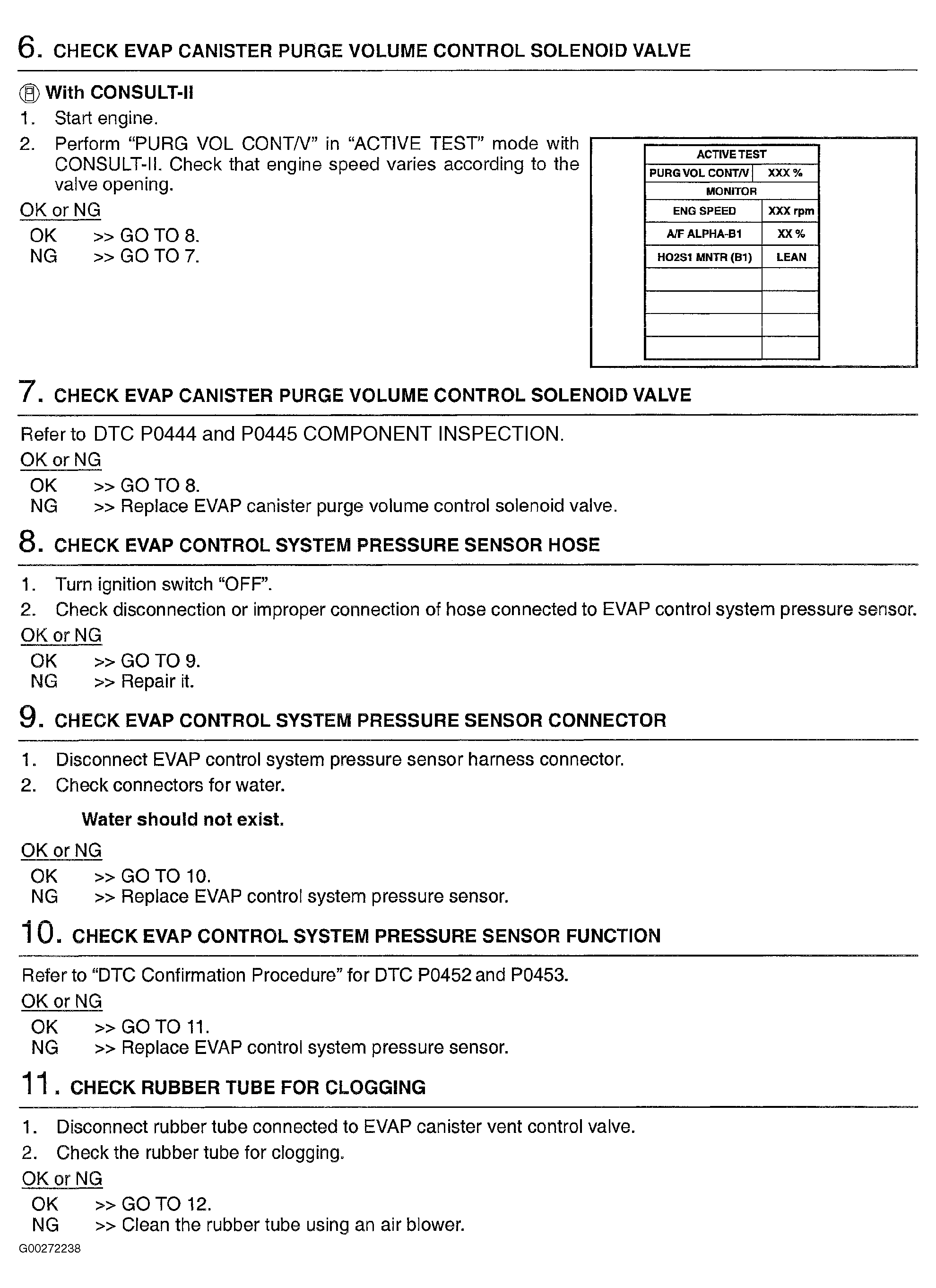

Fig 3: DTC P0441 Diagnostic Procedure (Steps 6-11)

Courtesy of NISSAN MOTOR CO., U.S.A.

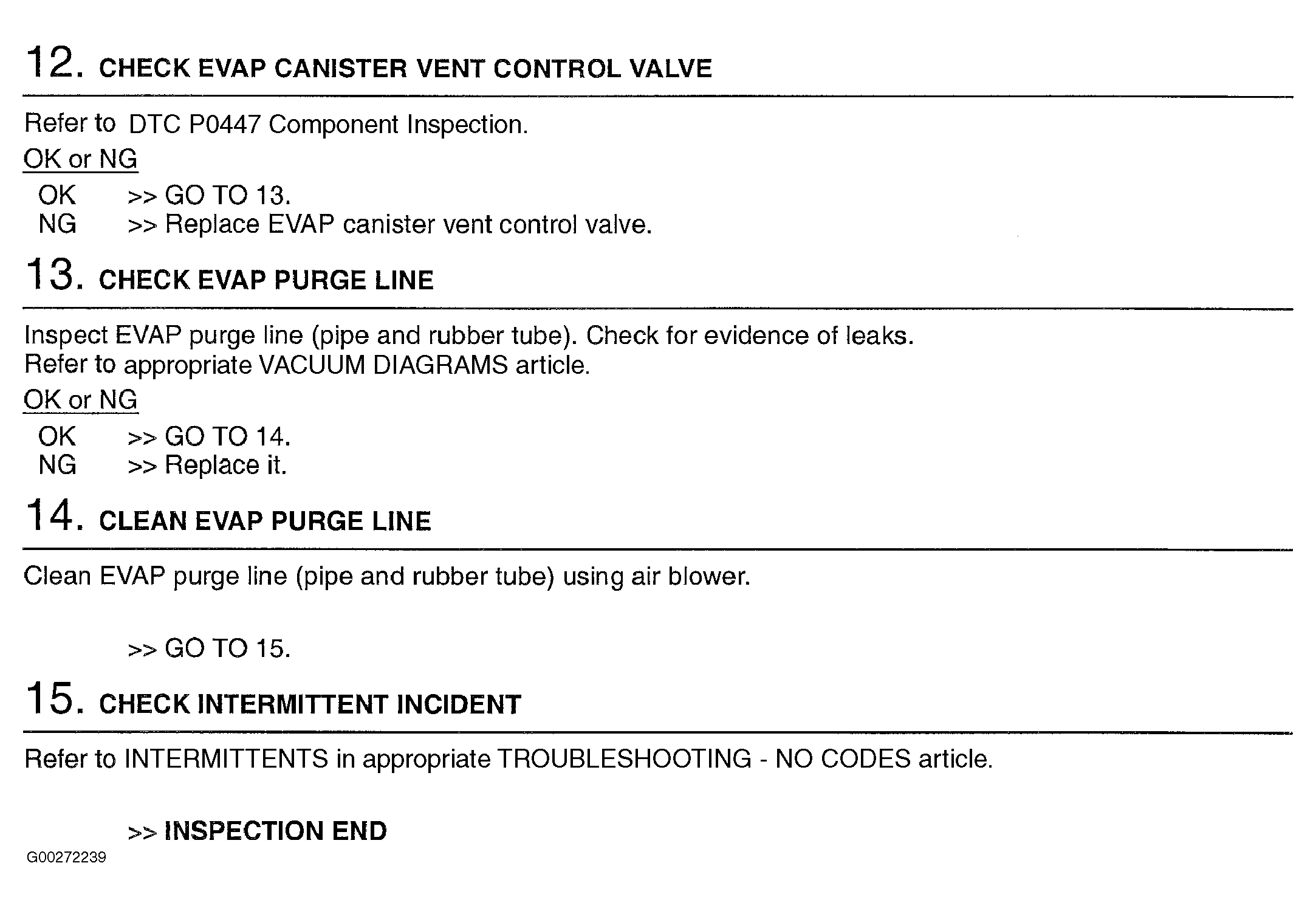

Fig 4: DTC P0441 Diagnostic Procedure (Steps 12-15)

Courtesy of NISSAN MOTOR CO., U.S.A.
