Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "ABS".

    If "ABS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT "

  2. Touch "ACTIVE TEST".
  3. Test item selection screen is displayed.
  4. Touch necessary test item.

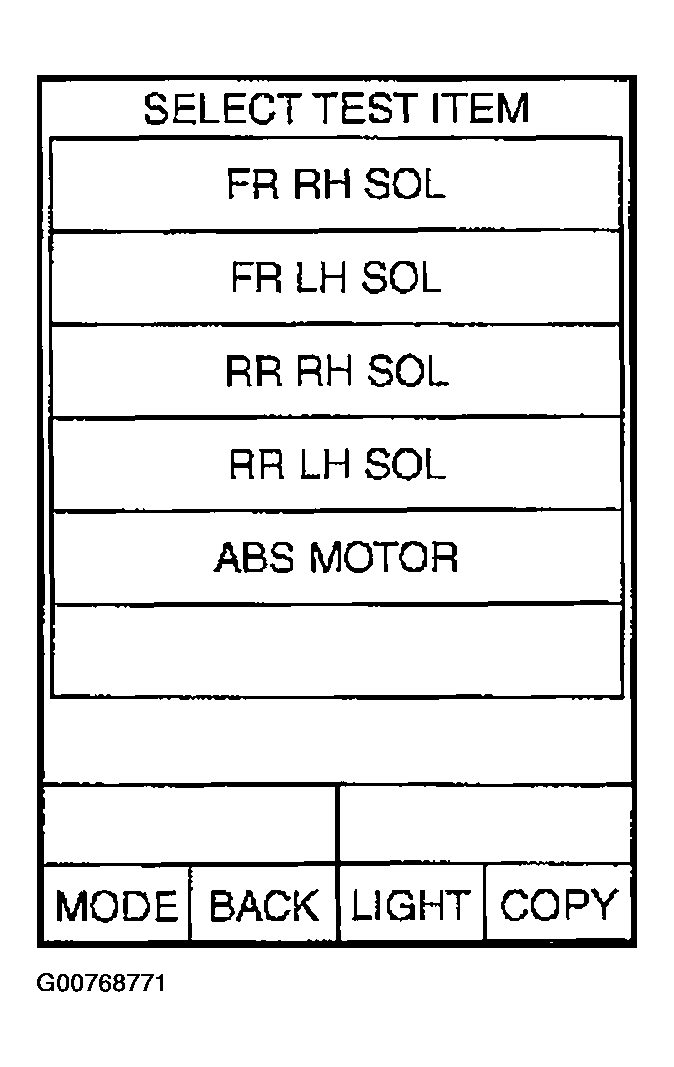

    Fig 1: CONSULT-II SELECT TEST ITEM Display Screen
    G00768771Courtesy of NISSAN MOTOR CO., U.S.A.
  5. With "SELECT TEST SIGNALS" display shown in reverse, touch "START".
  6. "ACTIVE TEST" screen will be displayed, so conduct following test.
