Section 1434 (Body, Lock & Security System)
›
Intelligent Key System
›
Trouble Diagnosis Symptom Chart
›
Engine Start Function Malfunction
›
Intelligent Key Operation Inspection
Intelligent Key Operation Inspection
WARNING:
This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

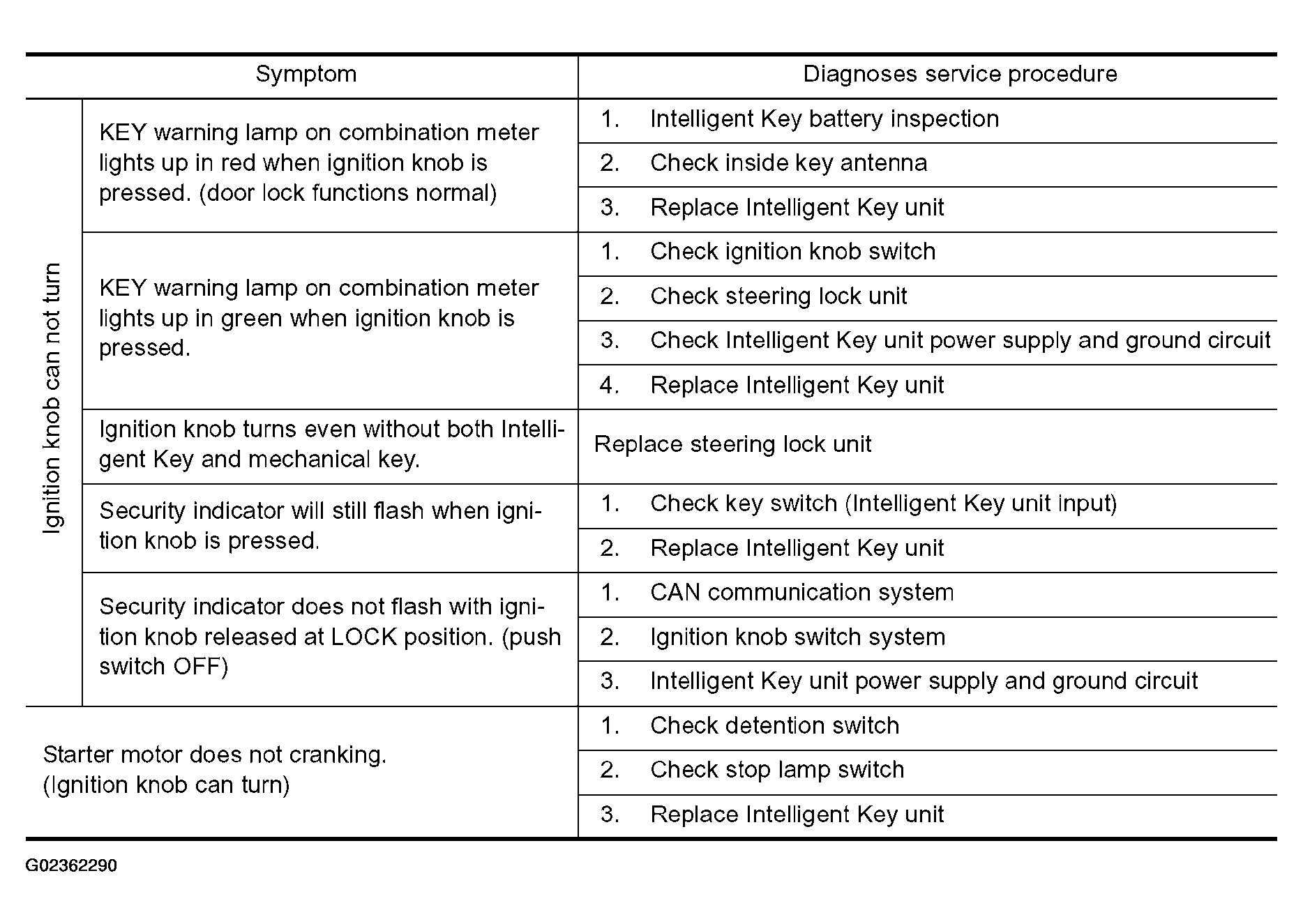

Fig 1: Engine Start Function Malfunction - Intelligent Key Operation Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
