Storage Lid Close Signal Circuit Check

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CHECK STORAGE LID CLOSE SIGNAL
1. Turn ignition switch ON.
2. Soft top operates in OPEN, check voltage between passenger seat control unit connector and ground.
Fig 1: Passenger Seat Control Unit Connector & Ground Specifications Table
Courtesy of NISSAN MOTOR CO., U.S.A.

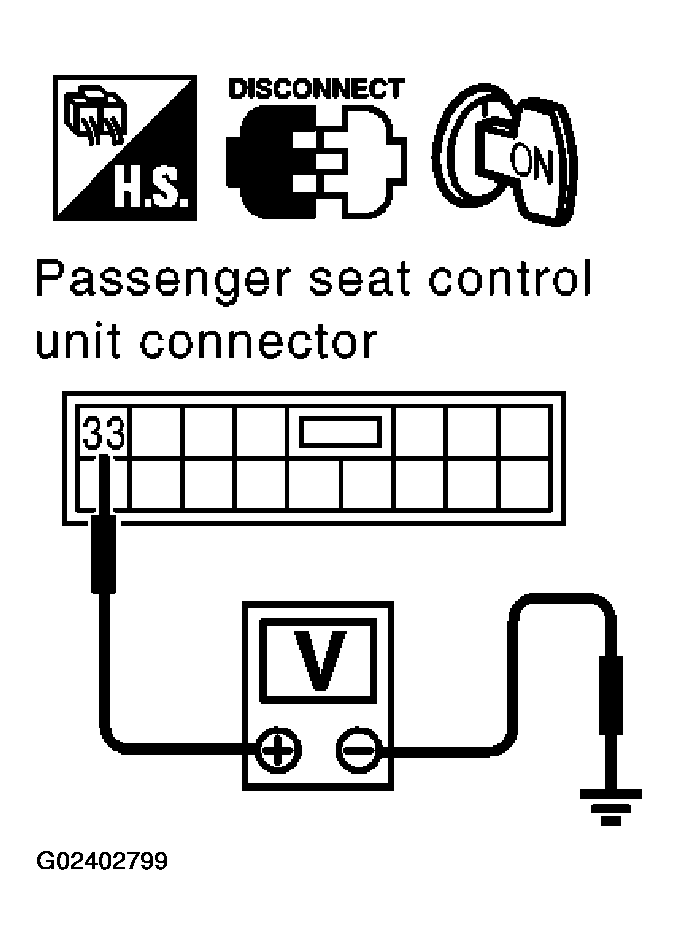

Fig 2: Passenger Seat Control Unit Connector & Ground Voltage Test
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK : Replace passenger seat control unit.
- NG : GO TO 2.
CHECK STORAGE LID CLOSE SIGNAL CIRCUIT HARNESS
1. Turn ignition switch OFF.
2. Disconnect soft top control unit and storage lid actuator and passenger seat control unit connector.
3. Check continuity between passenger seat control unit connector B353 terminal 33 and soft top control unit connector B66 terminal 13.
  - 33 (G/B) - 13 (L/R) : Continuity should exist.
4. Check continuity between passenger seat control unit connector B353 terminal 33 and ground.
  - 33 (G/B) - Ground : Continuity should not exist.
Fig 3: Passenger Seat Control Unit Connector B353 Terminal 33 & Ground Continuity Test
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK : Storage lid close signal circuit is OK. Further inspection is necessary. Refer to "STORAGE LID ACTUATOR CHECK (CLOSE OPERATE) ".
- NG : Repair or replace harness between passenger seat control unit and soft top control unit.
