Control Valve, TCM and A/T Fluid Temperature Sensor 2: Components

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

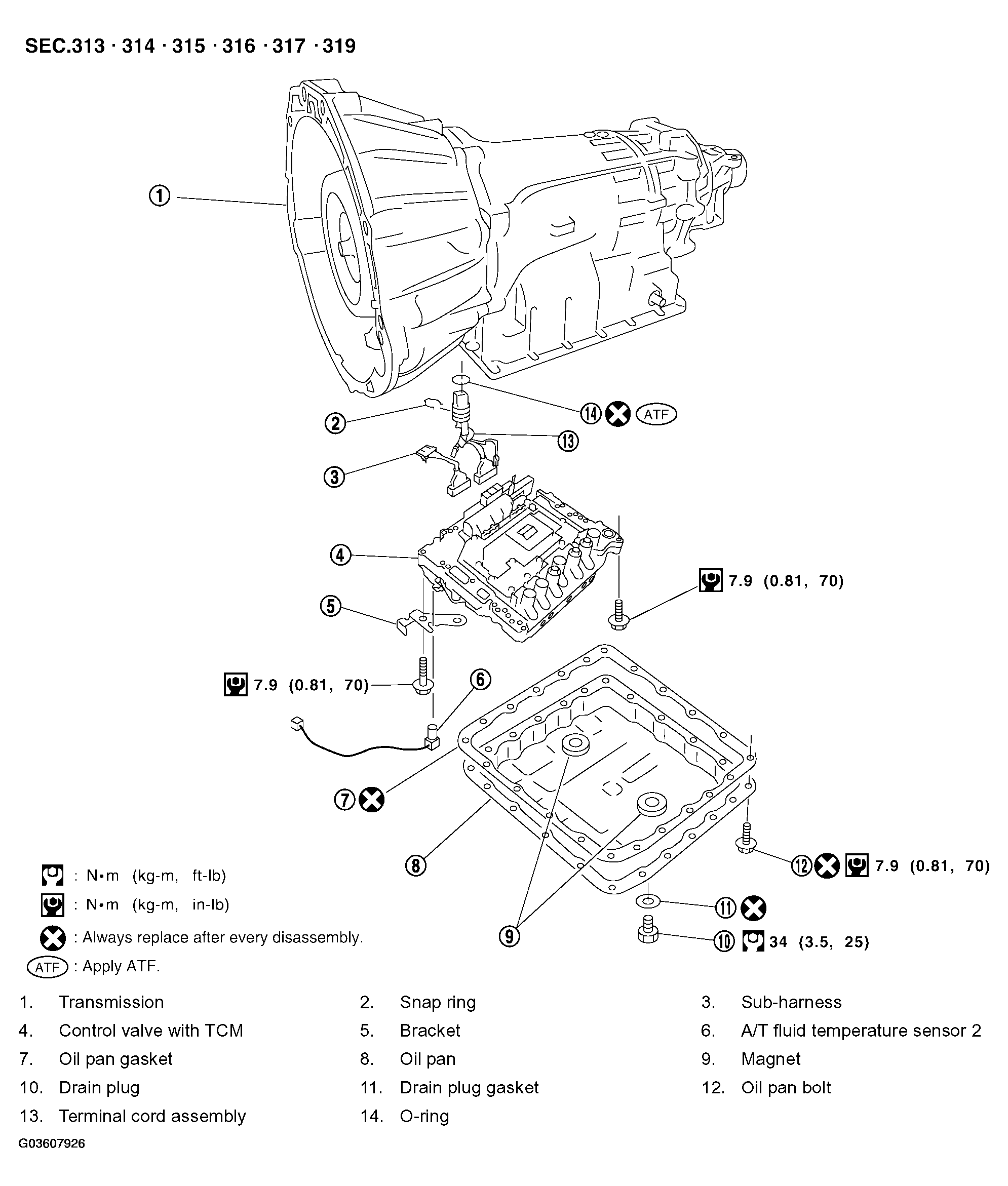

Fig 1: Control Valve With TCM And A/T Fluid Temperature Sensor 2 Replacement Components With Torque Specifications
G03607926Courtesy of NISSAN MOTOR CO., U.S.A.
