CONSULT-II Reference Value In Data Monitor Mode

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Specification data are reference values. See Fig 1 .

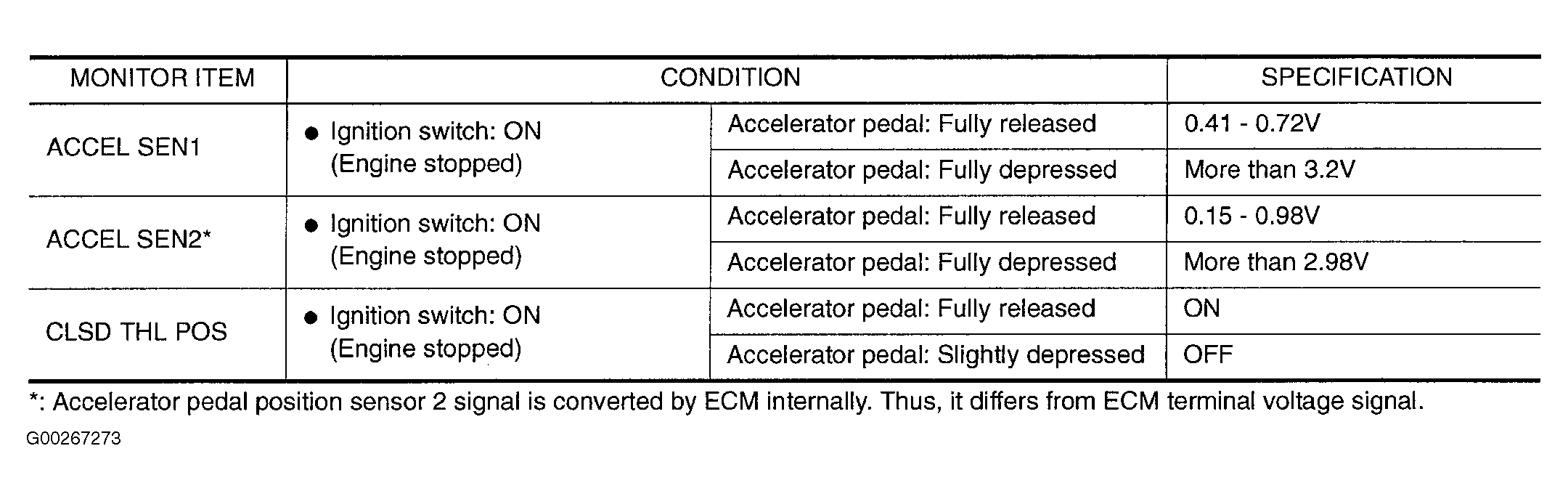

Fig 1: DTCs P0226, P0227, P0228, P1227 & P1228 Data Monitor Mode Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.
