Section 1940 (Emission Control): Canister: Components

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

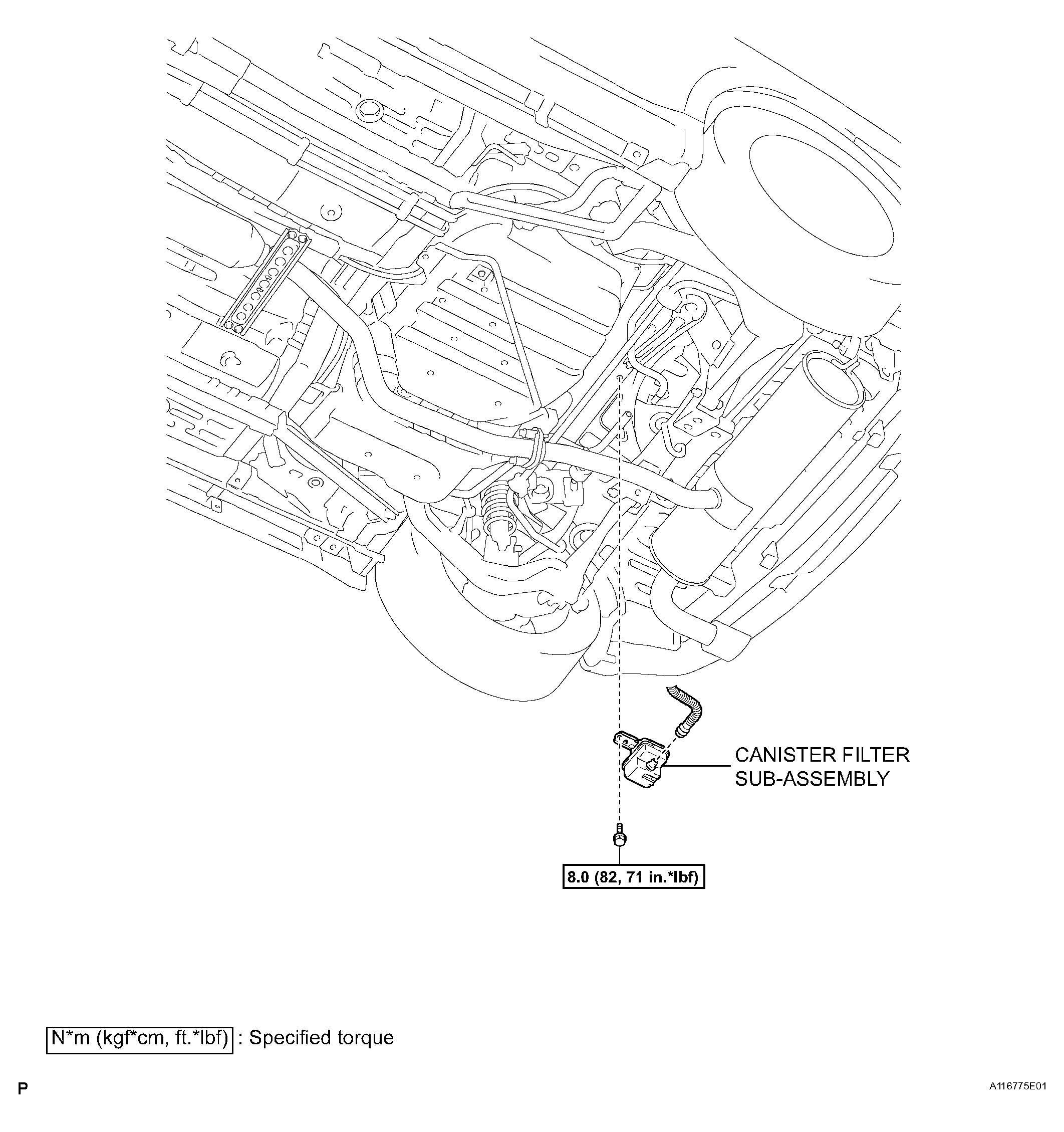

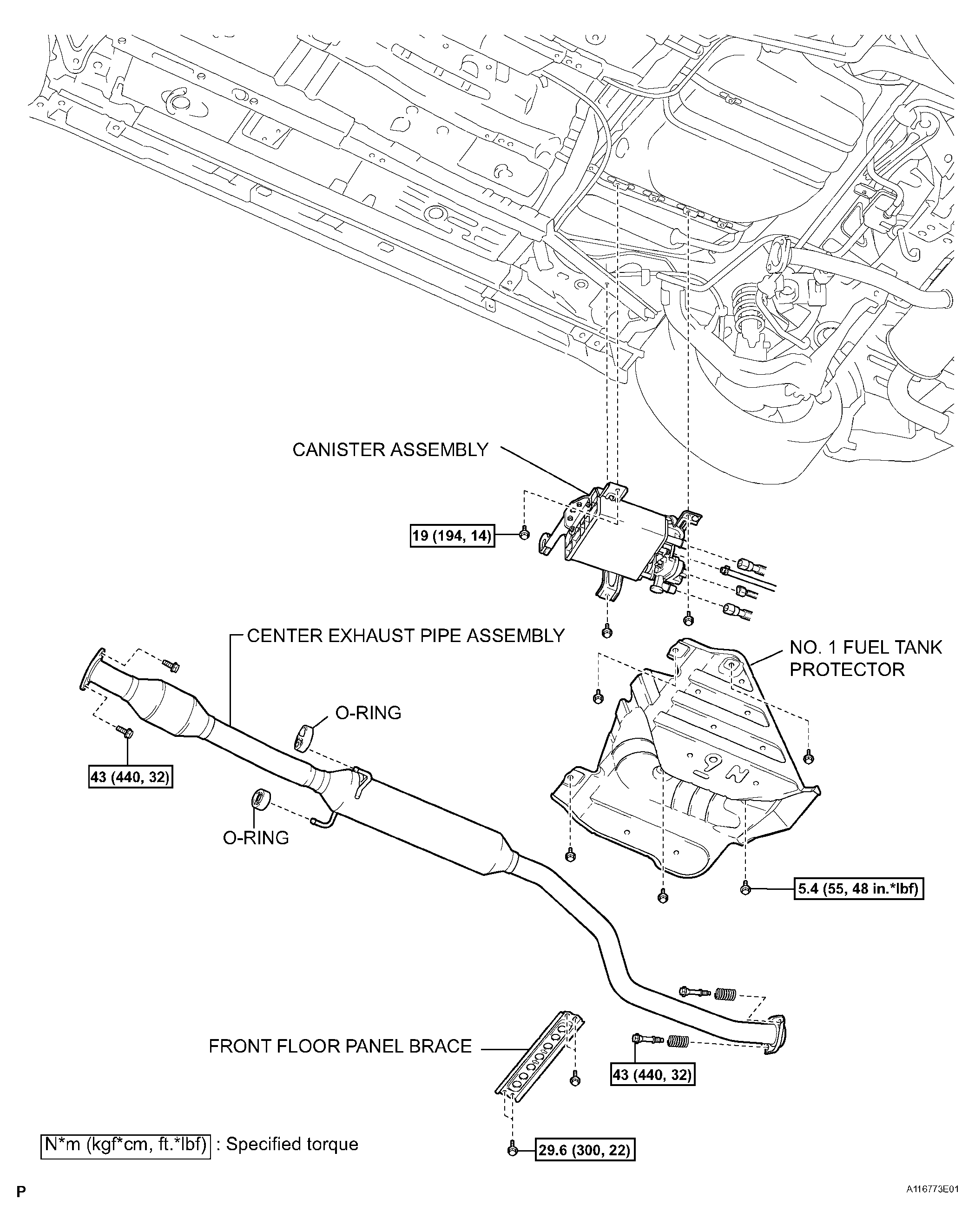

Fig 1: Canister And Replacement Components With Torque Specifications (1 Of 2)
