ASCD Wire Adjustment
WARNING: This page is about a different car, the 2004 Infiniti M45 and 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Be careful not to twist ASCD wire when removing it.
- Do not tense ASCD wire excessively during adjustment.

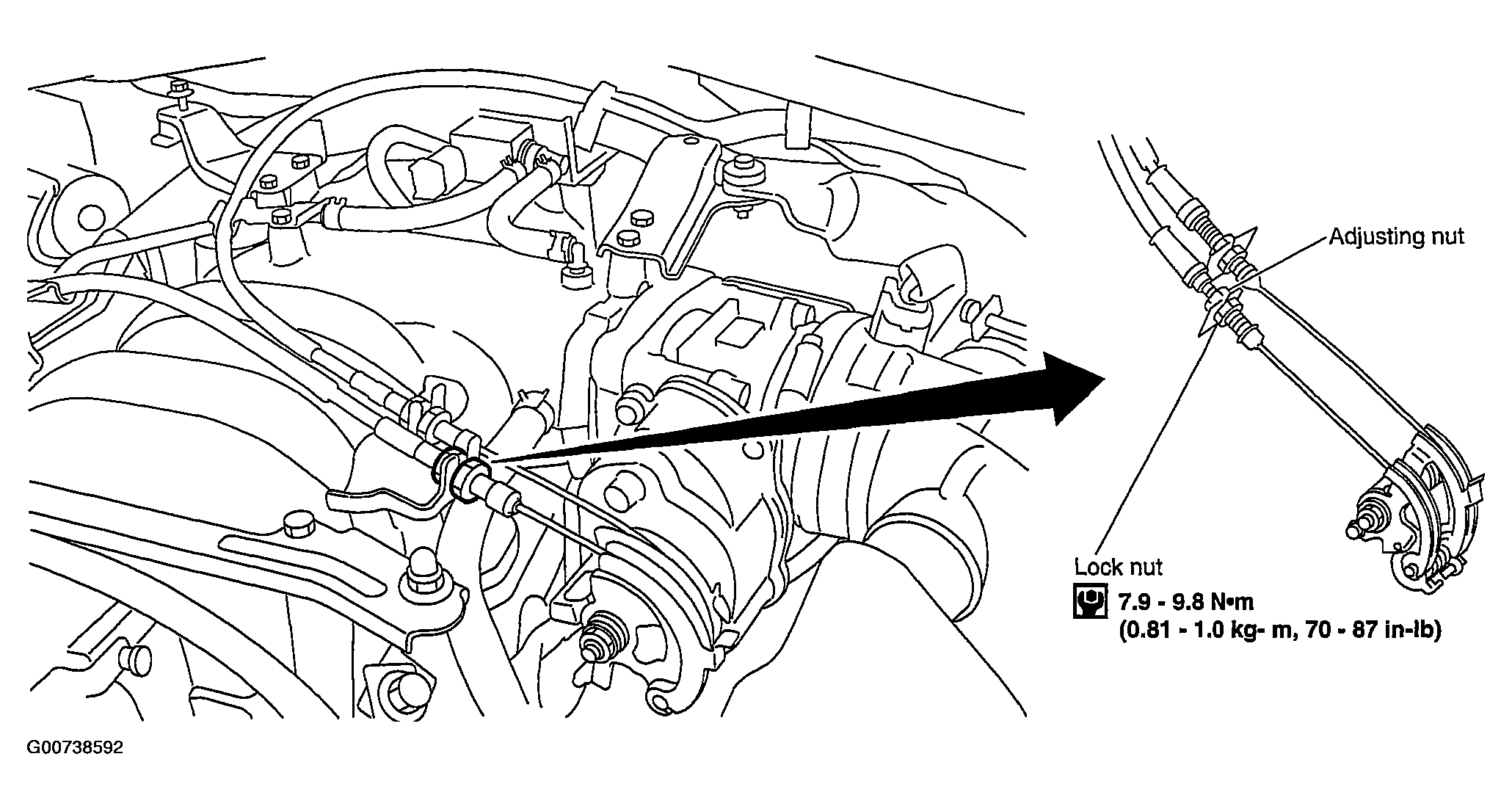

Adjust the tension of ASCD wire in the following manner.
- Loosen lock nut and adjusting nut.
- Make sure that accelerator wire is properly adjusted. Refer to ACCELERATOR CONTROL SYSTEM .
- Tighten adjusting nut just until throttle drum starts to move.
- Loosen adjusting nut again 1/2 to 1 turn.
- Tighten lock nut to specified torque holding the adjusting nut.
