Disassembly and Assembly: Assembly

Using Tool (drift), install the differential side bearing (transaxle case side) as shown.

Fig 1: Installing Differential Side Bearing (Transaxle Case Side)
Courtesy of NISSAN MOTOR CO., U.S.A.

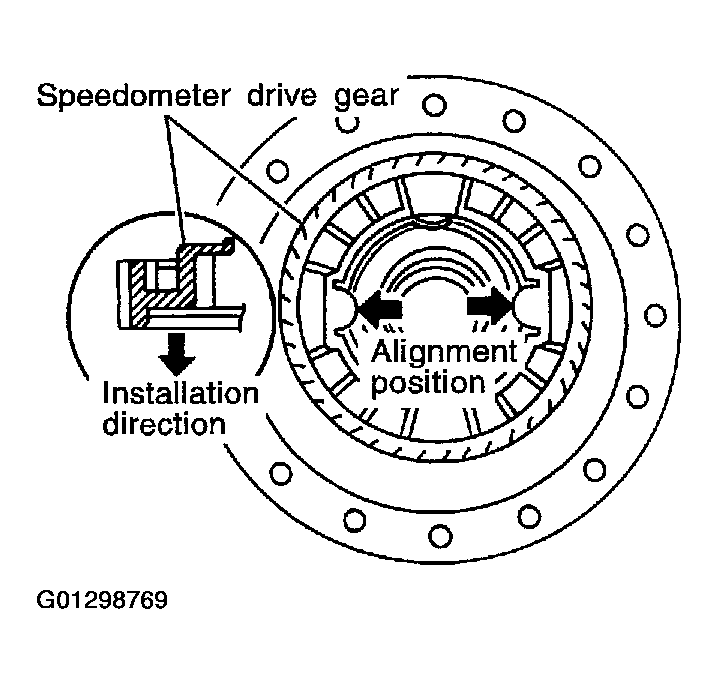

Align and install the speedometer drive gear onto the differential case as shown.

Fig 2: Aligning And Installing Speedometer Drive Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Using Tool (drift), install the differential side bearing (clutch housing side) as shown.

Fig 3: Installing Differential Side Bearing (Clutch Housing Side)
Courtesy of NISSAN MOTOR CO., U.S.A.

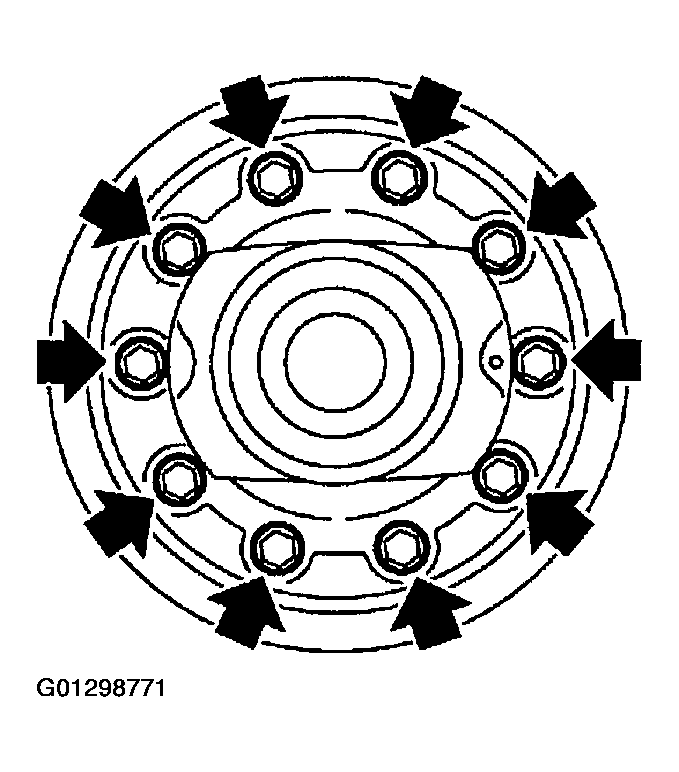

Install the final gear into the differential case, and tighten the final gear bolts to specification.
1. Final gear bolts: 112.7 - 127.4 N.m (11.5 - 12.9 kg-m, 84 - 93 ft-lb)
Fig 4: Identifying Final Gear Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
