Shift Control: Inspection: Notes
Check the contact surfaces and sliding area for wear, damage, or bending as shown. If necessary, replace the parts.

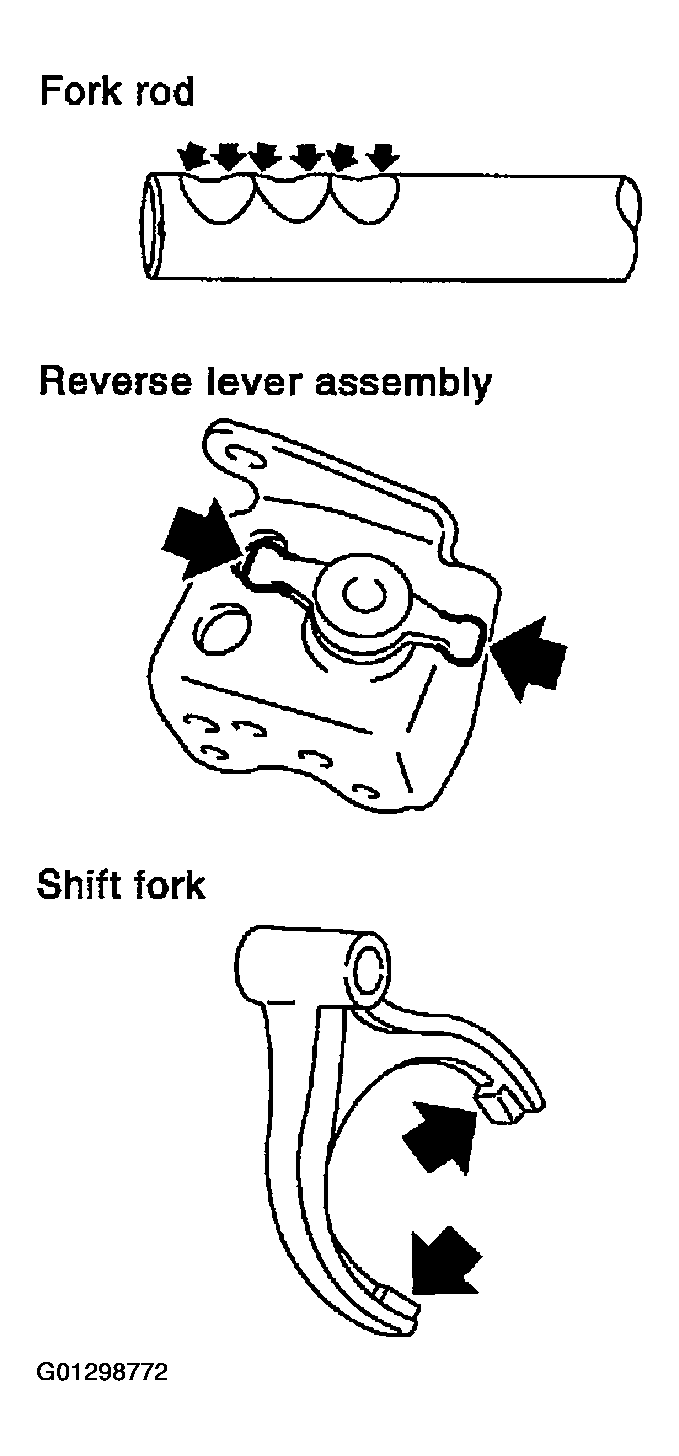

Fig 1: Identifying Shift Fork, Fork Rod And Reverse Lever Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
