Final Drive Components
Final Drive Components

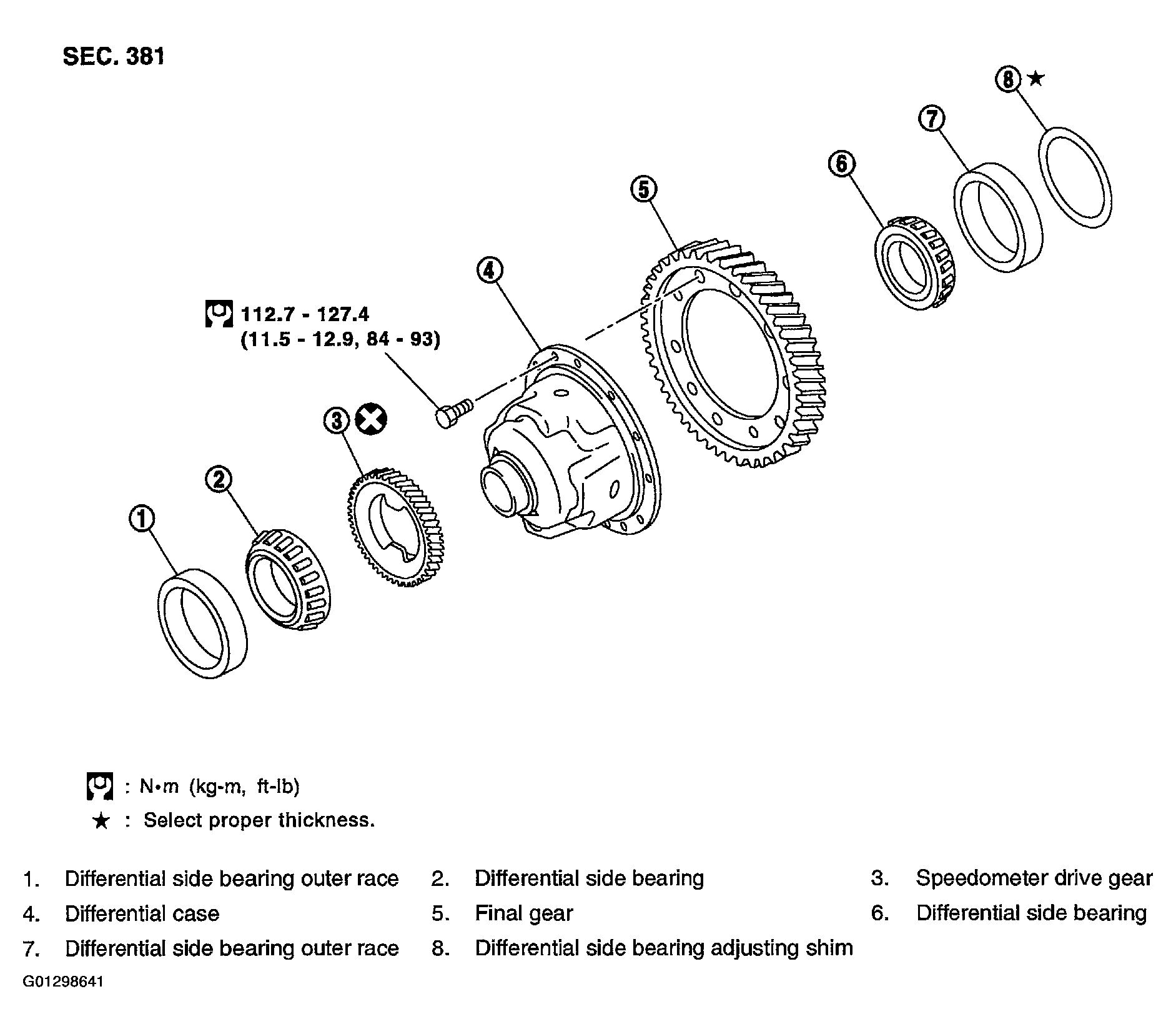

Fig 1: Identifying Final Drive Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
