Component Locations

COMPONENT LOCATIONS

Component	Location
Defogger Ground Cable	Right Side Of Back Window, See Fig 1
Defogger Relay	Behind Left Dash Garnish, See Fig 2
Defogger Switch	On Center Console, Next To Temperature Control, See Fig 3
Fuse Block (J/B)	Behind Left Side Of Dash, See Fig 4
Fuse & Fusible Link Box	Under Hood, Front Left Corner Next to Hood Switch, See Fig 5
Smart Entrance Control Unit	Behind Center Console, See Fig 6
Time Control Unit (Without Power Door Locks)	Behind Center Console, See Fig 7

Fig 1: Locating Defogger Ground Cable

G00199141

Courtesy of NISSAN MOTOR CO., U.S.A.

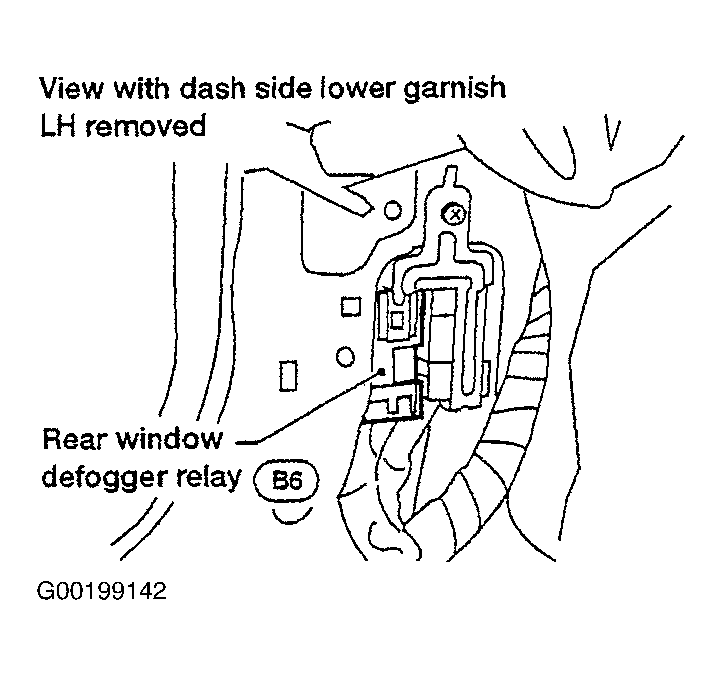

Fig 2: Locating Defogger Relay

G00199142

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Locating Defogger Switch

G00199143

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying & Locating Fuse Block (J/B) Fuses

G00199144

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Locating & Identifying Fuse & Fusible Link Box Fusses & Fusible Links

G00199145

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Locating Smart Entrance Control Unit (Without Power Door Locks)

G00199146

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Locating Time Control Unit (With Power Door Locks)

G00199147

Courtesy of NISSAN MOTOR CO., U.S.A.
