Power Door Lock: Schematic

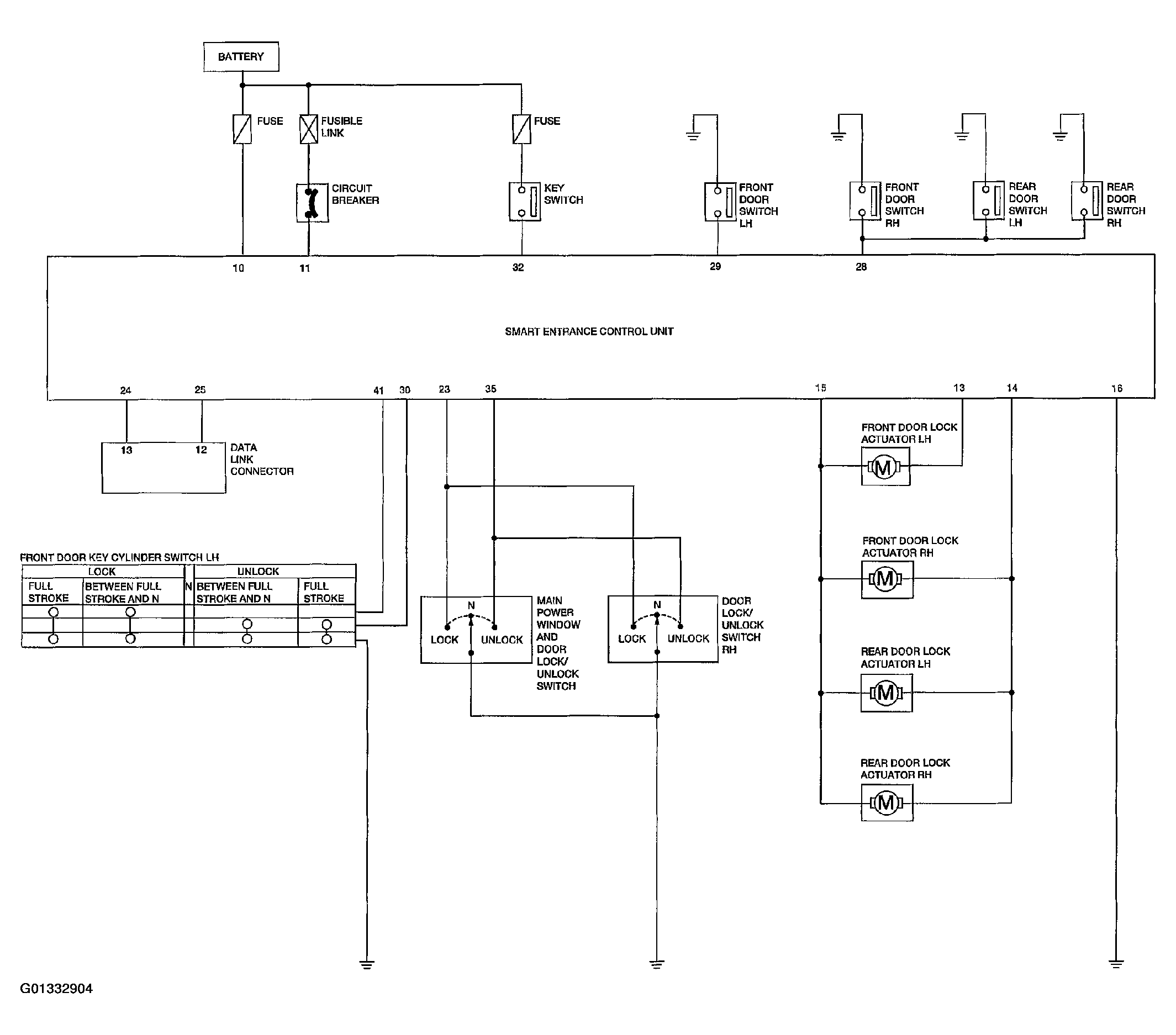

Fig 1: Power Door Lock Schematic Diagram

G01332904

Courtesy of NISSAN MOTOR CO., U.S.A.
