Fig. 2

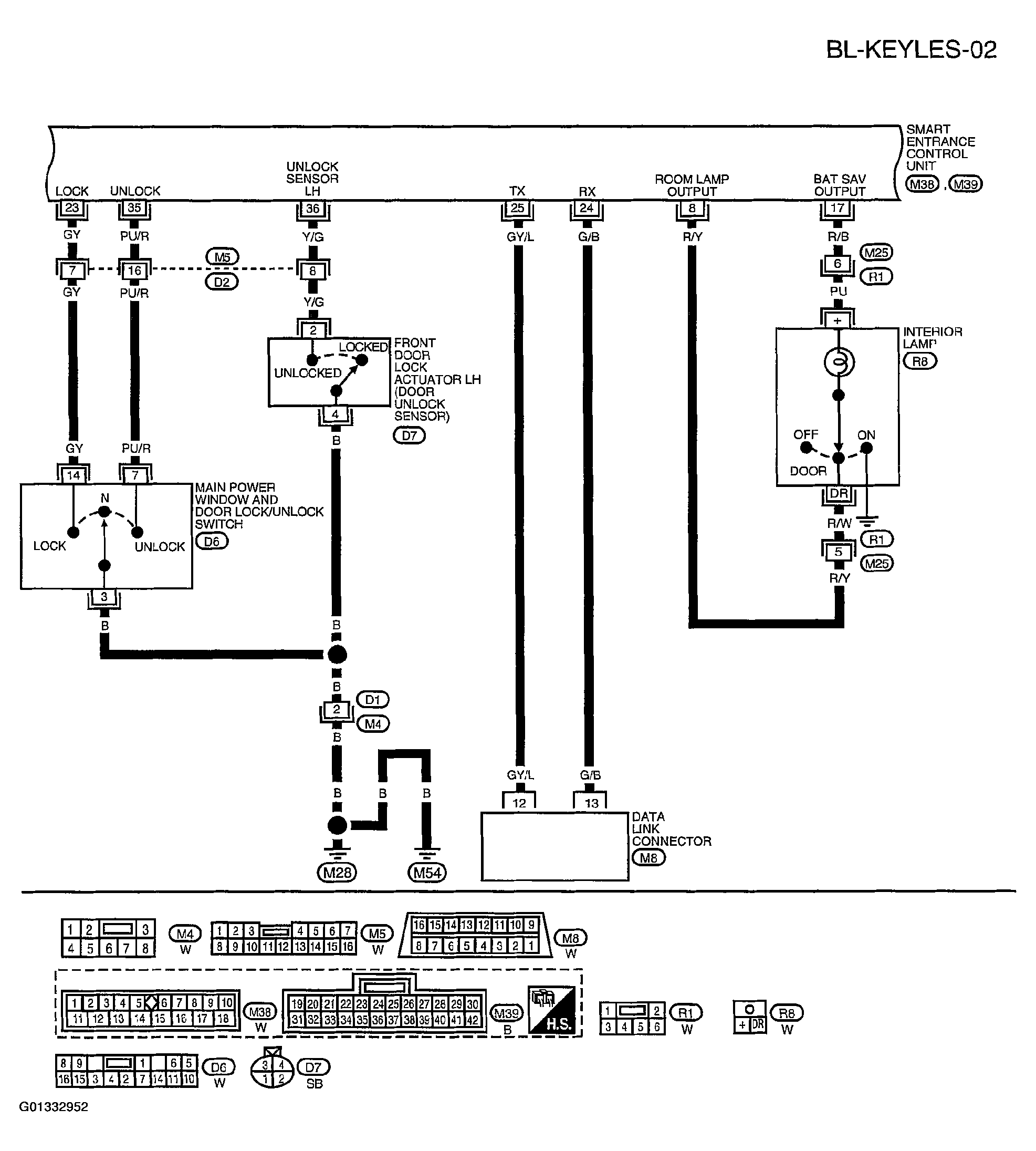

Fig 1: Remote Keyless Entry System Wiring Diagram And Identifying Connectors (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

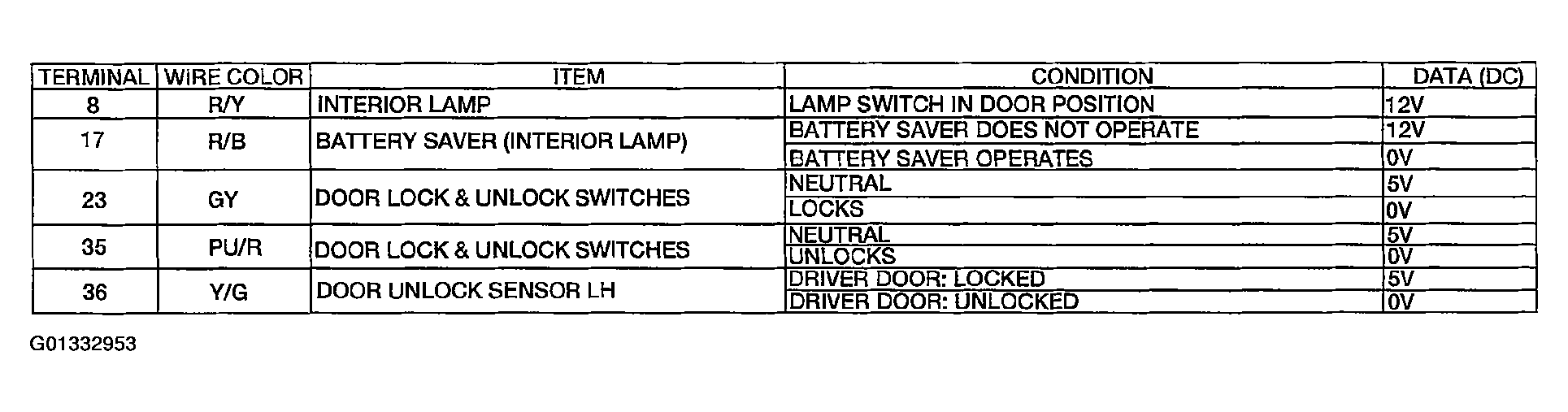

Fig 2: Smart Entrance Control Unit And Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
